- Page 1 BlueBox On-Chip Analyzer V2.0 User Manual...
- Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. iSYSTEM AG. All rights reserved.
-
Page 3: Table Of Contents
Contents iC5700 BlueBox Important safety notice ......................... 5 Package content ............................6 Specifications ............................7 Operation ..............................8 Device description ..........................................9 Connecting the iC5700 to the Target ................................. 11 Accessories ............................. 15 Declarations ............................18 User Notes .............................. 19... -
Page 4: Ic5700 Bluebox
More information isystem.com/sdk. iSYSTEM's solutions run under the Microsoft® Windows® operating system or optionally within the Eclipse environment through a plug-in. All our software can be downloaded from the Downloads page at http://www.isystem.com. -
Page 5: Important Safety Notice
Use included power cord and power supply - The enclosed power supply has been approved for use by iSYSTEM. Please contact iSYSTEM if you need to consider an alternative power. Use grounding wire - Prior to applying power to either the BlueBox or the target, connect the device and the target system together with the included grounding wire. -
Page 6: Package Content
Package content The standard iC5700 order is delivered with the following components: iC5700 Base Unit 25 cm 40-pin ribbon cable Power supply (with DTM) Ordering code: Ordering code: Ordering code: IC57000 IC50020-25 IC30000-PS USB 3.0 cable Ethernet cable Grounding wire... -
Page 7: Specifications
10 kOhm pull-down resistor TMS and TDI debug 10 kOhm pull-up resistor signals 1k Ohm pull-up resistor, buffer-driven to prevent current flow into an RESET unpowered iC5700 from a powered target board TAR_VREF (target 100 kOhm input impedance reference voltage) pin... -
Page 8: Operation
Operation Device overview iC5700 iC5700 with IOM6 Hub (optional) -
Page 9: Device Description

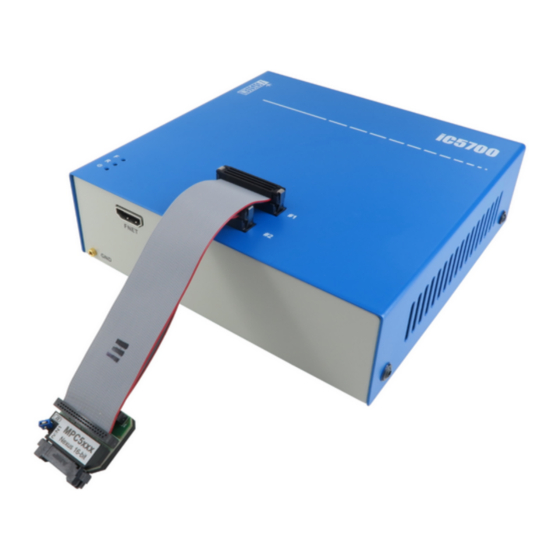

Device description The top face of the iC5700 features two key areas; the DTM connectors A and the indicator lights B. A – Debug Trace Module (DTM) provides two connectors, marked #1 and #2. These connectors are the interface to the target microcontroller. Depending on the target microcontroller debug features, the supplied ribbon-cables will need to be connected to either connector #1 only or connectors #1 and #2. - Page 10 Use only original iSYSTEM accessories for powering and connecting with the BlueBox unit. Consult with iSYSTEM before attempting to use any other accessory. iC5700 with IOM6 Hub (optional): I – Three additional FNet ports J – System port K – FBridge port (not Ethernet port!) provides synchronization between two iC5700 units.
-
Page 11: Connecting The Ic5700 To The Target
Target. When powering down the system, power off the target before powering off the BlueBox unit! FBridge port is not Ethernet port! Use only original iSYSTEM accessories for powering and connecting with the BlueBox unit. Consult with iSYSTEM before attempting to use any other accessory. - Page 12 Debug Adapter Depending on the Target microcontroller, iSYSTEM supplies one of two different types of connection system to link the BlueBox hardware with the Target microcontroller: Single 40-pin ribbon cable together with a debug adapter suited to the debug connector of ·...
- Page 13 To disconnect the ribbon cable, squeeze the two metal latches on the cable connector inwards and pull the connector gently from the socket. If the delivered ribbon cable does not meet your needs, iSYSTEM offers a range of alternative lengths. Please refer to the Accessories chapter for available ribbon cables.
- Page 14 FBridge port run/stop control of two iC5700 can be synchronized. 1m long FBridge (Ethernet alike) cable comes along the IOM6 HUB and connects to the FBridge port on each iC5700. If you ordered the IOM6 Hub to extend the operation of your previously bought iC5700, please refer to the IOM6 Hub installation guide that came with your IOM6 Hub package.
-
Page 15: Accessories
Accessories IOM6 product line The functionality can be extended through the use of various modules from IOM6 product line. This enables various capabilities from parallel debugging of multiple targets, monitoring of network traffic and monitoring and manipulation of analog and digital signals. Ordering Code Description IC57031... - Page 16 Power supplies and cables Ensure proper operation by using approved iSYSTEM power supplies and cables. Ordering Code Description IC30000-PS 19V Power Supply IC30000-PS-CAR12V 12V Car Power Supply BB-PSC-EU Power Supply Cord - EU Plug (type F Plug) BB-PSC-US Power Supply Cord - USA Plug (type B Plug)
- Page 17 Standard Debug Adapters Various debug adapters are available to connect the iC5700 to a wide range target debug connector as commonly found on microcontroller development boards. Ordering Code Description IC50111-1 20-pin 2.54mm ARM Debug Adapter IC50112 14-pin 2.54mm ARM Debug Adapter IC50113-AMP 20-pin 1.27mm AMP CoreSight Debug Adapter...
-
Page 18: Declarations
· Signed for and on behalf of: Schwabhausen, 21. March 2017 iSYSTEM AG f. Informatiksysteme - Carl-Zeiss-Str. 1 - 85247 Schwabhausen - USt-IdNr. DE128231221 Vorstand: Erol Simsek, Werner Fischer, Martin Gröstenberger - AG: München HRB 148751 - St-Nr.: 115/120/30027 Bank: Sparkasse Dachau BLZ 70051540 Account 904045 - IBAN: DE82700515400000904045 - BIC:... -
Page 19: User Notes
User Notes This page is intentionally left blank. - Page 20 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
