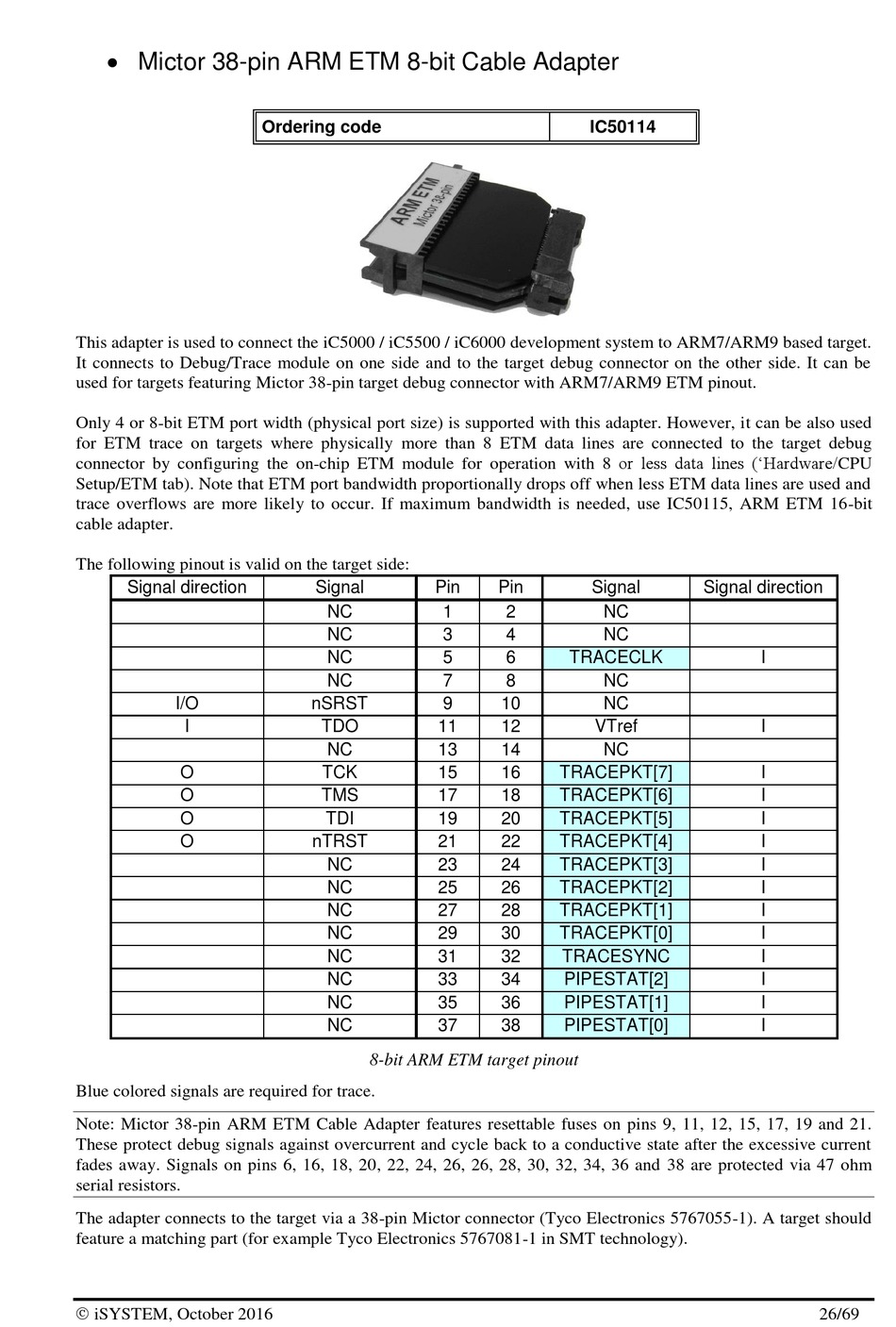

 Mictor 38-pin ARM ETM 8-bit Cable Adapter
This adapter is used to connect the iC5000 / iC5500 / iC6000 development system to ARM7/ARM9 based target.
It connects to Debug/Trace module on one side and to the target debug connector on the other side. It can be
used for targets featuring Mictor 38-pin target debug connector with ARM7/ARM9 ETM pinout.
Only 4 or 8-bit ETM port width (physical port size) is supported with this adapter. However, it can be also used
for ETM trace on targets where physically more than 8 ETM data lines are connected to the target debug
connector by configuring the on-chip ETM module for operation with 8 or less data lines ('Hardware/CPU
Setup/ETM tab). Note that ETM port bandwidth proportionally drops off when less ETM data lines are used and
trace overflows are more likely to occur. If maximum bandwidth is needed, use IC50115, ARM ETM 16-bit
cable adapter.
The following pinout is valid on the target side:
Signal direction
I/O
I
O
O
O
O
Blue colored signals are required for trace.
Note: Mictor 38-pin ARM ETM Cable Adapter features resettable fuses on pins 9, 11, 12, 15, 17, 19 and 21.
These protect debug signals against overcurrent and cycle back to a conductive state after the excessive current
fades away. Signals on pins 6, 16, 18, 20, 22, 24, 26, 26, 28, 30, 32, 34, 36 and 38 are protected via 47 ohm
serial resistors.
The adapter connects to the target via a 38-pin Mictor connector (Tyco Electronics 5767055-1). A target should
feature a matching part (for example Tyco Electronics 5767081-1 in SMT technology).
 iSYSTEM, October 2016
Ordering code
Signal
NC
NC
NC
NC
nSRST
TDO
NC
TCK
TMS
TDI
nTRST
NC
NC
NC
NC
NC
NC
NC
NC
8-bit ARM ETM target pinout
IC50114
Pin Pin Signal
1 2 NC
3 4 NC
5 6 TRACECLK
7 8 NC
9 10 NC
11 12 VTref
13 14 NC
15 16 TRACEPKT[7]
17 18 TRACEPKT[6]
19 20 TRACEPKT[5]
21 22 TRACEPKT[4]
23 24 TRACEPKT[3]
25 26 TRACEPKT[2]
27 28 TRACEPKT[1]
29 30 TRACEPKT[0]
31 32 TRACESYNC
33 34 PIPESTAT[2]
35 36 PIPESTAT[1]
37 38 PIPESTAT[0]
Signal direction
I
I
I
I
I
I
I
I
I
I
I
I
I
I
