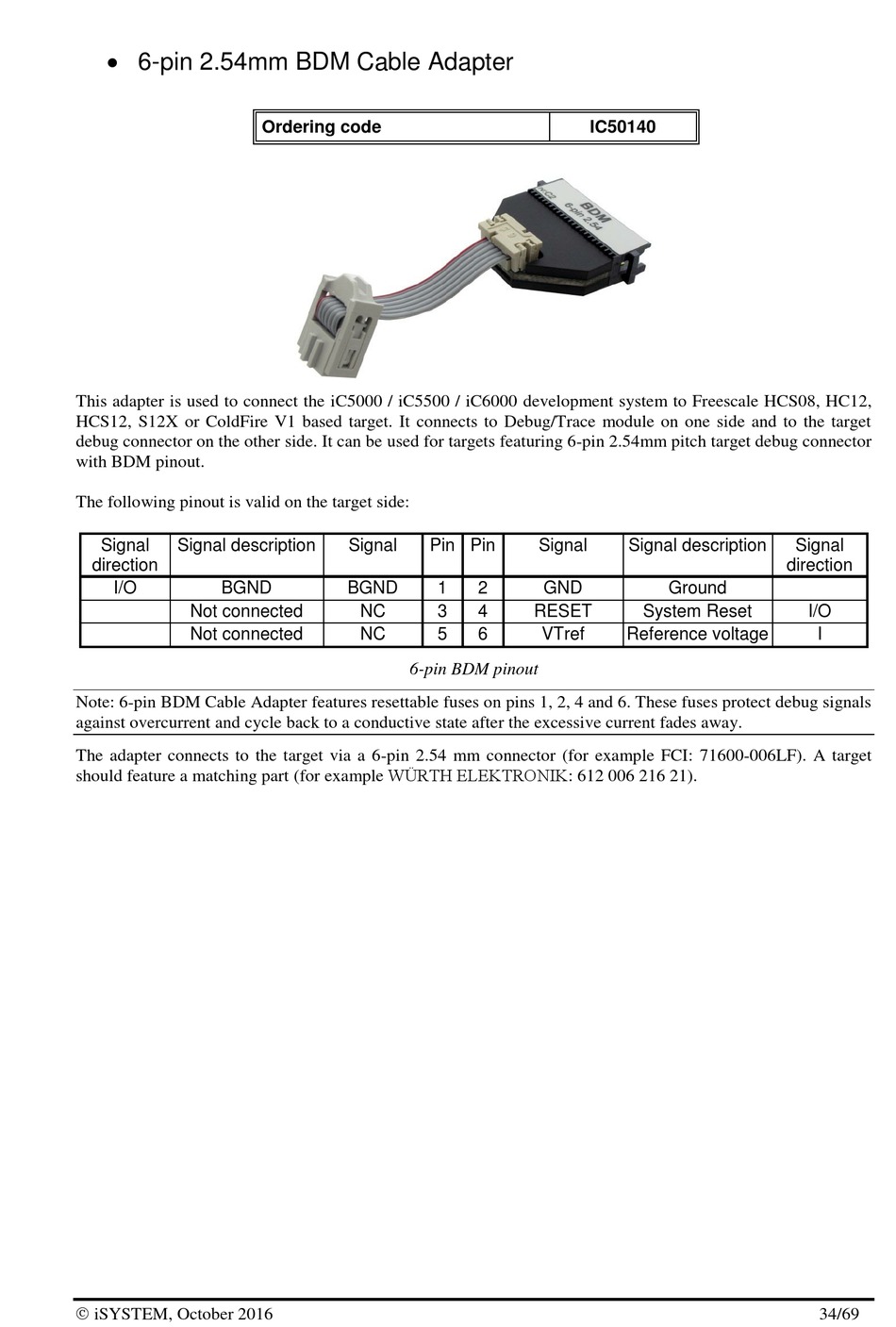

 6-pin 2.54mm BDM Cable Adapter
This adapter is used to connect the iC5000 / iC5500 / iC6000 development system to Freescale HCS08, HC12,
HCS12, S12X or ColdFire V1 based target. It connects to Debug/Trace module on one side and to the target
debug connector on the other side. It can be used for targets featuring 6-pin 2.54mm pitch target debug connector
with BDM pinout.
The following pinout is valid on the target side:
Signal Signal description
direction
I/O BGND
Not connected
Not connected
Note: 6-pin BDM Cable Adapter features resettable fuses on pins 1, 2, 4 and 6. These fuses protect debug signals
against overcurrent and cycle back to a conductive state after the excessive current fades away.
The adapter connects to the target via a 6-pin 2.54 mm connector (for example FCI: 71600-006LF). A target
should feature a matching part (for example WÜRTH ELEKTRONIK: 612 006 216 21).
 iSYSTEM, October 2016
Ordering code
Signal Pin Pin
BGND
NC
NC
6-pin BDM pinout
IC50140
Signal
1 2 GND
3 4 RESET
5 6 VTref
Signal description Signal
direction
Ground
System Reset
Reference voltage
I/O
I
