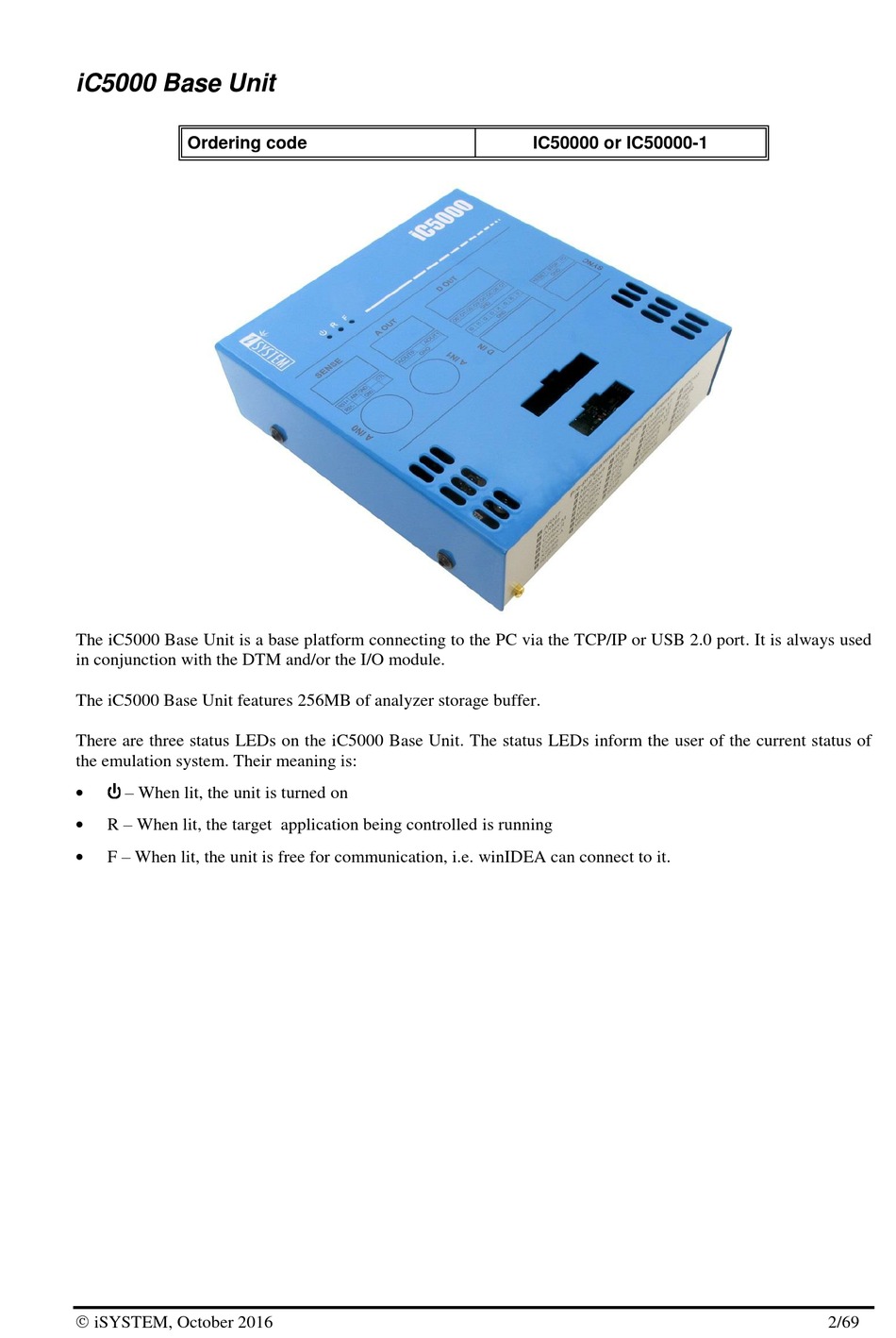

iSystem iC5000 Hardware Reference Manual page 2

iC5000 Base Unit
Ordering code
The iC5000 Base Unit is a base platform connecting to the PC via the TCP/IP or USB 2.0 port. It is always used
in conjunction with the DTM and/or the I/O module.
The iC5000 Base Unit features 256MB of analyzer storage buffer.
There are three status LEDs on the iC5000 Base Unit. The status LEDs inform the user of the current status of
the emulation system. Their meaning is:

– When lit, the unit is turned on

R – When lit, the target application being controlled is running

F – When lit, the unit is free for communication, i.e. winIDEA can connect to it.
 iSYSTEM, October 2016
IC50000 or IC50000-1
