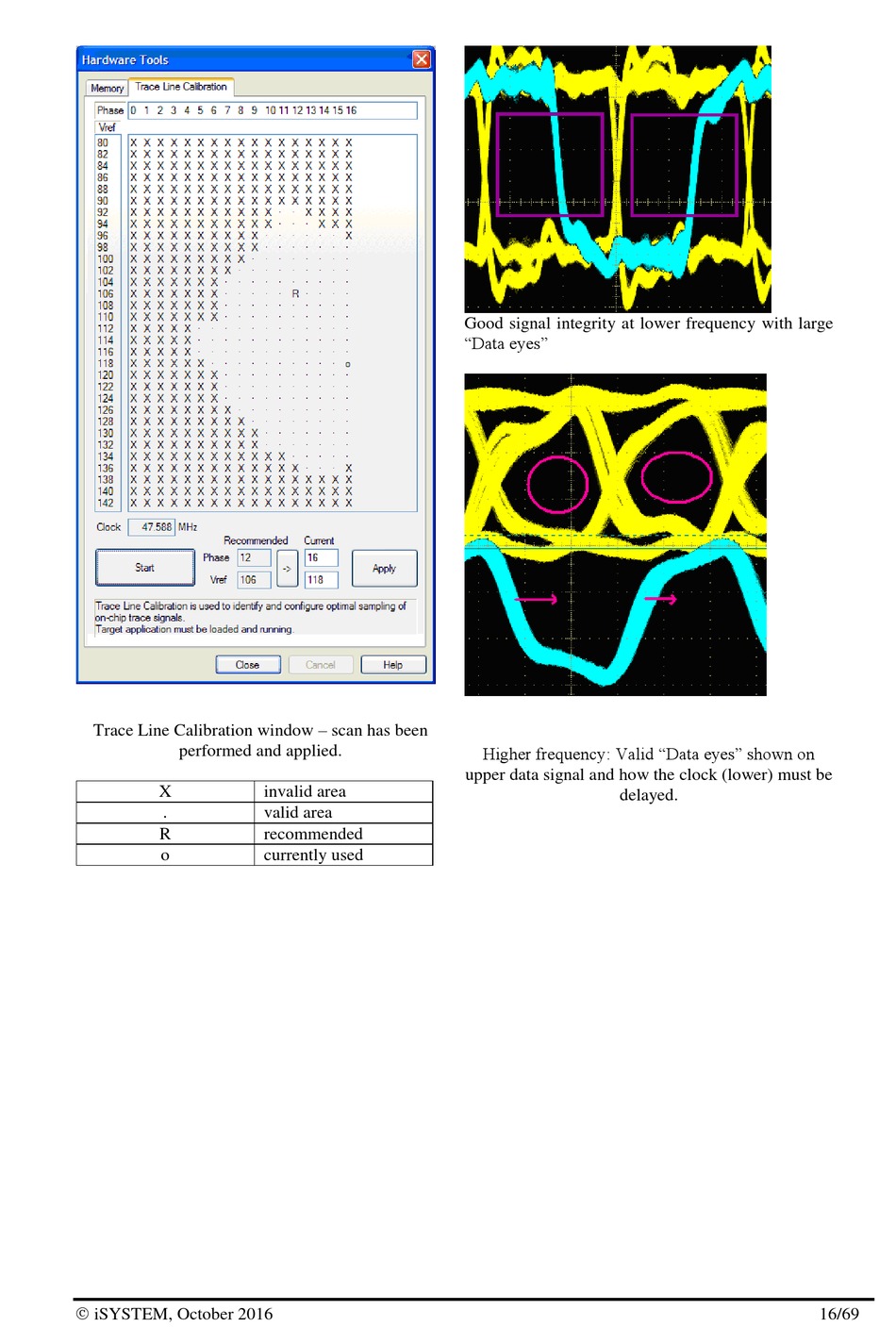

Trace Line Calibration window – scan has been
performed and applied.
X
.
R
o
iSYSTEM, October 2016
invalid area
valid area
recommended
currently used
Good signal integrity at lower frequency with large
"Data eyes"
Higher frequency: Valid "Data eyes" shown on
upper data signal and how the clock (lower) must be
delayed.
16/69
