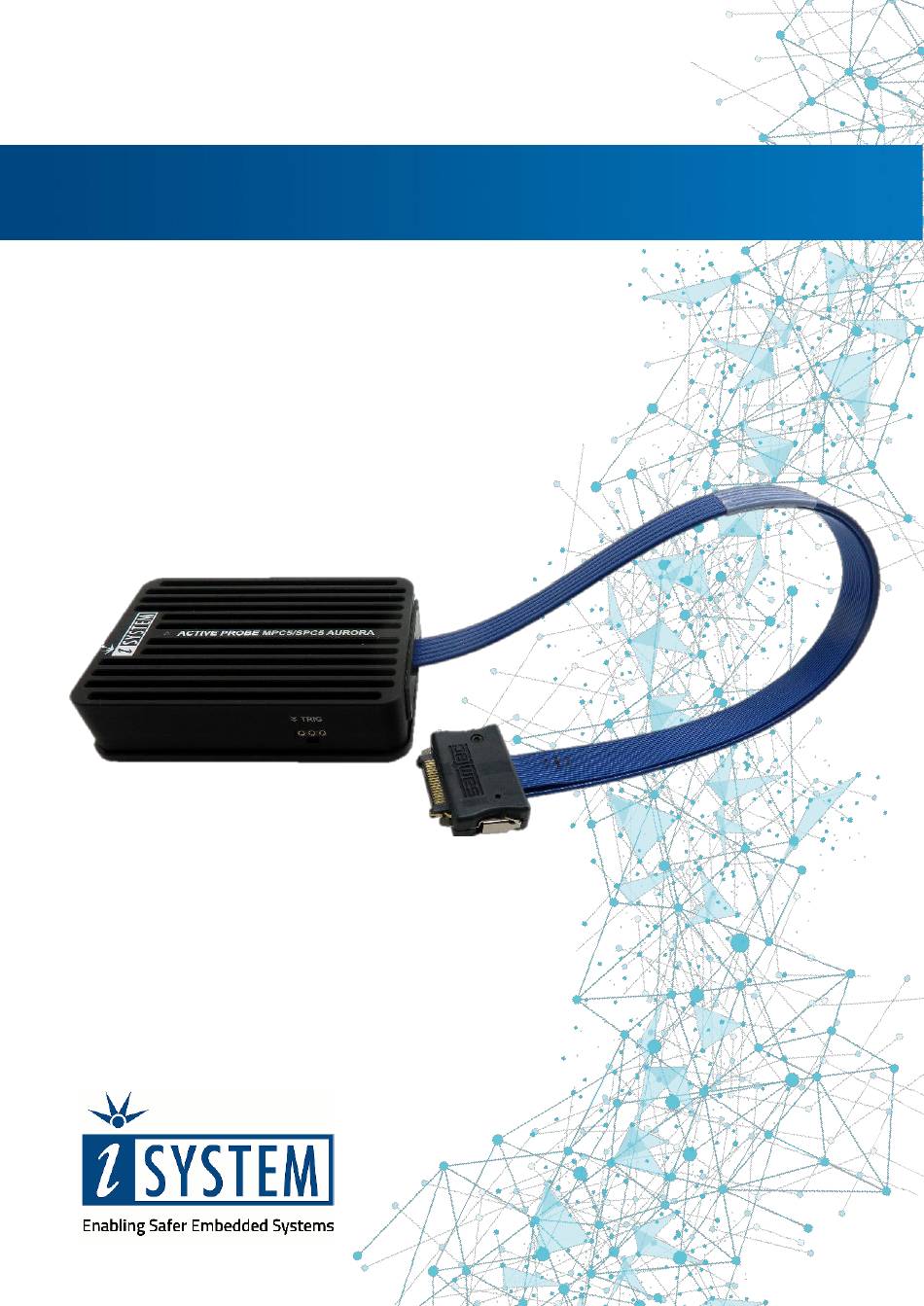

  • Page 1 MPC5x/SPC5x Aurora Active Probe V1.4 User Manual...
  • Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. Copyright © iSYSTEM AG.

  • Page 3: Table Of Contents

    Contents Introduction ..........................4 Important safety notice ....................... 5 Package content ........................... 6 Specifications ..........................7 Operation ............................. 8 Device overview ........................8 Device description ........................8 Target connector ......................... 9 14-pin 2.54mm JTAG Adapter ..................... 9 Active Probe and the iC5700 Connecting Guidelines ............. 10 Setting Debug Interface Voltage Levels .................

  • Page 4: Introduction

    Scripts can also be executed directly from within winIDEA, thereby allowing the developer to extend its functionality. iSYSTEM's solutions run under the Microsoft® Windows® operating system or optionally within the Eclipse environment through a plug-in. All our software can be downloaded from the...

  • Page 5: Important Safety Notice

    Use this instrument only for its intended purpose as specified by this manual to prevent potential hazards. Use included power cord and power supply The enclosed power supply has been approved for use by iSYSTEM. Please contact iSYSTEM if you need to consider an alternative power. Use grounding wire Prior to applying power to either the BlueBox or the target, connect the device and the target system together with the included grounding wire.

  • Page 6: Package Content

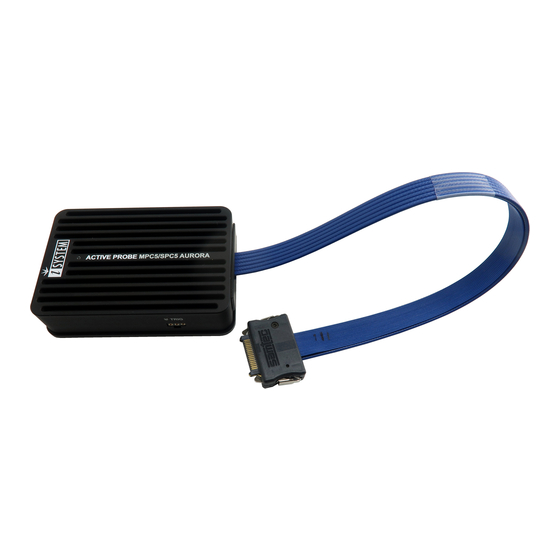

    Package content The MPC5x/SPC5x Aurora Active Probe (ordering code IC57150) is delivered with the following components: Infineon AGBT 1 m FNET Cable User manual Active Probe Ordering code: BB-FNET- Ordering code: IC57150...

  • Page 7: Specifications

    Size 80 x 55 x 18 mm Weight 0.125 kg OPERATION Communication interface to BlueBox iSYSTEM proprietary FNET Debug signal valid input voltage range 3.3V (max. 3.6V) Power consumption Max. 3W (dependent on operation mode) Number of supported AGBT lanes...

  • Page 8: Operation

    Operation Device overview Device description • A – 34-pin ERF8 MPC5xxx/SPC5 target pinout Signal direction Signal Pin Pin Signal Signal direction AGBT TX_P0 VREF AGBT TX_N0 Ground AGBT TX_P1 AGBT TX_N1 Ground ~JCOMP AGBT TX_P2 Not Connected AGBT TX_N2 ~EVTI0 O (not used) Ground ~EVTO0...

  • Page 9: Target Connector

    Use only original iSYSTEM accessories for powering and connecting with the iC5700. Consult with iSYSTEM before attempting to use any other accessory. Target connector The target should feature a matching part, for example, Samtec part number: ASP-137973-01.

  • Page 10: Active Probe And The Ic5700 Connecting Guidelines

    If a cable longer than 1.0m is required (for example when debugging an ECU in a vehicle or a confined space), optional 3m and 5m FNET cables are available from iSYSTEM. Although it looks similar to the HDMI interface, the FNET Port is not compatible with HDMI or any HDMI accessories.

  • Page 11: Setting Debug Interface Voltage Levels

    Setting Debug Interface Voltage Levels The voltage levels for the debug interface are configured within winIDEA via the menu option Hardware menu/Emulation Options/Hardware as shown below. Further Active Probe Settings This section describes winIDEA settings distinct to the MPC5x/SPC5x Active Probe. Alternatively, the iC5700 is capable of connecting to MPC5xxx and SPC5 target devices through its installed DTM module and an appropriate cable adapter (IC50150 or IC50152).
  • Page 13 In the Hardware menu/Emulation Options dialog/Probe tab the Active Probe option must be selected. Click Refresh and select the displayed AP Aurora MPC. The lowest Aurora link speed which ensures the most likely working trace operation is set by default. Note that this setting directly impacts on Aurora trace interface bandwidth. The higher the speed, more trace information per time unit can be broadcasted over the interface.

  • Page 14: Accessories

    Ordering Code Description BB-FNET-100 1.0m FNET Cable BB-FNET-300 3.0m FNET Cable BB-FNET-500 5.0m FNET Cable IASAM34MPCPIN14 14-pin 2.54 mm JTAG Adapter Please refer to the iC5700 User Manual for all current iC5700 accessories. Find more information on www.isystem.com or contact sales@isystem.com...

  • Page 15: Technical Support

    Technical support To reach for technical support please visit www.isystem.com/support.
  • Page 16 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
