- Page 1 DAP over CAN V1.3 User Manual...
- Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. iSYSTEM AG. All rights reserved.
-
Page 3: Table Of Contents
Contents DAP over CAN Package content ............................5 Operation ..............................6 winIDEA Configuration ........................................8 Accessories ............................... 9 User Notes .............................. 10... -
Page 4: Dap Over Can

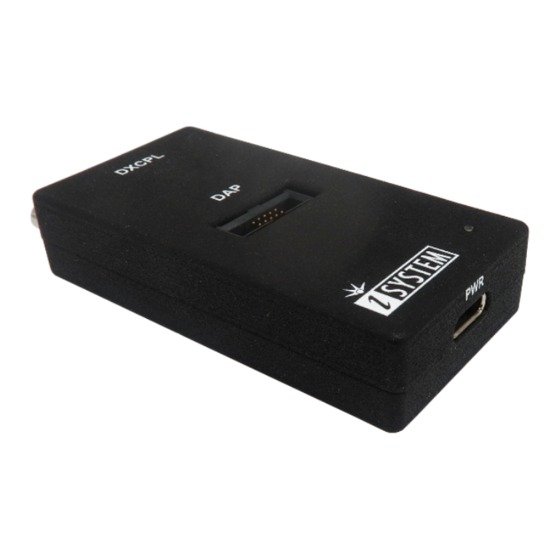

ECU connector without opening its housing. This connection is electrically robust due to the nature of the CAN bus. The DXCPL Converter translates Infineon AURIX™ SPD (Single Pin DAP) encoded DAP messages to the CAN bus physical layer. iSYSTEM hardware solution supports DXCPL on Infineon AURIX™ TC2xx and TC3xx devices. -
Page 5: Package Content
Package content The DAP over CAN Physical Layer Converter is delivered with the following components: DAP over CAN USB-C cable User Manual Physical Layer Converter Ordering code: IEA-DXCPL... -
Page 6: Operation
Operation Device overview Device description A – DAP connector Pinout valid on the DAP connector side: Signal Signal Signal Signal Signal Signal Description Direction Direction Description Reference Vref Transmitter voltage Ground Not Connected Ground Receiver Not Connected Connected Ground Not Connected DAP connector pinout Signal Direction is described from the BlueBox perspective. - Page 7 D – Power supply connection for the Converter. Use provided USB-C cable to power the converter e.g. from a PC. CAN 120 Ohm terminating resistor is not implemented on the DAP over CAN Physical Layer Converter. iSYSTEM provides cable solutions on request with build in terminating resistor, which...
-
Page 8: Winidea Configuration
Configuration After connecting the hardware follow the steps below to configure the DAP over CAN Physical Layer Converter in winIDEA: 1. Open Hardware menu / CPU Options. 2. Navigate to the SoC page. 3. Select DXCPL from the Debug channel Mode drop-down. -
Page 9: Accessories
BB-FNETMICRO-100 1.0m FNet Micro Cable (Active Probe) Please refer to the iC5700 BlueBox for all current iC5700 Accessories. The functionality of the DAP over CAN Physical Layer Converter can be extended through the use of various accessories. Ordering Code Description... -
Page 10: User Notes
User Notes This page is intentionally left blank. - Page 11 This page is intentionally left blank.
- Page 12 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
