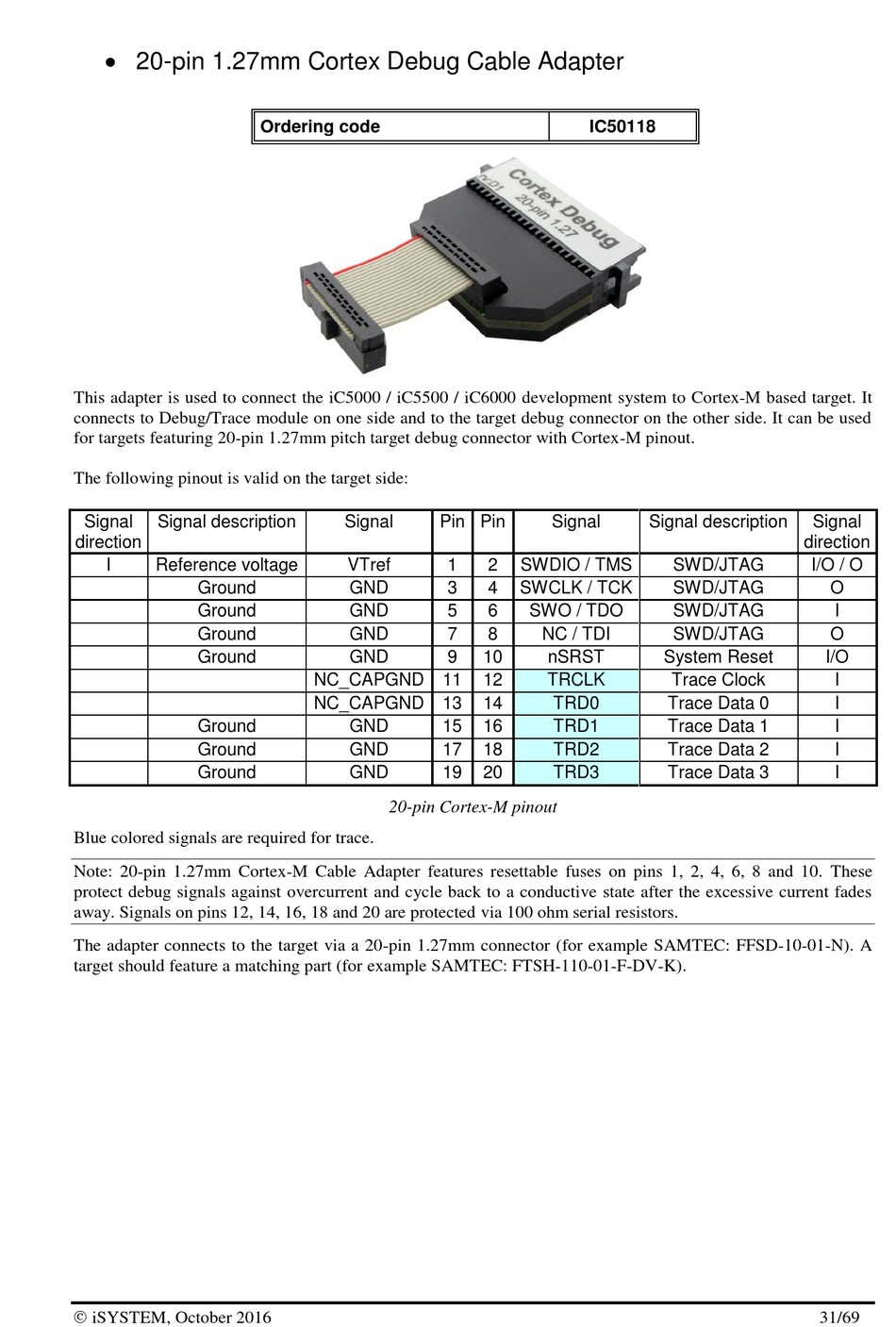

 20-pin 1.27mm Cortex Debug Cable Adapter
This adapter is used to connect the iC5000 / iC5500 / iC6000 development system to Cortex-M based target. It
connects to Debug/Trace module on one side and to the target debug connector on the other side. It can be used
for targets featuring 20-pin 1.27mm pitch target debug connector with Cortex-M pinout.
The following pinout is valid on the target side:
Signal Signal description
direction
I Reference voltage
Ground
Ground
Ground
Ground
Ground
Ground
Ground
Blue colored signals are required for trace.
Note: 20-pin 1.27mm Cortex-M Cable Adapter features resettable fuses on pins 1, 2, 4, 6, 8 and 10. These
protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades
away. Signals on pins 12, 14, 16, 18 and 20 are protected via 100 ohm serial resistors.
The adapter connects to the target via a 20-pin 1.27mm connector (for example SAMTEC: FFSD-10-01-N). A
target should feature a matching part (for example SAMTEC: FTSH-110-01-F-DV-K).
 iSYSTEM, October 2016
Ordering code
Signal
VTref
GND
GND
GND
GND
NC_CAPGND
NC_CAPGND
GND
GND
GND
20-pin Cortex-M pinout
IC50118
Pin Pin Signal
1 2 SWDIO / TMS
3 4 SWCLK / TCK
5 6 SWO / TDO
7 8 NC / TDI
9 10 nSRST
11 12 TRCLK
13 14 TRD0
15 16 TRD1
17 18 TRD2
19 20 TRD3
Signal description Signal
direction
SWD/JTAG I/O / O
SWD/JTAG
SWD/JTAG
SWD/JTAG
System Reset
Trace Clock
Trace Data 0
Trace Data 1
Trace Data 2
Trace Data 3
31/69
O
I
O
I/O
I
I
I
I
I
