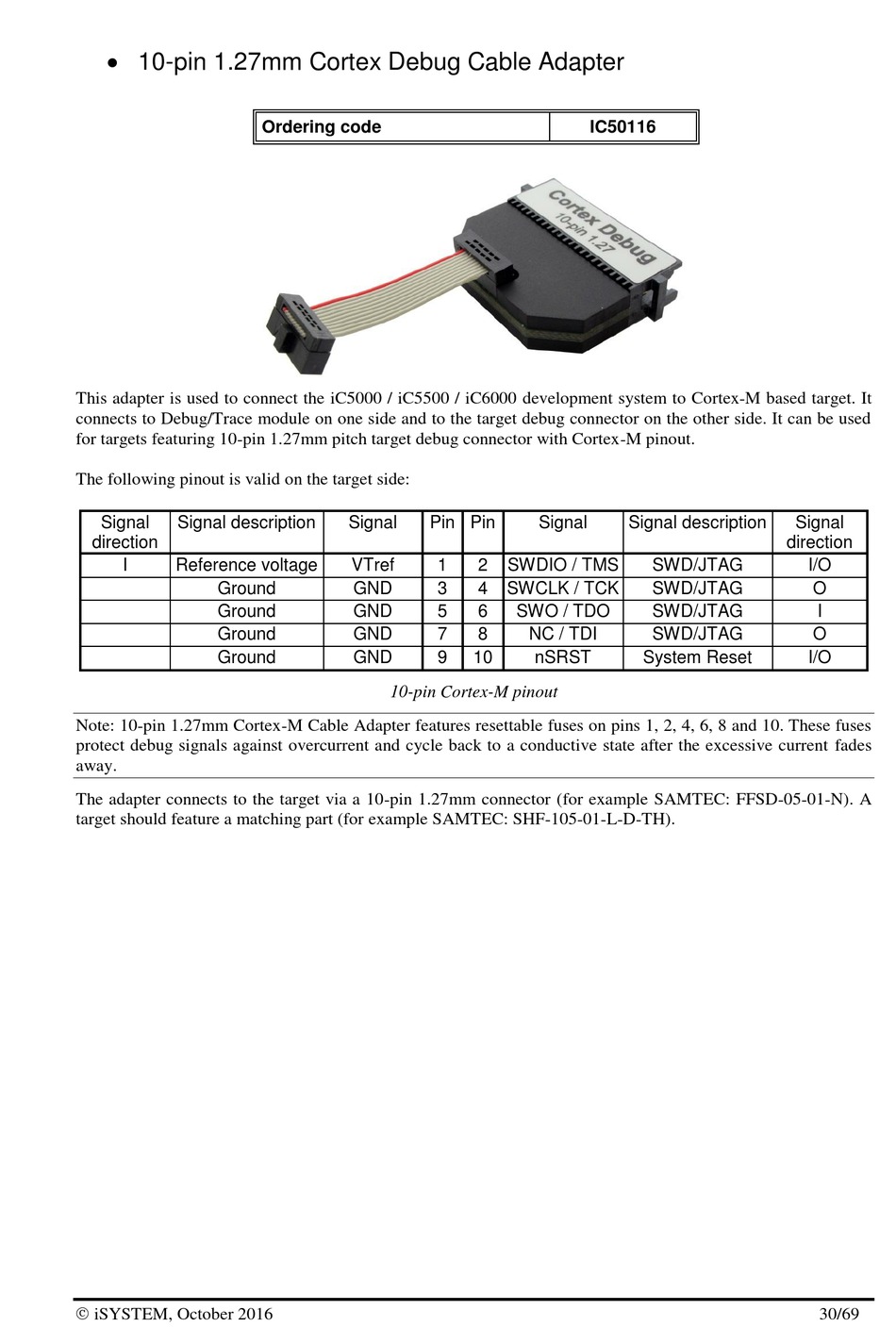

 10-pin 1.27mm Cortex Debug Cable Adapter
This adapter is used to connect the iC5000 / iC5500 / iC6000 development system to Cortex-M based target. It
connects to Debug/Trace module on one side and to the target debug connector on the other side. It can be used
for targets featuring 10-pin 1.27mm pitch target debug connector with Cortex-M pinout.
The following pinout is valid on the target side:
Signal Signal description
direction
I Reference voltage
Ground
Ground
Ground
Ground
Note: 10-pin 1.27mm Cortex-M Cable Adapter features resettable fuses on pins 1, 2, 4, 6, 8 and 10. These fuses
protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades
away.
The adapter connects to the target via a 10-pin 1.27mm connector (for example SAMTEC: FFSD-05-01-N). A
target should feature a matching part (for example SAMTEC: SHF-105-01-L-D-TH).
 iSYSTEM, October 2016
Ordering code
Signal Pin Pin
VTref
GND
GND
GND
GND
10-pin Cortex-M pinout
IC50116
Signal
1 2

SWDIO / TMS

3 4 SWCLK / TCK
5 6 SWO / TDO
7 8

NC / TDI

9 10 nSRST
Signal description Signal
direction
SWD/JTAG
SWD/JTAG
SWD/JTAG
SWD/JTAG
System Reset
I/O
O
I
O
I/O
