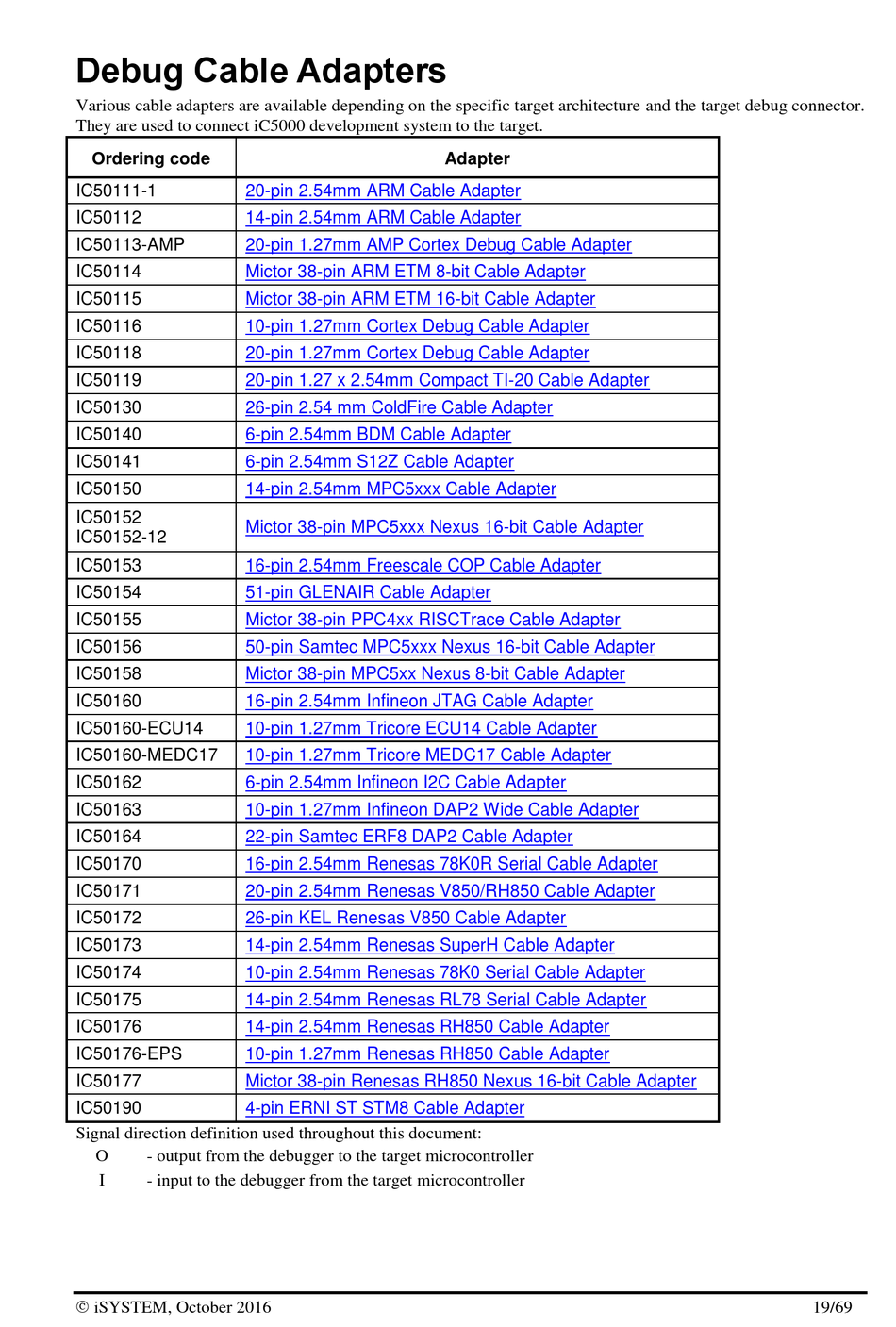

Debug Cable Adapters
Various cable adapters are available depending on the specific target architecture and the target debug connector.
They are used to connect iC5000 development system to the target.
Ordering code
IC50111-1
IC50112
IC50113-AMP
IC50114
IC50115
IC50116
IC50118
IC50119
IC50130
IC50140
IC50141
IC50150
IC50152
IC50152-12
IC50153
IC50154
IC50155
IC50156
IC50158
IC50160
IC50160-ECU14
IC50160-MEDC17
IC50162
IC50163
IC50164
IC50170
IC50171
IC50172
IC50173
IC50174
IC50175
IC50176
IC50176-EPS
IC50177
IC50190
Signal direction definition used throughout this document:
O - output from the debugger to the target microcontroller
I - input to the debugger from the target microcontroller
