iSystem iC5000 Hardware Reference Manual page 33

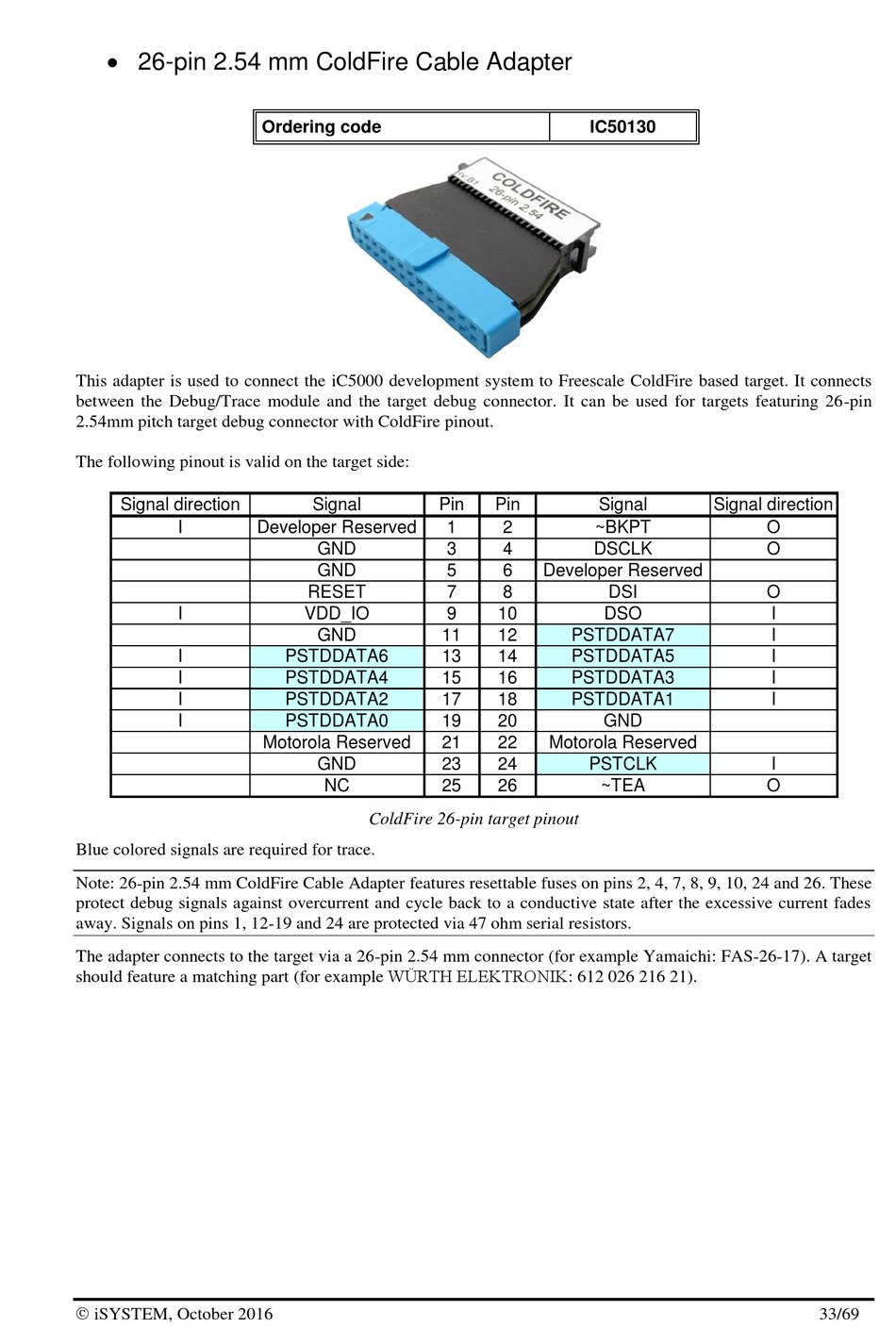

 26-pin 2.54 mm ColdFire Cable Adapter
This adapter is used to connect the iC5000 development system to Freescale ColdFire based target. It connects
between the Debug/Trace module and the target debug connector. It can be used for targets featuring 26-pin
2.54mm pitch target debug connector with ColdFire pinout.
The following pinout is valid on the target side:
Signal direction
I
I
I
I
I
I
Blue colored signals are required for trace.
Note: 26-pin 2.54 mm ColdFire Cable Adapter features resettable fuses on pins 2, 4, 7, 8, 9, 10, 24 and 26. These
protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades
away. Signals on pins 1, 12-19 and 24 are protected via 47 ohm serial resistors.
The adapter connects to the target via a 26-pin 2.54 mm connector (for example Yamaichi: FAS-26-17). A target
should feature a matching part (for example WÜRTH ELEKTRONIK: 612 026 216 21).
 iSYSTEM, October 2016
Ordering code
Signal
Developer Reserved
GND
GND
RESET
VDD_IO
GND
PSTDDATA6
PSTDDATA4
PSTDDATA2
PSTDDATA0
Motorola Reserved
GND
NC
ColdFire 26-pin target pinout
IC50130
Pin Pin Signal
1 2 ~BKPT
3 4 DSCLK
5 6 Developer Reserved
7 8
9 10 DSO
11 12 PSTDDATA7
13 14 PSTDDATA5
15 16 PSTDDATA3
17 18 PSTDDATA1
19 20 GND
21 22 Motorola Reserved
23 24 PSTCLK
25 26 ~TEA
Signal direction
O
O
DSI O
I
I
I
I
I
I
O
33/69
