Vtref - iSystem iC5000 Hardware Reference Manual

Note: This adapter is always used in conjunction with the IC50115 cable adapter.
iC5000 / iC5500 / iC6000 can trace up to 16 trace data lines. The target microcontroller has to be configured for
16-bit trace port operation if the target features MIPI connector with 32 data trace lines connected.
iSYSTEM high-end iTRACE GT development platform can capture 32-bit data trace port too.
Note that signal naming in iSYSTEM documentation uses target signal names and not the ones from the MIPI
standard. Refer to 'MIPI Alliance Recommendation for Debug and Trace Connectors' and 'ARM Target
Interface Connections' documentation for more information about signal names and their functions.
With this adapter, the following pinout is valid on the target side:
Signal direction
I
O
O
O
O
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Blue colored signals are required for trace.
The adapter connects to the target via a 60-pin MIPI connector (for example SAMTEC: QTH-030-01-L-D-A). A
target should feature a matching part (for example SAMTEC: QSH-030-01-L-D-A).
 iSYSTEM, October 2016
Signal Pin

VTref

1
TCK 3
TDI 5
RTCK 7
nTRST_PU 9
NC 11
TRACECLK 13
NC 15
TRACECTL 17
TRACEDATA0 19
TRACEDATA1 21
TRACEDATA2 23
TRACEDATA3 25
TRACEDATA4 27
TRACEDATA5 29
TRACEDATA6 31
TRACEDATA7 33
TRACEDATA8 35
TRACEDATA9 37
TRACEDATA10 39
TRACEDATA11 41
TRACEDATA12 43
TRACEDATA13 45
TRACEDATA14 47
TRACEDATA15 49
NC 51
NC 53
NC 55
GND 57
NC 59

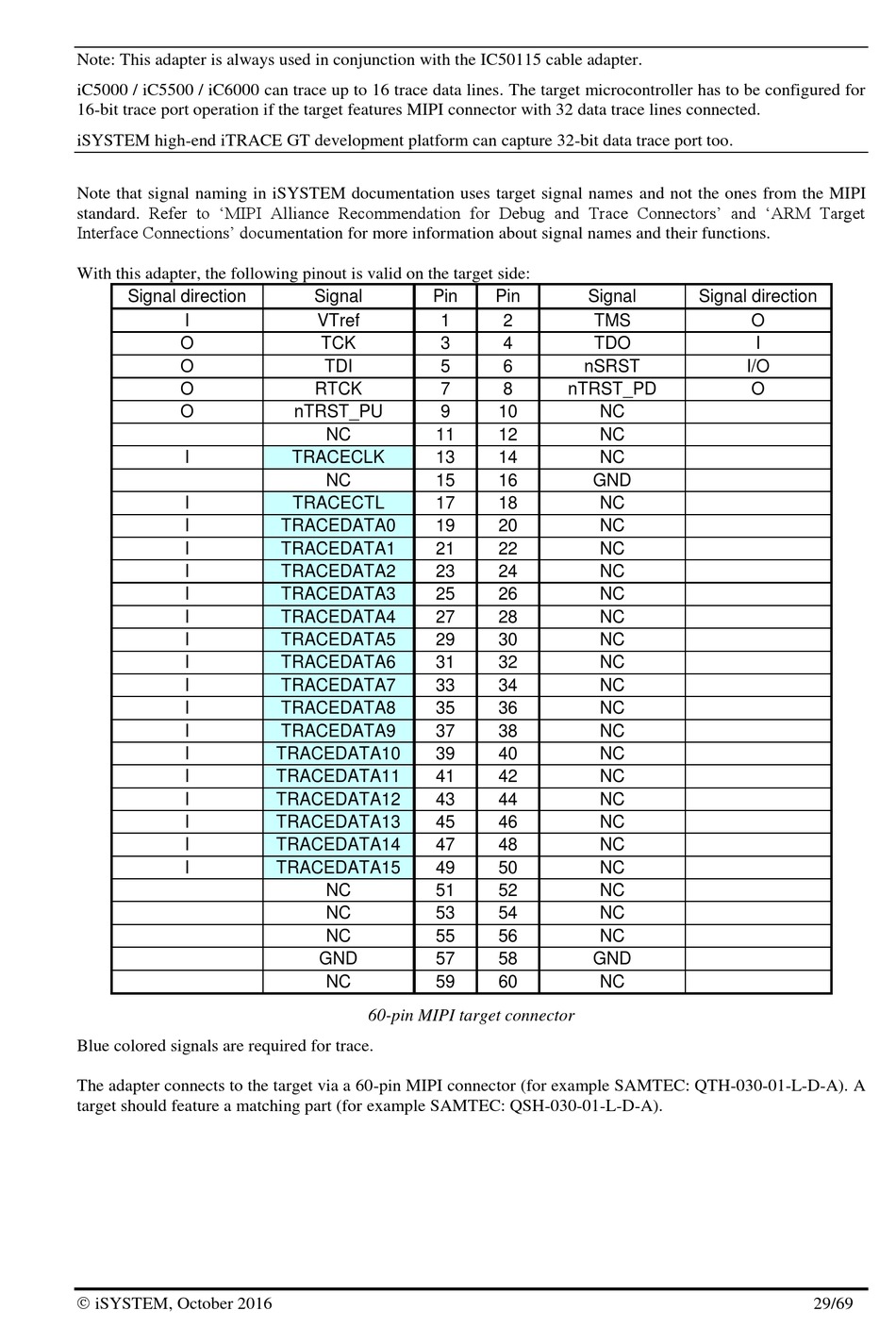

60-pin MIPI target connector
Pin Signal
2 TMS
4 TDO
6 nSRST
8 nTRST_PD
10 NC
12 NC
14 NC
16 GND
18 NC
20 NC
22 NC
24 NC
26 NC
28 NC
30 NC
32 NC
34 NC
36 NC
38 NC
40 NC
42 NC
44 NC
46 NC
48 NC
50 NC
52 NC
54 NC
56 NC
58 GND
60 NC
