PANEL DESCRIPTION
■ Panel description (Continued)
➥ Number input: '7'
➥ Comment input: '7,' 'P,' 'R,' 'S,' 'p,' 'r' or 's'
➥ After pushing [O], push to turn the Hailer
function ON or OFF. (p. 44)
➥ After pushing [O], hold down for 1 second to
turn the RX speaker function ON or OFF. (p. 46)
➥ Number input: '8'
➥ Comment input: '8,' 'T,' 'U,' 'V,' 't,' 'u' or 'v'
➥ After pushing [O], push to turn the Automatic
foghorn function ON or OFF. (p. 45)
➥ Number input: '9'
➥ Comment input: '9,' 'W,' 'X,' 'Y,' 'w,' 'x' or 'y'
➥ After pushing [O], push to turn the Intercom
function ON or OFF. (p. 43)
➥ Number input: '0'
➥ Number input: Hold down for 1 second to input the
➥ Comment input: '0' and symbols ('–' '/' '.')
➥ After pushing [O], push to activate an optional
Voice scrambler function. (p. 12)
• The optional Voice scrambler function cannot be
used on Channels 16 and 70.
➥ Push to enter the input channel comment,
selected item, and so on.
➥ Push to clear the entered data.
4
character 'A' for simplex channel.

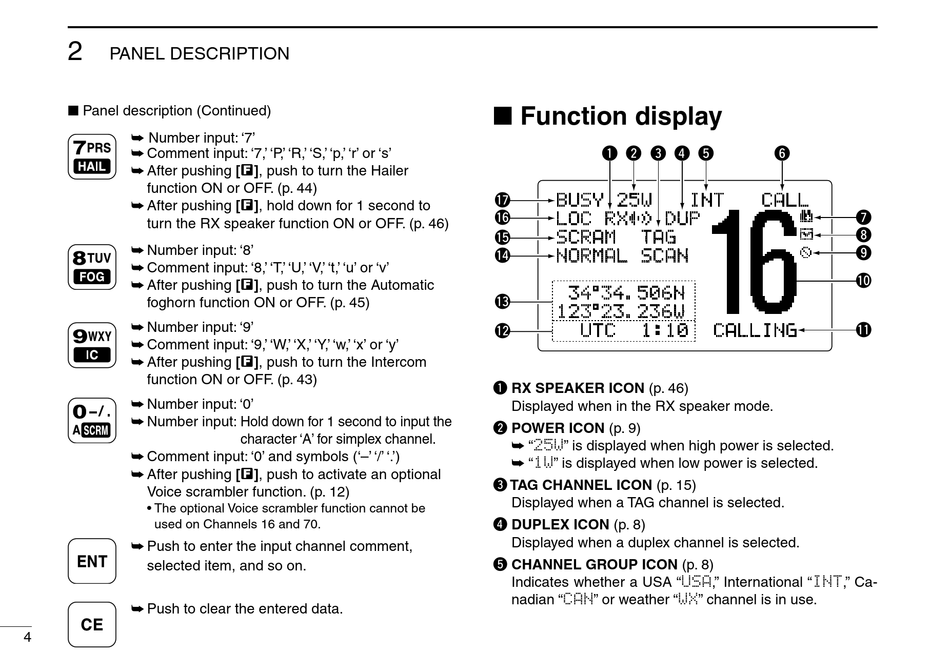

■ Function display
q w e r t
$75; 9
!7
!6
.1% 4:
&72
!5
5%4#/
6#)
!4
014/#. 5%#0
0
!3
’9
76%
!2
q RX SPEAKER ICON (p. 46)
Displayed when in the RX speaker mode.
w POWER ICON (p. 9)
➥ "25W" is displayed when high power is selected.
➥ "1W" is displayed when low power is selected.
e TAG CHANNEL ICON (p. 15)
Displayed when a TAG channel is selected.
r DUPLEX ICON (p. 8)
Displayed when a duplex channel is selected.
t CHANNEL GROUP ICON (p. 8)
Indicates whether a USA "USA," International "INT," Ca-
nadian "CAN" or weather "WX" channel is in use.
y
+06
%#..
u
i
o
!0
%#..+0)
!1
