11

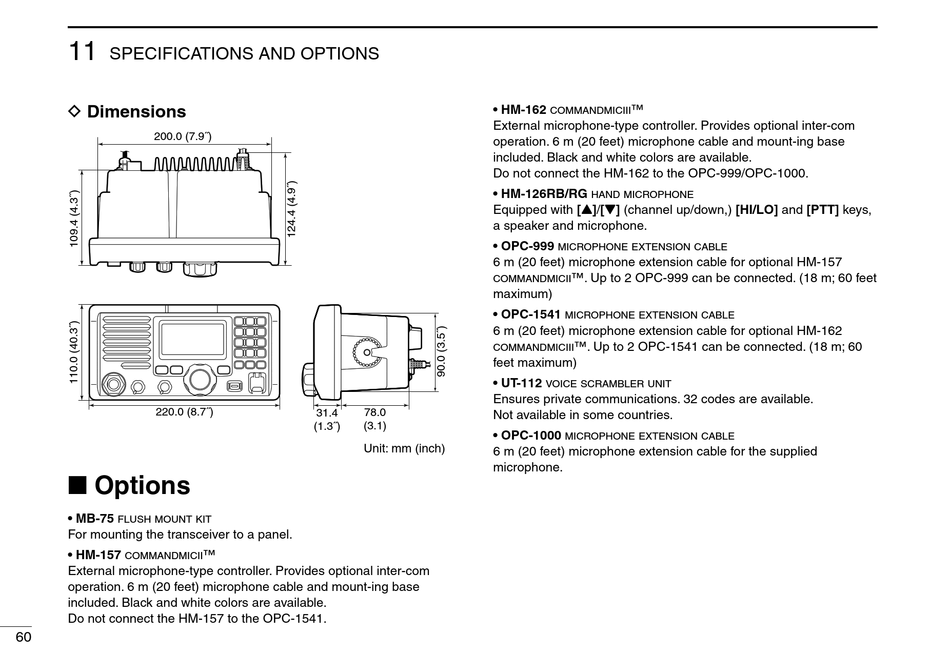

SPECIFICATIONS AND OPTIONS
D Dimensions
200.0 (7.9˝)
220.0 (8.7˝)
■ Options
• MB-75
flush mount kit
For mounting the transceiver to a panel.
• HM-157
commandmicii
External microphone-type controller. Provides optional inter-com
operation. 6 m (20 feet) microphone cable and mount-ing base
included. Black and white colors are available.
Do not connect the HM-157 to the OPC-1541.
60
78.0
31.4
(1.3˝)
(3.1)
Unit: mm (inch)
™
• HM-162
™
commandmiciii
External microphone-type controller. Provides optional inter-com
operation. 6 m (20 feet) microphone cable and mount-ing base
included. Black and white colors are available.
Do not connect the HM-162 to the OPC-999/OPC-1000.
• HM-126RB/RG
hand microphone
Equipped with [Y]/[Z] (channel up/down,) [HI/LO] and [PTT] keys,
a speaker and microphone.
• OPC-999
microphone extension cable
6 m (20 feet) microphone extension cable for optional HM-157
™. Up to 2 OPC-999 can be connected. (18 m; 60 feet
commandmicii
maximum)
• OPC-1541
microphone extension cable
6 m (20 feet) microphone extension cable for optional HM-162
™. Up to 2 OPC-1541 can be connected. (18 m; 60
commandmiciii
feet maximum)
• UT-112
voice scrambler unit
Ensures private communications. 32 codes are available.
Not available in some countries.
• OPC-1000
microphone extension cable
6 m (20 feet) microphone extension cable for the supplied
microphone.
