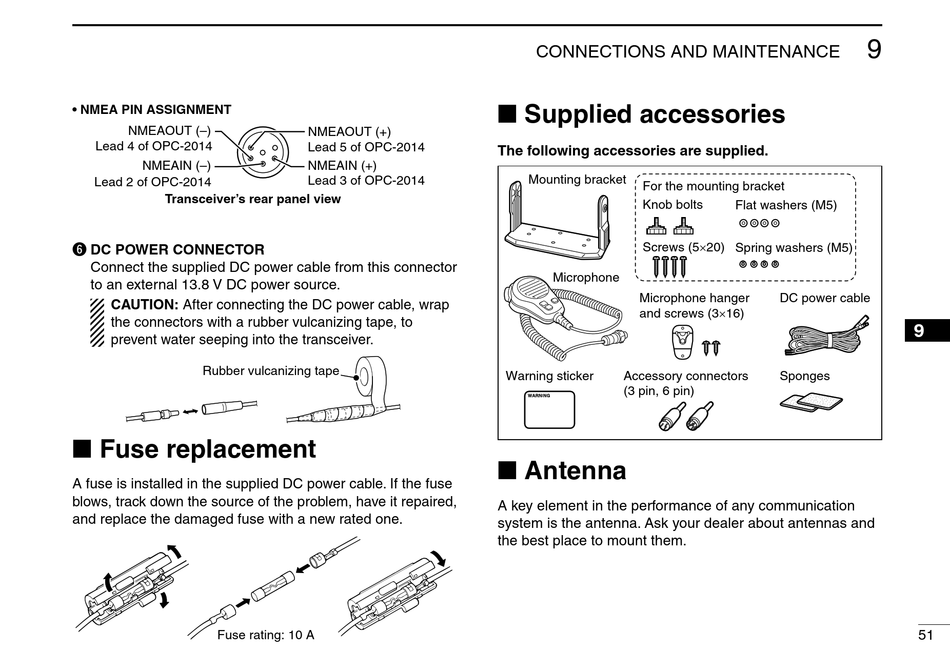

• NMEA PIN ASSIGNMENT
NMEAOUT (–)
Lead 4 of OPC-2014
NMEAIN (–)
Lead 2 of OPC-2014
Transceiver's rear panel view
y DC POWER CONNECTOR
Connect the supplied DC power cable from this connector
to an external 13.8 V DC power source.
CAUTION: After connecting the DC power cable, wrap
the connectors with a rubber vulcanizing tape, to
prevent water seeping into the transceiver.
Rubber vulcanizing tape
■ Fuse replacement
A fuse is installed in the supplied DC power cable. If the fuse
blows, track down the source of the problem, have it repaired,
and replace the damaged fuse with a new rated one.
Fuse rating: 10 A
NMEAOUT (+)
Lead 5 of OPC-2014
NMEAIN (+)
Lead 3 of OPC-2014
CONNECTIONS AND MAINTENANCE
■ Supplied accessories
The following accessories are supplied.
Mounting bracket
For the mounting bracket
Knob bolts
Screws (5×20)
Microphone
Microphone hanger
and screws (3×16)
Warning sticker
Accessory connectors
(3 pin, 6 pin)
■ Antenna
A key element in the performance of any communication
system is the antenna. Ask your dealer about antennas and
the best place to mount them.
9
Flat washers (M5)
Spring washers (M5)
DC power cable
9
Sponges
51
