3

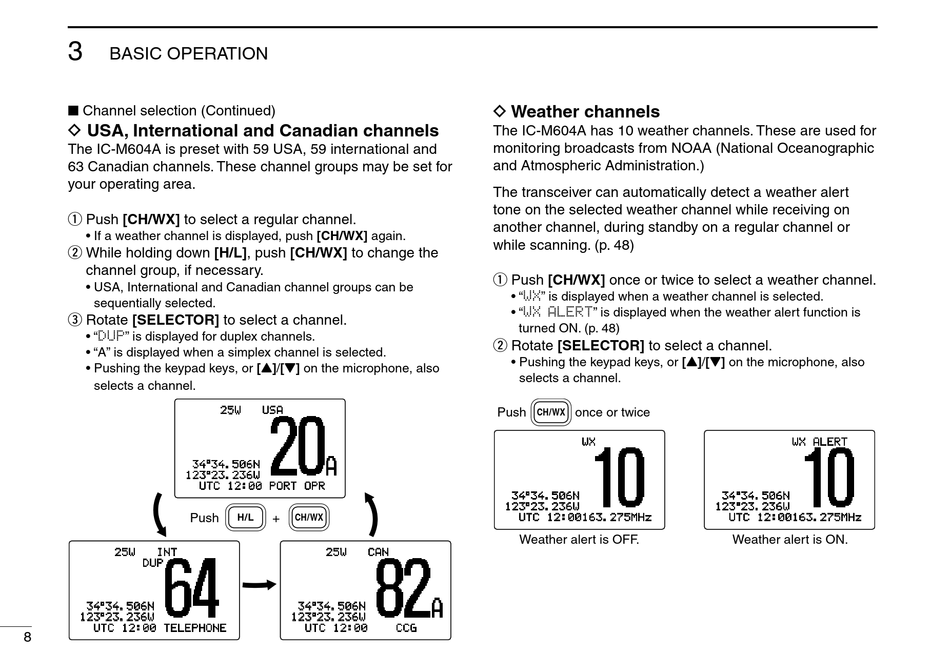

BASIC OPERATION
■ Channel selection (Continued)
D USA, International and Canadian channels
The IC-M604A is preset with 59 USA, 59 international and
63 Canadian channels. These channel groups may be set for
your operating area.
q Push [CH/WX] to select a regular channel.
• If a weather channel is displayed, push [CH/WX] again.
w While holding down [H/L], push [CH/WX] to change the
channel group, if necessary.
• USA, International and Canadian channel groups can be
sequentially selected.
e Rotate [SELECTOR] to select a channel.
• "DUP" is displayed for duplex channels.
• "A" is displayed when a simplex channel is selected.
• Pushing the keypad keys, or [Y]/[Z] on the microphone, also
selects a channel.
’0
’9
76%   2146 124
Push
9 +06
&72
’0
’9
76%   6'.'2*10'
8
9 75#
+
H/L CH/WX
9 %#0
’0
’9
76%   %%)
D Weather channels
The IC-M604A has 10 weather channels. These are used for
monitoring broadcasts from NOAA (National Oceanographic
and Atmospheric Administration.)
The transceiver can automatically detect a weather alert
tone on the selected weather channel while receiving on
another channel, during standby on a regular channel or
while scanning. (p. 48)
q Push [CH/WX] once or twice to select a weather channel.
• "WX" is displayed when a weather channel is selected.
• "WX ALERT" is displayed when the weather alert function is
turned ON. (p. 48)
w Rotate [SELECTOR] to select a channel.
• Pushing the keypad keys, or [Y]/[Z] on the microphone, also
selects a channel.
Push once or twice
CH/WX
9:
’0
’9
76%  /*\
Weather alert is OFF.
9: #.'46
’0
’9
76%  /*\
Weather alert is ON.
