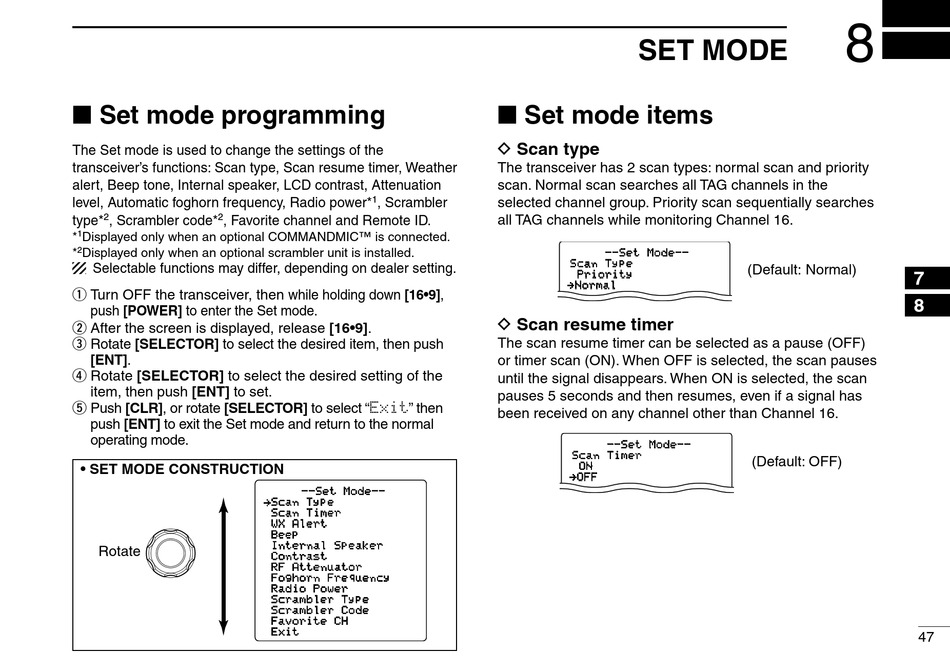

■ Set mode programming

The Set mode is used to change the settings of the
transceiver's functions: Scan type, Scan resume timer, Weather
alert, Beep tone, Internal speaker, LCD contrast, Attenuation
level, Automatic foghorn frequency, Radio power*
type* 2 , Scrambler code* 2 , Favorite channel and Remote ID.
1
* Displayed only when an optional COMMANDMIC™ is connected.
2
* Displayed only when an optional scrambler unit is installed.
Selectable functions may differ, depending on dealer setting.
q Turn OFF the transceiver, then while holding down [16•9],
push [POWER] to enter the Set mode.
w After the screen is displayed, release [16•9].
e Rotate [SELECTOR] to select the desired item, then push
[ENT].
r Rotate [SELECTOR] to select the desired setting of the
item, then push [ENT] to set.
t Push [CLR], or rotate [SELECTOR] to select "Exit" then
push [ENT] to exit the Set mode and return to the normal
operating mode.
• SET MODE CONSTRUCTION
Rotate
1
, Scrambler
5GV /QFG
5ECP 6[RG
5ECP 6KOGT
9: #NGTV
$GGR
+PVGTPCN 5RGCMGT
%QPVTCUV
4( #VVGPWCVQT
(QIJQTP (TGSWGPE[
4CFKQ 2QYGT
5ETCODNGT 6[RG
5ETCODNGT %QFG
(CXQTKVG %*
'ZKV

SET MODE

■ Set mode items

D Scan type
The transceiver has 2 scan types: normal scan and priority
scan. Normal scan searches all TAG channels in the
selected channel group. Priority scan sequentially searches
all TAG channels while monitoring Channel 16.
5GV /QFG
5ECP 6[RG
2TKQTKV[
0QTOCN
D Scan resume timer
The scan resume timer can be selected as a pause (OFF)
or timer scan (ON). When OFF is selected, the scan pauses
until the signal disappears. When ON is selected, the scan
pauses 5 seconds and then resumes, even if a signal has
been received on any channel other than Channel 16.
5GV /QFG
5ECP 6KOGT
10
1((
8
(Default: Normal)
7
8
(Default: OFF)
47
