2

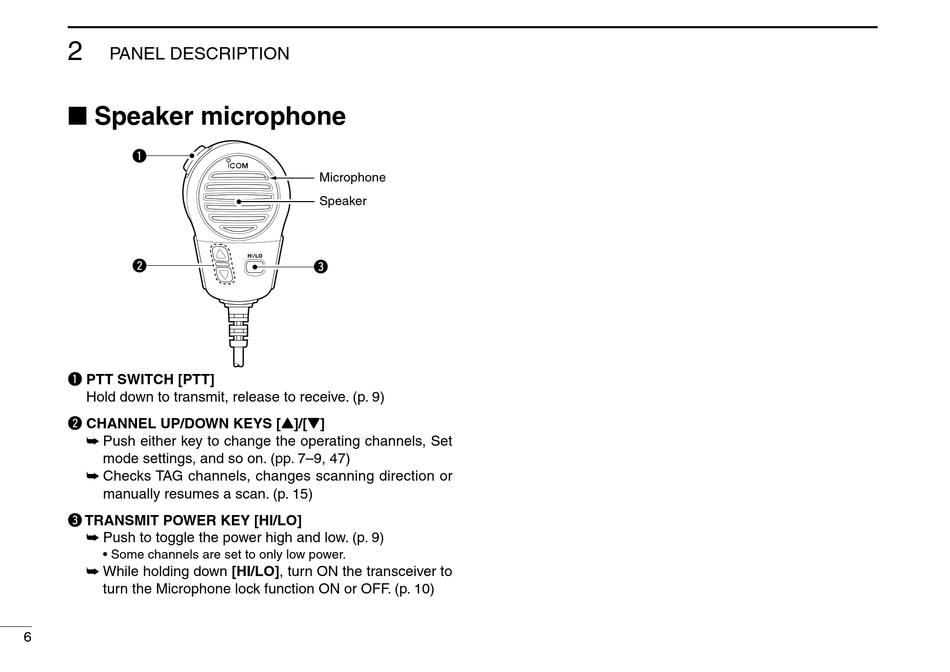

PANEL DESCRIPTION
■ Speaker microphone
q
w
q PTT SWITCH [PTT]
Hold down to transmit, release to receive. (p. 9)
w CHANNEL UP/DOWN KEYS [Y]/[Z]
➥ Push either key to change the operating channels, Set
mode settings, and so on. (pp. 7–9, 47)
➥ Checks TAG channels, changes scanning direction or
manually resumes a scan. (p. 15)
e TRANSMIT POWER KEY [HI/LO]
➥ Push to toggle the power high and low. (p. 9)
• Some channels are set to only low power.
➥ While holding down [HI/LO], turn ON the transceiver to
turn the Microphone lock function ON or OFF. (p. 10)
6
Microphone
Speaker
e
