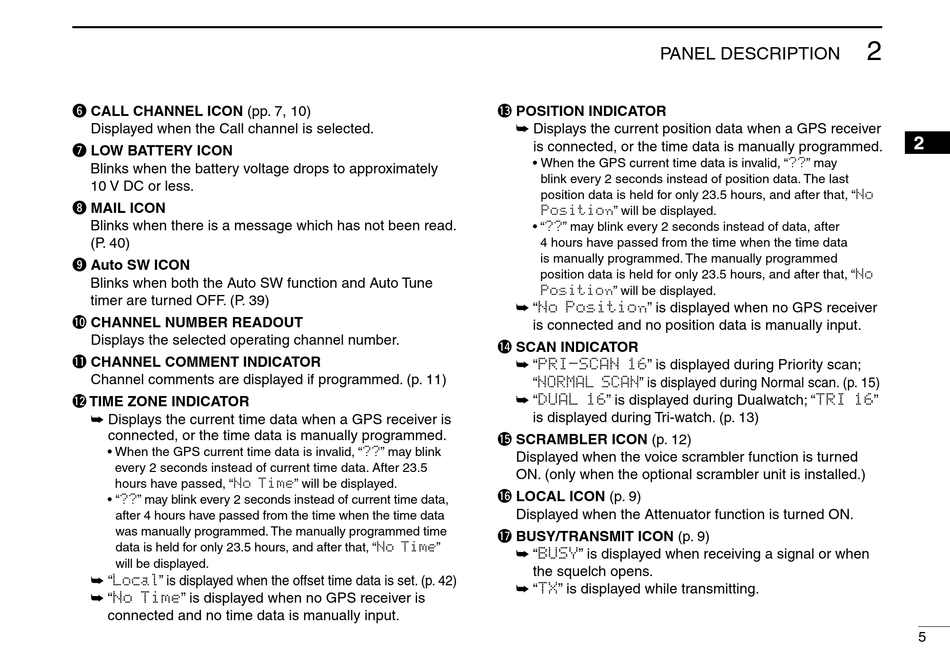

y CALL CHANNEL ICON (pp. 7, 10)
Displayed when the Call channel is selected.
u LOW BATTERY ICON
Blinks when the battery voltage drops to approximately
10 V DC or less.
i MAIL ICON
Blinks when there is a message which has not been read.
(P. 40)
o Auto SW ICON
Blinks when both the Auto SW function and Auto Tune
timer are turned OFF. (P. 39)
!0 CHANNEL NUMBER READOUT
Displays the selected operating channel number.
!1 CHANNEL COMMENT INDICATOR
Channel comments are displayed if programmed. (p. 11)
!2 TIME ZONE INDICATOR
➥ Displays the current time data when a GPS receiver is
connected, or the time data is manually programmed.
• When the GPS current time data is invalid, "??" may blink
every 2 seconds instead of current time data. After 23.5
hours have passed, "No Time" will be displayed.
• "??" may blink every 2 seconds instead of current time data,
after 4 hours have passed from the time when the time data
was manually programmed. The manually programmed time
data is held for only 23.5 hours, and after that, "No Time"
will be displayed.
➥ "Local" is displayed when the offset time data is set. (p. 42)
➥ "No Time" is displayed when no GPS receiver is
connected and no time data is manually input.
PANEL DESCRIPTION
!3 POSITION INDICATOR
➥ Displays the current position data when a GPS receiver
is connected, or the time data is manually programmed.
• When the GPS current time data is invalid, "??" may
blink every 2 seconds instead of position data. The last
position data is held for only 23.5 hours, and after that, "No
Position" will be displayed.
• "??" may blink every 2 seconds instead of data, after
4 hours have passed from the time when the time data
is manually programmed. The manually programmed
position data is held for only 23.5 hours, and after that, "No
Position" will be displayed.
➥ "No Position" is displayed when no GPS receiver
is connected and no position data is manually input.
!4 SCAN INDICATOR
➥ "PRI-SCAN 16" is displayed during Priority scan;
"NORMAL SCAN" is displayed during Normal scan. (p. 15)
➥ "DUAL 16" is displayed during Dualwatch; "TRI 16"
is displayed during Tri-watch. (p. 13)
!5 SCRAMBLER ICON (p. 12)
Displayed when the voice scrambler function is turned
ON. (only when the optional scrambler unit is installed.)
!6 LOCAL ICON (p. 9)
Displayed when the Attenuator function is turned ON.
!7 BUSY/TRANSMIT ICON (p. 9)
➥ "BUSY" is displayed when receiving a signal or when
the squelch opens.
➥ "TX" is displayed while transmitting.
