Installation

This section contains information on how to connect cables to the IN1606 and IN1608
Series models. Topics in this section include:
•
•
•
•

IN1606 and IN1608 Series Connector Overview

IN1606

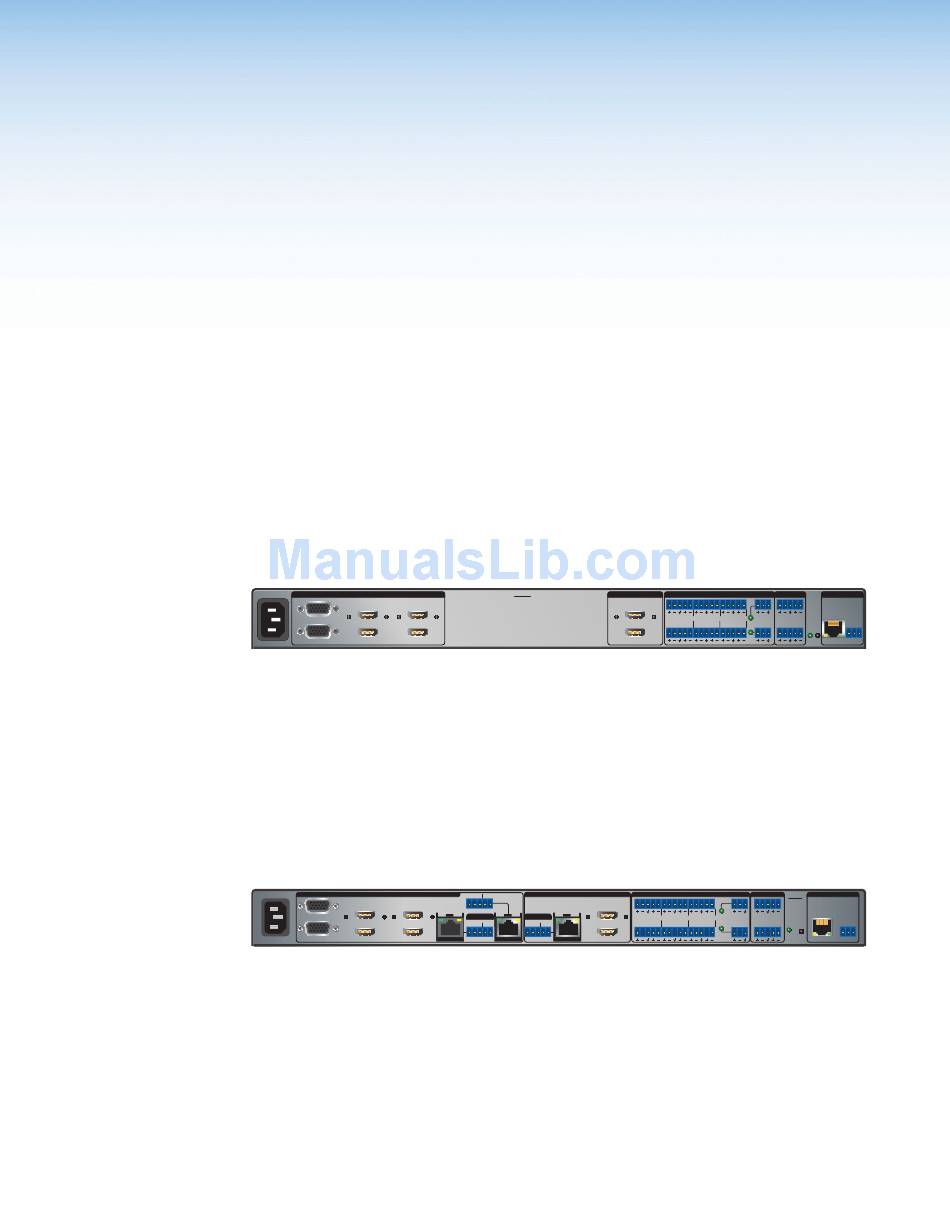

The IN1606 (see figure 3) features four HDMI and two universal analog video inputs along
with stereo balanced or unbalanced audio connectors for each input. It also features two
mic/line audio inputs. Outputs include two HDMI outputs and two variable audio outputs.
Control connectors include a Remote RS-232 and LAN connector.
100-240V ~ 0.5 A MAX
Figure 3.

IN1608 Series

All IN1608 Series models include the same IN1606 connectors with the addition of several
other connectors.
IN1608
In addition to the IN1606 connectors, all IN1608 Series models (see figure 4) include DTP
inputs and a TP output with corresponding RS-232 and IR Over DTP (IN1608 DTP only) or
RS-232 and IR Over HDBT (IN1608 HDBT only) pass-through connectors.
100-240V ~ 1.0 A MAX
Figure 4.
IN1606 and IN1608 Series Connector Overview
Installation Overview
Rear Panel Connections
Connection Details
INPUTS
1
3 5
CONFIGURABLE
2 4 6
HDMI HDMI
50-60 Hz
IN1606 Rear Panel
INPUTS
1
3 5
7
SIG
CONFIGURABLE
2
HDMI HDMI
4 6
50-60 Hz
IN1608 Rear Panel
IN1606 and IN1608 Series Scaling Presentation Switcher • Installation
IN1606 OUTPUTS
A
B
OUTPUTS
RS-232 IR
C A
Tx Rx G Tx Rx 8
LINK SIG LINK SIG LINK
OVER DTP OVER DTP
HDMI
RS-232 IR RS-232 IR
B
DTP IN Tx Rx G Tx Rx DTP IN Tx Rx G Tx Rx DTP OUT
AUDIO INPUTS OUTPUTS
1 1 2
L 1 R L 3 R L 5 R
MIC/LINE
+48V
VARIABLE
HDMI
L 2 R L 4 R L 6 R 2 L R
RESET
+48V
AUDIO INPUTS OUTPUTS OUTPUTS
IN1608
1 1 2
L 1 R L 3 R L 5 R +48V
MIC/LINE
VARIABLE
RESET
L 2 R L 4 R L 6 R 2
L R
+48V
REMOTE
LAN
RS-232
Tx Rx G
REMOTE
LAN
RS-232
Tx Rx G
11
