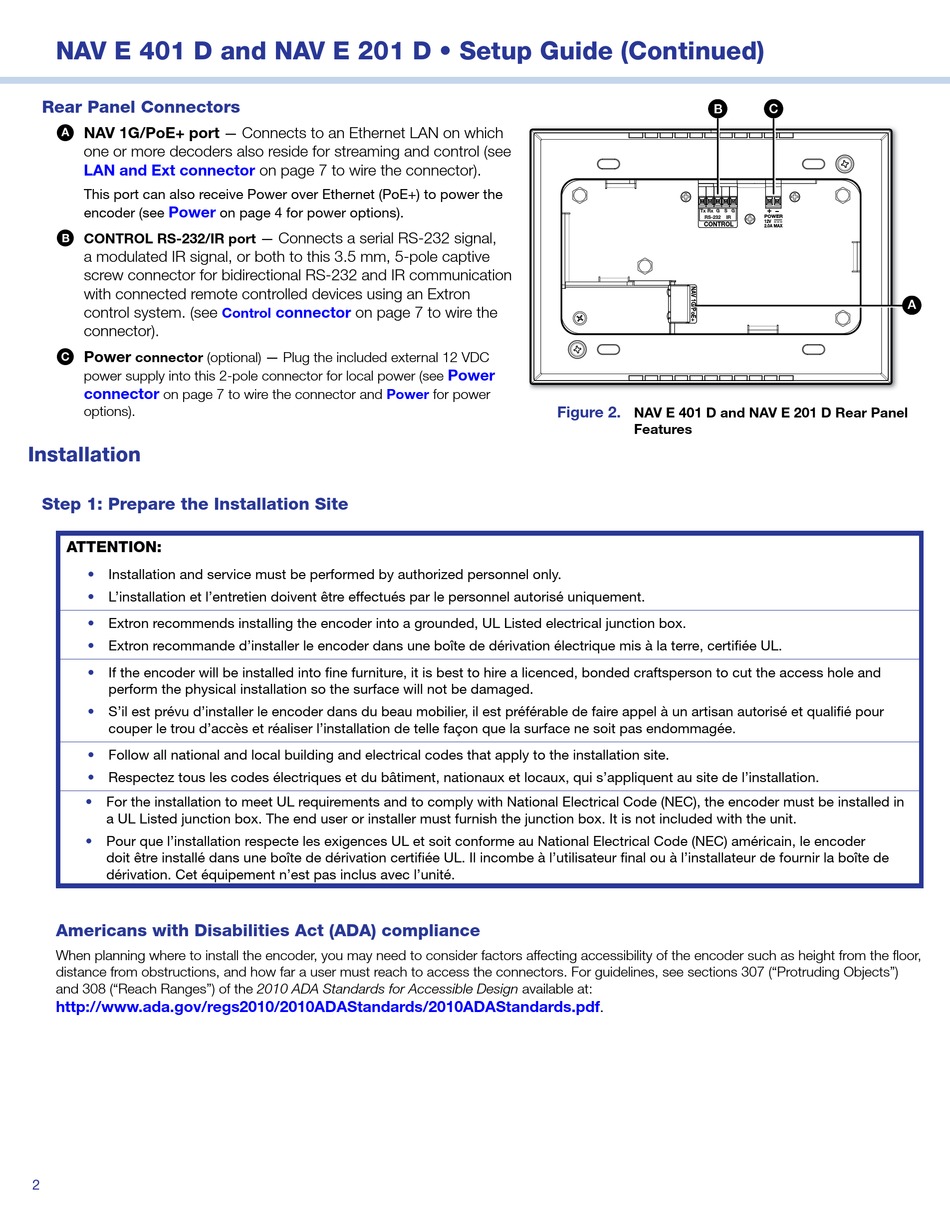

NAV E 401 D and NAV E 201 D • Setup Guide (Continued)

Rear Panel Connectors

NAV 1G/PoE+ port
A
one or more decoders also reside for streaming and control (see
LAN and Ext connector
This port can also receive Power over Ethernet (PoE+) to power the
Power
encoder (see
B
CONTROL RS-232/IR port —
a modulated IR signal, or both to this 3.5 mm, 5-pole captive
screw connector for bidirectional RS-232 and IR communication
with connected remote controlled devices using an Extron
control system. (see
connector).
Power
C connector (optional) — Plug the included external 12 VDC
power supply into this 2-pole connector for local power (see
connector
on page 7 to wire the connector and
options).
Installation

Step 1: Prepare the Installation Site

ATTENTION:
• Installation and service must be performed by authorized personnel only.
• L'installation et l'entretien doivent être effectués par le personnel autorisé uniquement.
• Extron recommends installing the encoder into a grounded, UL Listed electrical junction box.
• Extron recommande d'installer le encoder dans une boîte de dérivation électrique mis à la terre, certifiée UL.
• If the encoder will be installed into fine furniture, it is best to hire a licenced, bonded craftsperson to cut the access hole and
perform the physical installation so the surface will not be damaged.
• S'il est prévu d'installer le encoder dans du beau mobilier, il est préférable de faire appel à un artisan autorisé et qualifié pour
couper le trou d'accès et réaliser l'installation de telle façon que la surface ne soit pas endommagée.
• Follow all national and local building and electrical codes that apply to the installation site.
• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s'appliquent au site de l'installation.
• For the installation to meet UL requirements and to comply with National Electrical Code (NEC), the encoder must be installed in
a UL Listed junction box. The end user or installer must furnish the junction box. It is not included with the unit.
• Pour que l'installation respecte les exigences UL et soit conforme au National Electrical Code (NEC) américain, le encoder
doit être installé dans une boîte de dérivation certifiée UL. Il incombe à l'utilisateur final ou à l'installateur de fournir la boîte de
dérivation. Cet équipement n'est pas inclus avec l'unité.

Americans with Disabilities Act (ADA) compliance

When planning where to install the encoder, you may need to consider factors affecting accessibility of the encoder such as height from the floor,
distance from obstructions, and how far a user must reach to access the connectors. For guidelines, see sections 307 ("Protruding Objects")
and 308 ("Reach Ranges") of the 2010 ADA Standards for Accessible Design available at:
http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf
2
Connects to an Ethernet LAN on which
—
on page 7 to wire the connector).
on page 4 for power options).
Connects a serial RS-232 signal,
connector on page 7 to wire the
Control
Power
Power
for power
Figure 2.
.
B B B C C C
+
Tx Rx G S G
POWER
RS-232 IR
12V
CONTROL
2.0A MAX
NAV E 401 D and NAV E 201 D Rear Panel
Features
A A A
