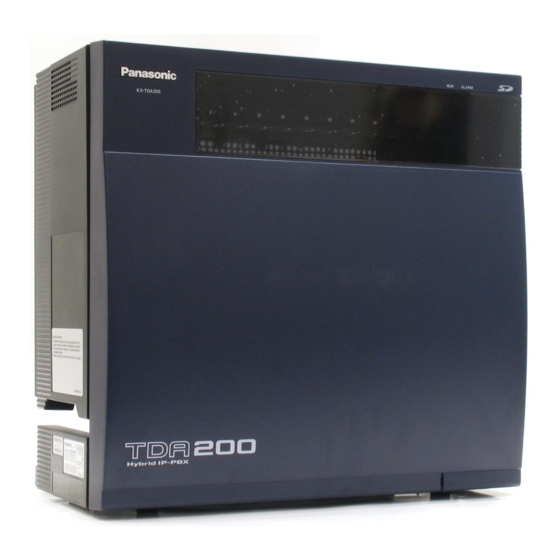

Hybrid IP-PBX
Feature Manual
KX-TDA50/KX-TDA100
KX-TDA200/KX-TDA600
Model
Thank you for purchasing a Panasonic Hybrid IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-TDA50: PSMPR Software File Version 4.0000 or later
KX-TDA100/KX-TDA200: PMPR Software File Version 3.2000 or later
KX-TDA600: PLMPR Software File Version 3.1000 or later
Document Version: 2007-04

Advertisement

   Related Manuals for Panasonic KX-TDA50

   Summary of Contents for Panasonic KX-TDA50

  • Page 1

    Thank you for purchasing a Panasonic Hybrid IP-PBX. Please read this manual carefully before using this product and save this manual for future use. KX-TDA50: PSMPR Software File Version 4.0000 or later KX-TDA100/KX-TDA200: PMPR Software File Version 3.2000 or later KX-TDA600: PLMPR Software File Version 3.1000 or later...

  • Page 2

    About the Feature Manual The Feature Manual is designed to serve as an overall reference describing the features of the Panasonic Hybrid IP-PBX. It explains what the Hybrid IP-PBX can do, as well as how to obtain the most of its many features and facilities.

  • Page 3

    Some optional service cards, PTs, and features are not available in some areas. In the same respect, some optional service cards and features are available exclusively for the KX-TDA50, KX- TDA100, KX-TDA200, or KX-TDA600. Please consult your certified Panasonic dealer for more information.

  • Page 4: Feature Highlights

    Feature Highlights Networking Features The Hybrid IP-PBX supports the following private networking features: TIE Line Service PBXs can be connected via a privately leased telephone lines, forming a private network. These "TIE lines" provide a cost-effective way to route calls and communications, and are often used to connect corporate offices located in different cities.

  • Page 5

    Portable Station (PS) Features A Panasonic PS (e.g., KX-TD7680, KX-TD7690) can be used in place of a PT to provide wireless access to PBX features and call handling. When in Wireless XDP Parallel Mode, a PS can share an extension number with a wired telephone, allowing extension users to use their PSs when they are away from their desks to answer or make calls as if they were using their wired telephones.

  • Page 6: List Of Abbreviations

    List of Abbreviations AA → Automated Attendant ACD → Automatic Call Distribution ANI → Automatic Number Identification APT → Analog Proprietary Telephone ARS → Automatic Route Selection BGM → Background Music CCBS → Completion of Calls to Busy Subscriber CF → Call Forwarding—QSIG CLI →...

  • Page 7

    G-CO → Group-CO ICD → Incoming Call Distribution IP-PT → IP Proprietary Telephone IRNA → Intercept Routing—No Answer ISDN → Integrated Services Digital Network L-CO → Loop-CO LCS → Live Call Screening LED → Light Emitting Diode NDSS → Network Direct Station Selection OGM →...

  • Page 8

    VM → Voice Mail VoIP → Voice over Internet Protocol VPS → Voice Processing System XDP → EXtra Device Port Feature Manual...

  • Page 9: Table Of Contents

    Table of Contents Features and Configurations............... 13 A ............................14 1.1.1 Absent Message ......................14 1.1.2 Account Code Entry ......................15 1.1.3 ARS (Automatic Route Selection) ..................16 1.1.4 Automatic Callback Busy (Camp-on) ................22 1.1.5 Automatic Extension Release ..................23 1.1.6 Automatic Fax Transfer ....................

  • Page 10: Table Of Contents

    1.5.2 Emergency Call........................90 1.5.3 Executive Busy Override ....................90 1.5.4 Extension Dial Lock......................92 1.5.5 Extension Feature Clear ....................93 1.5.6 Extension PIN (Personal Identification Number) ..............94 1.5.7 Extension Port Configuration ...................95 1.5.8 External Relay........................96 1.5.9 External Sensor .......................97 F .............................100 1.6.1 Fixed Buttons ......................... 100 1.6.2 Flash/Recall/Terminate....................

  • Page 11: Table Of Contents

    1.11.3 Message Waiting......................178 1.11.4 Music on Hold ........................ 181 1.11.5 Mute ..........................182 1.12 O ............................ 184 1.12.1 Off-hook Monitor ......................184 1.12.2 OGM (Outgoing Message)..................... 184 1.12.3 OHCA (Off-hook Call Announcement) ................186 1.12.4 One-touch Dialing ......................187 1.12.5 Operator Features......................

  • Page 12: Table Of Contents

    KX-TDA100/KX-TDA200 PMPR Software File Version 3.0xxx ........349 2.4.4 KX-TDA100/KX-TDA200 PMPR Software File Version 3.2xxx ........351 2.4.5 KX-TDA50 PSMPR Software File Version 1.1xxx ............352 2.4.6 KX-TDA50 PSMPR Software File Version 2.0xxx ............352 2.4.7 KX-TDA50 PSMPR Software File Version 3.0xxx ............353 2.4.8...

  • Page 13: Features And Configurations

    Section 1 Features and Configurations Feature Manual...

  • Page 14: Absent Message

    1.1 A 1.1.1 Absent Message Description Extension users can prepare a brief text message (Absent Message) that will be displayed to other extension users when they are called. These messages can explain the reason for their absence, and may be edited through system programming and personal programming. The following Absent Messages may be programmed: Message Type...

  • Page 15: Account Code Entry

    1.1 A 2.12.5 [6-5] Absent Message PT Programming Manual [008] Absent Message Feature Manual References 2.1 Capacity of System Resources Operating Manual References 1.3.1 Absent Message 3.1.2 Personal Programming 1.1.2 Account Code Entry Description An account code is used to identify outgoing CO line calls for accounting and billing purposes. The account code is appended to the Station Message Detail Recording (SMDR) call record.

  • Page 16: Ars (automatic Route Selection)

    1.1 A Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features—Account Code Entry 2.8.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—Account Code Mode PT Programming Manual [508] Account Code Mode Feature Manual References 1.3.19 COS (Class of Service) 1.6.3 Flexible Buttons 1.16.1 SMDR (Station Message Detail Recording) Operating Manual References 1.2.1 Making Calls...

  • Page 17

    1.1 A [Carrier Selection Procedure Flowchart] The numbers in parentheses indicate the corresponding items found under [Programming Procedures] on the following pages. An extension user accesses a CO line and dials a telephone number. No (Normal CO Line Access) Is the ARS mode (1) enabled? Sends the telephone number as dialed.

  • Page 18

    1.1 A Also note that the CO Line Access number is always ignored by ARS and does not need to be programmed here. Calls that are exempt from ARS are connected to the user-selected line, via the default carrier for that line.

  • Page 19

    → 2.14.4 [8-3] Routing Plan Time—Time Setting → [330] ARS Routing Plan Time Table → 2.14.5 [8-4] Routing Plan Priority → [331–346] ARS Routing Plan Table (1–16) (KX-TDA50/KX-TDA100/KX-TDA200 only) → [347] ARS Routing Plan Table (1–48) (KX-TDA600 only) Carrier Table Each carrier must be programmed in the Carrier Table.

  • Page 20

    CO Line Access no. is ignored → 2.14.6 [8-5] Carrier—Carrier—Carrier Name → [350] ARS Carrier Name → 2.14.6 [8-5] Carrier—TRG 01–TRG 64 (KX-TDA50/KX-TDA100/KX-TDA200), or TRG 01– TRG 96 (KX-TDA600) → [351] ARS Trunk Group for Carrier Access → 2.14.6 [8-5] Carrier—Carrier—Carrier Access Code →...

  • Page 21

    1.1 A ARS Options Authorization Code for Tenant A Carrier Authorization Code can be assigned to each tenant. → 2.14.6 [8-5] Carrier—Authorization Code for Tenant Authorization Code for Trunk Group A Carrier Authorization Code can be assigned to each trunk group. →...

  • Page 22: Automatic Callback Busy (camp-on)

    [322] ARS Routing Plan Table Number [325] ARS Exception Number [330] ARS Routing Plan Time Table [331–346] ARS Routing Plan Table (1–16) (KX-TDA50/KX-TDA100/KX-TDA200 only) [347] ARS Routing Plan Table (1–48) (KX-TDA600 only) [350] ARS Carrier Name [351] ARS Trunk Group for Carrier Access...

  • Page 23: Automatic Extension Release

    1.1 A Callback ringing will be sent to extensions in the order that the feature was set. In other words, the extension that set the feature first will receive a callback ringing first. • This feature cannot be used for calls to a Voice Processing System (VPS). Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features—Automatic Callback Busy Cancel...

  • Page 24: Automatic Fax Transfer

    OGM through system programming. This allows a single CO line to be used seamlessly for both voice and fax calls, with only voice calls arriving at user extensions. This feature is only available for the KX-TDA50. [Available Automatic Fax Transfer Destinations]...

  • Page 25: Automatic Time Adjustment

    1.1 A Installation Manual References 2.5.3 MSG2 Card (KX-TDA5191) Programming References PC Programming Manual 2.11.4 [5-3-2] Voice Message—DISA Message—Fax Extension (KX-TDA50 only) PT Programming Manual None Feature Manual References 1.4.7 DISA (Direct Inward System Access) 2.2 Exclusive Features Table 1.1.7...

  • Page 26

    1.1 A Conditions • Station Message Detail Recording (SMDR) will log call information using the PBX clock so that the logging time will be overlapped at the end of Daylight Saving Time. (→ 1.16.1 SMDR (Station Message Detail Recording)) Programming References PC Programming Manual 2.8.1 [2-1] Date &...

  • Page 27: Bgm (background Music)

    PC Programming Manual 2.8.3 [2-2] Operator & BGM → BGM and Music on Hold—Music Source of BGM2 (KX-TDA100/KX-TDA200/KX-TDA600 only) → BGM and Music on Hold—Music Source of BGM (KX-TDA50 only) 2.8.8 [2-6-1] Numbering Plan—Main—Features → External BGM On / Off...

  • Page 28

    → BGM Set / Cancel 2.8.19 [2-11-1] Audio Gain—Paging/MOH → MOH—MOH 1 (Music On Hold 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) → MOH—MOH 2 (Music On Hold 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) → MOH—MOH (Music On Hold) (KX-TDA50 only) 2.11.2 [5-2] External Pager PT Programming Manual None Operating Manual References 1.3.5 BGM (Background Music)

  • Page 29: Caller Id

    1.3 C 1.3.1 Caller ID Description The PBX can receive Caller ID information (a caller's name and telephone number) from calls received on CO lines. This information can be shown on a proprietary telephone (PT) display when receiving a call and can be used to direct calls from specific callers to specific destinations automatically.

  • Page 30

    1.3 C Caller ID-Related Features Features Description Details in Calling Line Identification Caller ID information received by the PBX is used to • 1.3.12 CLI (CLI) Distribution direct calls from specific callers to specific (Calling Line destinations. The caller's telephone number and a Identification) destination must be assigned in the System Speed Distribution...

  • Page 31

    1.3 C <Modification Table> Removed No. of Digits Added No. International Call Data National Call Data Subscriber Call Data Data entered under "Removed No. of Digits" and "Added No." for International, National, and Subscriber call data will be applied respectively to international, long distance, and local calls. <Modification Flowchart>...

  • Page 32

    Caller ID signaling type can be selected through system programming. [Caller ID to SLT Port] • Hardware Requirement: KX-TDA50: The EXT-CID card KX-TDA100/KX-TDA200: An SLC8 card with an EXT-CID card installed, or a CSLC16 card KX-TDA600: An SLC8 card with an EXT-CID card installed •...

  • Page 33: Call Hold

    1.3 C • If a call is transferred to an SLT, the transferring extension's information will be shown on the SLT. If the transferring extension goes on-hook before the call is answered, the original caller's information will be shown. • When Caller ID information such as "Private", "Out of Area", or "Long Distance"...

  • Page 34

    1.3 C Conditions • Call Hold Limitation A proprietary telephone (PT) user can hold one intercom call and/or multiple CO line calls at a time. A single line telephone (SLT) user can hold either one intercom call or one CO line call at a time. By using the Call Park feature, PT and SLT users can hold multiple CO line calls and intercom calls simultaneously.

  • Page 35

    1.3 C • SLT Hold Mode It is possible to choose how to hold and transfer a call with an SLT through system programming. The following methods are available: Hold Hold Transfer to (to be Retrieved from Transfer to CO Line Extension Another Extension) Flashing the...

  • Page 36: Call Log, Incoming

    1.3 C Programming References PC Programming Manual 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone → Recall—Hold Recall → Recall—Disconnect after Recall 2.8.8 [2-6-1] Numbering Plan—Main—Features → Call Hold / Call Hold Retrieve → Call Hold Retrieve : Specified with a Holding Extension Number →...

  • Page 37

    1.3 C --- Caller's name (20 digits max.) John White --- Date and time of a call received DEC.12 10:00AM MON --- Answering Status* NEW: Not Answered 123456789 --- Caller's number (16 digits max.) Call Log buttons This extension Incoming call distribution group "NEW"...

  • Page 38

    1.3 C Call Log Lock) to prevent other users from viewing its contents. In this case, the Outgoing Call Log display, the Personal Speed Dialing number display and the SVM Log display are also locked, and the voice messages in the user's message box cannot be played back. An extension personal identification number (PIN) is required to use this feature.

  • Page 39: Call Monitor

    1.3 C 1.16.3 Speed Dialing, Personal 2.1 Capacity of System Resources Operating Manual References 1.4.1 Call Log, Incoming 3.1.2 Personal Programming 1.3.4 Call Monitor Description Allows an extension user to listen to a busy extension user's existing conversation. The user can hear the conversation but will not be heard.

  • Page 40: Call Park

    1.3 C Programming References PC Programming Manual 2.8.10 [2-6-3] Numbering Plan—B/NA DND Call Feature—Call Monitor 2.8.11 [2-7-1] Class of Service—COS Settings—CO & SMDR—Call Monitor 2.10.1 [4-1-1] Wired Extension—Extension Settings → Option 2—Data Mode → Option 3—Executive Override Deny 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 3—Executive Override Deny PT Programming Manual None Feature Manual References...

  • Page 41

    1.3 C Light pattern Status Slow red flashing A call is parked in the preset parking zone There are no parked calls • Call Park (Automatic Park Zone) Button Pressing the Call Park (Automatic Park Zone) button parks a call in an idle parking zone automatically. Any flexible button can be customized as the Call Park (Automatic Park Zone) button.

  • Page 42: Call Pickup

    1.3 C 1.3.6 Call Pickup Description An extension user can answer a call ringing at any other extension. The following types of Call Pickup are available: Type Description Directed A specified extension's call is answered. Group A call within a specified call pickup group is answered. Call Pickup Deny An extension user can prevent other extensions from picking up calls ringing at his or her own extension.

  • Page 43: Call Splitting

    1.3 C Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features → Group Call Pickup → Directed Call Pickup → Call Pickup Deny Set / Cancel 2.8.11 [2-7-1] Class of Service—COS Settings—Extension Feature—Call Pickup by DSS 2.8.17 [2-9] System Options—Option 4 →...

  • Page 44: Call Transfer

    1.3 C 1.3.8 Call Transfer Description An extension user can transfer a call to another extension or an outside party. The following features are available: Feature Transferring method Transfer is completed after announcing the transfer to the destination With Announcement party.

  • Page 45

    1.3 C Destination Availability Trunk Group Access no. + Trunk Group no. + Phone no. Extension of Another PBX (via TIE Line, Access with PBX Code) Extension of Another PBX (via TIE Line, Access without PBX Code) • One-touch Transfer One-touch Transfer can be performed by pressing a One-touch Dialing button that has been assigned the TRANSFER command and the telephone number of the transfer destination.

  • Page 46: Call Waiting Features

    1.3 C 1.3.9 CALL WAITING FEATURES Description Used to inform a busy extension that another incoming call is waiting. The busy extension user can answer the second call by disconnecting the current call or placing it on hold. The following notification method can be assigned for each extension depending on the call waiting and the telephone type: Call Waiting Tone: Tone from the handset or built-in speaker OHCA: Voice from the built-in speaker...

  • Page 47

    1.3 C • OHCA and Whisper OHCA are enabled or disabled by the Class of Service (COS) of the calling extension. • OHCA and Whisper OHCA are not compatible with some telephone types. In such cases, a Call Waiting tone will be sent to the called extension. Called Extension's Call Waiting Mode OHCA Mode of Calling...

  • Page 48: Call Waiting Tone

    1.3 C 1.3.10 Call Waiting Tone 1.12.3 OHCA (Off-hook Call Announcement) 1.16.1 SMDR (Station Message Detail Recording) 1.20.3 Whisper OHCA Operating Manual References 1.3.12 CALL WAITING FEATURES 1.3.13 Call Waiting Tone 3.1.2 Personal Programming 1.3.10 Call Waiting Tone Description When an extension user attempts to call a busy extension (i.e., an extension that is ringing or having a conversation), a call waiting tone can be sent to the called extension to indicate another call is waiting.

  • Page 49: Cellular Phone Features

    1.3 C Operating Manual References 1.3.13 Call Waiting Tone 3.1.2 Personal Programming 1.3.11 CELLULAR PHONE FEATURES Description This PBX provides features to support the use of cellular phones and other outside destinations with the PBX. Calls can be forwarded from virtual PSs to outside destinations such as cellular phones, and then answered as if the user was at an extension within the PBX.

  • Page 50: Cli (calling Line Identification) Distribution

    1.3 C 1.3.12 CLI (Calling Line Identification) Distribution Description Directs an incoming CO line call to a specific destination when the caller's telephone number matches a number in the System Speed Dialing Table. Each telephone number in this table can be assigned its own Calling Line Identification (CLI) destination.

  • Page 51: Clip (calling Line Identification Presentation)

    1.3 C 2.12.1 [6-1] System Speed Dial → Name → CO Line Access Number + Telephone Number → CLI Destination 2.16.2 [10-2] DIL Table & Port Settings—DIL—CLI Ring for DIL—Day, Lunch, Break, Night 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—CLI Ring for DID—Day, Lunch, Break, Night PT Programming Manual [001] System Speed Dialing Number...

  • Page 52

    1.3 C [COLP Example] Called party 1) Dials (CLIP/COLP No.: "111222333". 111222333) ISDN FWD, IRNA, etc. Caller Answering party (CLIP/COLP No.: 3) "111222444" 111222444) is displayed. 2) Answers the call. CLIP/COLP Number: The telephone numbers sent to the network for CLIP/COLP can be assigned as follows: •...

  • Page 53: Co Line Access

    1.3 C → Supplementary Service—COLP, CLIR, COLR, CNIP, CONP, CNIR, CONR, CF (Rerouting), CT, CCBS, E911 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Subscriber Number 2.8.8 [2-6-1] Numbering Plan—Main—Features → COLR Set / Cancel → CLIR Set / Cancel → Switch CLIP of CO Line / Extension (KX-TDA100/KX-TDA200/KX-TDA600 only) 2.8.17 [2-9] System Options—Option 4—Send CLIP of CO Caller to ISDN—when Transfer (CLIP of Held Party) 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main—CLIP on G-DN Button (KX-...

  • Page 54

    1.3 C Method Description Operation Idle Line Access Selects an idle CO line automatically Dial the Idle Line Access number or (Local Access) from the assigned trunk groups. press a L-CO button. Trunk Group Access Selects an idle CO line from the Dial the Trunk Group Access number and corresponding trunk group.

  • Page 55

    1.3 C Programming References PC Programming Manual 2.7.5 [1-1] Slot—Extension Port—Connection 2.7.11 [1-1] Slot—LCO Port—Connection 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Connection 2.7.17 [1-1] Slot—T1 Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Connection 2.7.20 [1-1] Slot—IP-GW Port—Connection 2.7.24 [1-1] Slot—IP-Extension Port—Connection 2.8.8 [2-6-1] Numbering Plan—Main—Features → Idle Line Access (Local Access) →...

  • Page 56: Co Line Call Limitation

    1.3 C 1.3.15 CO Line Call Limitation Description CO line calls are limited by the following features: Feature Description Extension-to-CO Line Call If a call between an extension user and an outside party is established, Duration the call duration can be restricted by the system timer selected for each trunk group.

  • Page 57: Conference

    For a Conference With Six or More Parties The EECHO or ECHO card is required. Also the echo canceling function should be enabled through system programming. Installation Manual References KX-TDA50 2.5.2 ECHO8 Card (KX-TDA5166) KX-TDA100/KX-TDA200 2.6.4 ECHO16 Card (KX-TDA0166) Feature Manual...

  • Page 58: Confirmation Tone

    1.3 C KX-TDA600 2.8.5 EECHO16 Card (KX-TDA6166) Programming References PC Programming Manual 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone → Unattended Conference—Recall Start Timer → Unattended Conference—Warning Tone Start Timer → Unattended Conference—Disconnect Timer 2.8.11 [2-7-1] Class of Service—COS Settings—TRS—Transfer to CO 2.8.17 [2-9] System Options—Option 3 →...

  • Page 59

    1.3 C Type Description Tone 3-1 Sent before a conversation is established using the Paging feature. Sent to the caller when a conversation is established with an extension in one of the following modes: • Hands-free Answerback mode • Voice-calling mode (Alternate Receiving—Ring/Voice) Sent when making a call to or from a doorphone.

  • Page 60: Consultation Hold

    1.3 C 1.3.18 Consultation Hold Description Consultation Hold is a condition that a party is in, when an extension is calling other parties in order to perform Call Transfer, Conference, or Call Splitting. When the operation is completed or canceled, the consultation hold is released.

  • Page 61: Cpc (calling Party Control) Signal Detection

    1.3 C → 1.20.4 Wireless XDP Parallel Mode → 1.16.1 SMDR (Station Message Detail Recording)—SMDR for Outgoing CO Line Calls → 1.17.5 Time Service—Time Service Switching → 1.11.1 Manager Features → 1.13.28 PT Programming → 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension—SDN Key mode, SDN Walking COS, and assigning SDN buttons through PT programming (KX-TDA100/ KX-TDA200/KX-TDA600 only) Conditions...

  • Page 62: Cti (computer Telephony Integration)

    Computers can be connected to the PBX to provide extension users with access to advanced features such as pop-up display of caller information, computer-based speed dialing, etc. These features are made available by running customized Computer Telephony Integration (CTI) software, available from Panasonic (PC Console, PC Phone, etc.) as well as third-party software vendors.

  • Page 63

    A PC connected directly to an IP-PT cannot be used for First Party Call Control. • IP-PTs do not support the use of PC Phone or PC Console software on a connected PC. Installation Manual References KX-TDA50 2.3.3 IP-GW4 Card (KX-TDA5480) Feature Manual...

  • Page 64

    1.3 C 2.6.4 First Party Call Control CTI Connection 2.9.1 Connection of Peripherals KX-TDA100/KX-TDA200 2.3.1 MPR Card 2.6.6 CTI-LINK Card (KX-TDA0410) 2.7.4 First Party Call Control CTI Connection 2.10.1 Connection of Peripherals KX-TDA600 2.3.1 EMPR Card 2.8.6 CTI-LINK Card (KX-TDA0410) 2.9.4 First Party Call Control CTI Connection 2.12.1 Connection of Peripherals Programming References...

  • Page 65: Data Line Security

    1.4 D 1.4.1 Data Line Security Description Once Data Line Security is set on an extension, communication between the extension and the other party is protected from signals such as Call Waiting, Hold Recall and Executive Busy Override. Extensions which have devices connected to them such as modems or fax machines may set this feature to maintain secure data transmission, by blocking tones or other interruptions during communication.

  • Page 66: Dial Tone

    1.4 D • It is possible to assign the minimum duration of the DTMF signal sent to the CO line port which has been set to DTMF mode. Programming References PC Programming Manual 2.7.11 [1-1] Slot—LCO Port → Dialing Mode →...

  • Page 67: Dial Tone Transfer

    1.4 D Type Description Tone 3A/3B This tone is heard when: • A called PS is being searched for. • The recording time used by the Simplified Voice Message (SVM) feature reaches the limit.* • Any of the features below are performed. •...

  • Page 68

    1.4 D [Example] A hotel guest calls the front desk and asks for the telephone's toll restriction to be lifted in order to make an international call. (3) Make a CO line call (2) Change TRS level Toll Restriction button (1) Call Guest Room Front Desk...

  • Page 69: Did (direct Inward Dialing)

    1.4 D 1.4.5 DID (Direct Inward Dialing) Description Directs a call on a public CO line assigned as a Direct Inward Dialing (DID) line to a preprogrammed destination according to the call's DID number, which is based on the telephone number dialed by the caller. When a call reaches its destination via DID distribution, the DID name will be displayed on the proprietary telephone (PT), allowing extension users to easily see whom a call is directed to.

  • Page 70

    1.4 D [Programming Example: DID Table] CLI Distribution DID Destination Location DID No. Name Lunch Break Night Lunch Break Night Enable Disable Enable Disable 123-4567 Sales Enable Disable Disable Disable 123-2468 Judy → 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only)—DID Number →...

  • Page 71: Dil (direct In Line)

    1.4 D → DID/TIE—Additional Dial 2.16.3 [10-3] DID Table (KX-TDA100/KX-TDA200/KX-TDA600 only) PT Programming Manual [451] DID Number (KX-TDA100/KX-TDA200/KX-TDA600 only) [452] DID Name (KX-TDA100/KX-TDA200/KX-TDA600 only) [453] DID Destination (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.3.12 CLI (Calling Line Identification) Distribution 1.9.10 INCOMING CALL FEATURES 1.17.3 Tenant Service 1.17.5 Time Service 2.1 Capacity of System Resources...

  • Page 72

    1.4 D [Method Flowchart] A CO line call is received. Does the call have Caller ID information and is CLI distribution enabled for the CO line in the current time mode? Has the caller been stored in the System Speed Dialing Table and has a CLI destination been assigned? Is a DIL destination assigned...

  • Page 73: Disa (direct Inward System Access)

    1.4 D The tenant number programmed here is used only to determine the Time Table used by each CO line; selecting tenant 3 means the CO line will use Time Table 3, for example. The VPS trunk group number set here is used to determine the Incoming Call Service and greeting message used by the Voice Processing System (VPS) during the current time mode.

  • Page 74

    1.4 D [Flowchart] A DISA call from an outside party is received. Is there an idle port on an MSG card? The call is routed to an operator, etc. (DISA Intercept when All (DISA Delayed DISA Ports are busy) Answer time expires) The PBX answers the call.

  • Page 75

    1.4 D Continued from previous page No Security None None None None CO Line Security All Security Is the dialed number an extension number or floating extension number? Is the Walking COS/Verification Code Entry feature number dialed? What is the dialed number? Is the correct PIN entered? Other...

  • Page 76

    1.4 D Continued from previous page Continued from previous page What method is assigned for DISA Intercept Is an Intercept Routing DND? Routing Busy destination assigned? The call is routed to Intercept Routing Busy tone the intercept destination. (Intercept Routing Busy) Does the caller Is a DISA Busy press...

  • Page 77

    1.4 D Outgoing Message (OGM) When a call arrives on a DISA line, a prerecorded DISA message will greet and guide the caller. Any extension assigned as the manager can record outgoing messages (OGMs). (→ 1.12.2 OGM (Outgoing Message)) [Programming Example] Outgoing Automated Attendant No.

  • Page 78

    1.4 D DISA Intercept Routing—Busy If the first destination called by the outside party is busy, the call is redirected as follows: The call is redirected to the Intercept Routing—Busy destination assigned to the first destination. If an Intercept Routing—Busy destination is not assigned to the first destination and a prerecorded DISA Busy Message is assigned, the caller will hear the DISA Busy Message.

  • Page 79

    1.4 D • Time Service Switching Mode (→ 1.17.5 Time Service) DISA Automatic Walking COS Registered outside destinations such as cellular phones can be automatically recognized as PBX extensions when calling through DISA. When the Caller ID of a received CO line call matches an entry in the System Speed Dialing Table, the calling telephone is given Walking COS authorization as assigned to the corresponding CLI destination extension.

  • Page 80

    Selecting complex, random PINs that cannot be easily guessed. Changing PINs regularly. • Hardware Requirement: KX-TDA50: An MSG card KX-TDA100/KX-TDA200/KX-TDA600: An OPB card and MSG card • DISA Delayed Answer Time It is possible to set the Delayed Answer time so that the caller will hear a ringback tone within a preprogrammed time period first before hearing an outgoing message (OGM).

  • Page 81

    1.4 D 2.8.4 [2-3] Timers & Counters—DISA / Door / Reminder / U. Conf → DISA—CO-to-CO Call Prolong Counter → DISA—CO-to-CO Call Prolong Time → [210] DISA CO-to-CO Line Call Prolong Time • Automatic DISA Activation DISA can be set through system programming to automatically activate for the following types of CO- to-CO line calls, to enable detection of the end of the call.

  • Page 82

    Each outgoing message (OGM) can be assigned a name through system programming for programming reference. → 2.11.4 [5-3-2] Voice Message—DISA Message—Name → [731] Outgoing Message (OGM) Name Installation Manual References KX-TDA50 2.5.3 MSG2 Card (KX-TDA5191) KX-TDA100/KX-TDA200 2.6.1 OPB3 Card (KX-TDA0190) 2.6.5 MSG4 Card (KX-TDA0191) KX-TDA600 2.8.1 OPB3 Card (KX-TDA0190)

  • Page 83: Display Information

    1.4 D → CO Line Access Number + Telephone Number → CLI Destination 2.16.2 [10-2] DIL Table & Port Settings → DIL—DIL Destination—Day, Lunch, Break, Night → CLI for DIL—CLI Ring for DIL—Day, Lunch, Break, Night PT Programming Manual [209] DISA Delayed Answer Time [210] DISA CO-to-CO Line Call Prolong Time [211] DISA Intercept Time [475] DISA Silence Detection...

  • Page 84

    Caller's number system programming. Line 001: Sales CO line number/name →102:Mike Original Destination, if the call is forwarded Panasonic DID name or number Duration of the current CO line call – Line 001 11:02'28 Only available for KX-TDA100, KX-TDA200, and KX-TDA600.

  • Page 85: Dnd (do Not Disturb)

    1.4 D 1.4.9 DND (Do Not Disturb) Description An extension user can make use of the DND feature. If this feature is set, calls will not arrive at the extension, but will arrive at another extension using the Idle Extension Hunting feature (→ 1.9.9 Idle Extension Hunting) or the Intercept Routing—Busy/DND feature (→...

  • Page 86: Door Open

    An opened door will remain unlocked for a preprogrammed length of time. • KX-TDA50 only The port of the DPH4 card to which the door opener is connected must be assigned through system programming as a door opener port (not a relay port). If it is not, it may not be possible to open the door while on a doorphone call.

  • Page 87: Doorphone Call

    A visitor can use a doorphone to call its preprogrammed destination. Extension users can call a doorphone. Conditions • Hardware Requirement: KX-TDA50: An optional doorphone and a DPH card KX-TDA100/KX-TDA200/KX-TDA600: An optional doorphone, the OPB card and DPH card • Call Destination The destination of doorphone calls can be assigned to each doorphone port for each time mode.

  • Page 88

    1.4 D 2.5.1 DPH4 Card (KX-TDA5161) 2.8.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays KX-TDA100/KX-TDA200 2.6.1 OPB3 Card (KX-TDA0190) 2.6.2 DPH4 Card (KX-TDA0161) 2.9.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays KX-TDA600 2.8.1 OPB3 Card (KX-TDA0190) 2.8.2 DPH4 Card (KX-TDA0161) 2.11.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays Programming References...

  • Page 89: Efa (external Feature Access)

    1.5 E 1.5.1 EFA (External Feature Access) Description Normally, an extension user can only access features within the PBX. However, when performing External Feature Access (EFA) the extension user performs features outside of the PBX, such as using the transfer services of the telephone company or host PBX.

  • Page 90: Emergency Call

    1.5 E 1.5.2 Emergency Call Description An extension user can dial preprogrammed emergency numbers after seizing a CO line regardless of the restrictions imposed on the extension. Conditions • A specified number of emergency numbers can be stored. • Emergency numbers may be called, regardless of Toll Restriction (TRS) level (→ 1.17.6 TRS (Toll Restriction)), even when: –...

  • Page 91

    1.5 E Is receiving an Off-hook Call Announcement (OHCA) (→ 1.12.3 OHCA (Off-hook Call Announcement)) or Whisper OHCA (→ 1.20.3 Whisper OHCA). Is on a conference call (→ 1.3.16 Conference, → 1.13.12 Privacy Release). Is on a doorphone call (→ 1.4.11 Doorphone Call). Is using Live Call Screening (LCS) or Two-way Record (→...

  • Page 92: Extension Dial Lock

    1.5 E 1.5.4 Extension Dial Lock Description An extension user can change the Toll Restriction (TRS) level of the telephone (→ 1.17.6 TRS (Toll Restriction)) so that other users cannot make inappropriate CO line calls. An extension personal identification number (PIN) is used to unlock the telephone (→ 1.5.6 Extension PIN (Personal Identification Number)).

  • Page 93: Extension Feature Clear

    1.5 E 1.5.5 Extension Feature Clear Description Extension users can clear the following features set on their own telephone all at once: Features After Setting Absent Message FWD*/DND* Call Pickup Deny Allow Call Waiting* Enable (Call Waiting tone) Data Line Security Executive Busy Override Deny Allow Log-in/Log-out...

  • Page 94: Extension Pin (personal Identification Number)

    1.5 E Operating Manual References 1.3.25 Extension Feature Clear 1.5.6 Extension PIN (Personal Identification Number) Description Each extension user can be assigned a personal identification number (PIN) through system programming or personal programming (Extension PIN [Personal Identification Number]). This PIN is used to set features or access the extension remotely.

  • Page 95: Extension Port Configuration

    DPT Port: DPT, DSS Console, Panasonic VPS which supports DPT (Digital) Integration, and PT- interface CS (e.g., KX-TDA0141) APT Port (For KX-TDA50 only): APT, DSS Console, and Panasonic VPS which supports DPT (Digital) Integration SLT Port: SLT and Panasonic VPS which supports DTMF Integration...

  • Page 96: External Relay

    1.5 E • A DSS Console or a Panasonic VPS which supports DPT (Digital) Integration can also be connected with an SLT in XDP mode. • APT and SLT in Parallel Mode An APT and an SLT can also be connected to a Super Hybrid port and used in parallel mode.

  • Page 97: External Sensor

    2.11.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays Programming References PC Programming Manual 2.7.29 [1-1] Slot—DPH Card Property (KX-TDA50 only)—For Output (EIO)—Device Type 2.8.8 [2-6-1] Numbering Plan—Main—Features—External Relay Access 2.8.11 [2-7-1] Class of Service—COS Settings—Extension Feature—External Relay Access 2.11.6 [5-4] External Relay...

  • Page 98

    Conditions • Hardware Requirement: KX-TDA50: An external sensor and DPH card KX-TDA100/KX-TDA200/KX-TDA600: An external sensor, OPB card and EIO card • Some devices may be unable to communicate correctly with the PBX. Confirm compatibility with the manufacturer of a device before installing it.

  • Page 99

    2.7.25 [1-1] Slot—OPB (KX-TDA100/KX-TDA200/KX-TDA600 only) → Input Signal Decision Time → Input Signal Detection Reopening Time 2.7.29 [1-1] Slot—DPH Card Property (KX-TDA50 only) → For Sensor (EIO)—Input Signal Decision Time → For Sensor (EIO)—Input Signal Detection Reopening Time 2.8.4 [2-3] Timers & Counters—Miscellaneous—External Sensor—Ring Duration 2.8.16 [2-8-3] Ring Tone Patterns—Call from Others—External Sensor—Ring Tone Pattern Plan 1–8...

  • Page 100: Fixed Buttons

    1.6 F 1.6.1 Fixed Buttons Description Proprietary telephones (PTs), DSS Consoles, and Add-on Key Modules feature a wide variety of feature buttons and Line Access buttons, explained below. Note that certain models do not feature certain buttons. For a description of the buttons found on portable stations (PSs), please refer to the Operating Instructions for each PS.

  • Page 101

    1.6 F Button Usage TRANSFER Used to transfer a call to another party. Used to access a CO line or trunk group when making or receiving a call Flexible CO according to the button's preprogrammed CO Line Access method (Default: S-CO). Can also be customized as a different feature button. INTERCOM Used to make or receive intercom calls.

  • Page 102: Flash/recall/terminate

    1.6 F 1.6.2 Flash/Recall/Terminate Description A proprietary telephone (PT) user can use the FLASH/RECALL button (Flash/Recall mode or Terminate mode) or Terminate button (Terminate mode) to disconnect the current call and originate another call without hanging up. Flash/Recall Mode: Disconnects the line and the extension user hears the dial tone from the line used last. For example, if a CO line call is disconnected, the extension user will hear a new dial tone from the same CO line.

  • Page 103: Flexible Buttons

    1.6 F Feature Manual References 1.6.3 Flexible Buttons 1.6.3 Flexible Buttons Description Flexible buttons are customized through either system or personal programming. The following types of flexible buttons are found on proprietary telephones (PTs), DSS Consoles, Add-on Key Modules, and/or portable stations (PSs): Flexible CO buttons Flexible Direct Station Selection (DSS) buttons...

  • Page 104

    1.6 F Button Usage Terminate Used to disconnect the current call and make another call without hanging up. (→ 1.6.2 Flash/Recall/Terminate) External Feature Access (EFA) Used to send a flash/recall signal to the telephone company or host PBX to access external features. (→...

  • Page 105

    1.6 F Button Usage One-touch Two-way Transfer Used to record a conversation into the mailbox of a specified extension with a one-touch operation. (→ 1.19.4 Voice Mail DPT (Digital) Integration) Live Call Screening (LCS) Used to monitor your own voice mailbox while a caller is leaving a message and, if desired, intercept the call.

  • Page 106: Flexible Numbering/fixed Numbering

    0-9, " ", and "#" [Flexible Numbering Table (available while a dial tone is heard)] Feature Default Pattern 1 Pattern 2 (with (without KX-TDA50/ KX-TDA600 KX-TDA100/ KX-TDA200 Extension Numbering Scheme 1—Leading 1 / 2 10 / 20 Number Extension Numbering Scheme 2—Leading...

  • Page 107

    1.6 F Feature Default Pattern 1 Pattern 2 (with (without KX-TDA50/ KX-TDA600 KX-TDA100/ KX-TDA200 Extension Numbering Scheme 3—Leading 3 / 4 12 / 22 Number Extension Numbering Scheme 4—Leading 4 / 1 13 / 23 Number Extension Numbering Scheme 5—Leading...

  • Page 108

    External BGM on/off Outgoing Message (OGM) playback/ record/clear S-CO Line Access SVM—Personal Greeting Message None None playback/record/clear (KX-TDA50 only) Parallel Telephone Mode set/cancel Group Call Pickup Directed Call Pickup TAFAS—Calls through an External Pager Group Paging answer Automatic Callback Busy cancel/CCBS...

  • Page 109

    1.6 F Feature Default Pattern 1 Pattern 2 (with (without KX-TDA50/ KX-TDA600 KX-TDA100/ KX-TDA200 Account Code Entry Call Hold/Call Hold Retrieve Call Hold Retrieve—Specified with a Holding Extension Number Call Park/Call Park Retrieve Call Hold Retrieve—Specified with a Held CO line Number...

  • Page 110

    1.6 F Feature Default Pattern 1 Pattern 2 (with (without KX-TDA50/ KX-TDA600 KX-TDA100/ KX-TDA200 Automatic Call Waiting set/cancel Executive Busy Override Deny set/cancel Not Ready Mode on/off Log-in/Log-out Incoming Call Queue Monitor Hot Line program/set/cancel Absent Message set/cancel BGM set/cancel...

  • Page 111

    1.6 F [Flexible Numbering Table (available while a busy, DND, or ringback tone is heard)] Feature Default Call Waiting/DND Override 1 or 2* Executive Busy Override Message Waiting set Call Monitor Automatic Callback Busy Alternate Calling—Ring/Voice To use Call Waiting/DND Override, both "1" and "2" are available by default. Fixed Numbering (available while dialing or talking) Features which are available while dialing or talking have fixed numbers, as shown in the following table: [Fixed Numbering Table (available while dialing or talking)]...

  • Page 112: Floating Extension

    DISA (Direct Inward System Access)) Simplified Voice Used to access message boxes associated with SVM card 1: Message (SVM) extensions. (→ 1.16.5 SVM (Simplified Voice (KX-TDA50 only) Message)) SVM card 2: Analog Remote Used to access PC programming mode through a Maintenance modem on a PC.

  • Page 113

    1.6 F Resource Description Default Group Incoming Call Used to call an ICD group. (→ 1.9.1 ICD GROUP 6 + two-digit Distribution (ICD) FEATURES) group number Group PS Ring Group Used to call a PS ring group. (→ 1.13.27 PS Ring —...

  • Page 114: Fwd (call Forwarding)

    1.6 F 1.6.6 FWD (Call Forwarding) Description Extensions and incoming call distribution groups can forward their calls to preset destinations. There are several different types of forwarding, and the circumstances under which the calls are forwarded for each type differ as follows: Type Circumstance All Calls...

  • Page 115

    1.6 F [Available Destinations] Condition for Original Extension/ Destination Availability Incoming Call Distribution Group Wired Extension (PT/SLT/T1-OPX) Only available when FWD to extension is allowed through COS programming.* ICD Group PS Ring Group – Floating Extension no. for SVM – VM Group (DTMF/DPT) –...

  • Page 116

    1.6 F • Multiple FWD Calls can be forwarded up to four times. The following forwarding features are counted as Multiple FWD: – FWD—Busy or Busy/No Answer (when the destination extension is busy), or All Calls – Idle Extension Hunting—Overflow –...

  • Page 117

    1.6 F – Doorphone call – CO line calls via the ELCOT, LCOT, or T1 (LCOT/GCOT) cards [No Answer and Busy/No Answer] • No Answer Time The number of rings before the call is forwarded is programmable for each extension. [Follow Me] •...

  • Page 118: Fwd/dnd Button, Group Fwd Button

    1.6 F 1.6.7 FWD/DND Button, Group FWD Button Description The FWD/DND fixed button, or a customized flexible button, can display the FWD/DND setting status of the extension. Using this button, the FWD status and DND status of the extension can be temporarily set or canceled without clearing FWD destination settings.

  • Page 119

    1.6 F FWD/DND Setting by Fixed FWD/DND button Pressing the fixed FWD/DND button in idle status allows the extension user to set the following items for FWD/DND: • FWD/DND for CO line calls The FWD/DND status for CO line calls to that extension can be switched temporarily without clearing the FWD destination.

  • Page 120

    1.6 F → Group FWD Set / Cancel: Call from Extension 2.8.17 [2-9] System Options—Option 1 → PT Fwd / DND—Fwd LED → PT Fwd / DND—DND LED → PT Fwd / DND—Fwd/DND key mode when Idle 2.10.1 [4-1-1] Wired Extension—Extension Settings—FWD / DND Reference 2.10.5 [4-1-4] Wired Extension—Flexible Button →...

  • Page 121: Group Features

    1.7 G 1.7.1 GROUP FEATURES Description This PBX supports various types of groups. Trunk Group CO lines can be grouped into trunk groups based on carrier, CO line type, etc. Several settings can be assigned on a trunk group basis. All CO lines belonging to a trunk group follow the programming for that trunk group.

  • Page 122

    1.7 G [Example] Call Pickup Group 1 Call Pickup Group 2 Call Pickup Group 3 Extension User Extension User Extension User Extension User Group 1 Group 2 Group 3 Group 4 Extn. 100 Extn. 101 Extn. 102 Extn. 103 Extn. 104 Extn. 105 Extn.

  • Page 123

    1.7 G Assignable Extensions: PT/SLT/PS/T1-OPX/PS ring group (→ 1.9.1 ICD GROUP FEATURES) [Example] ICD Group 1 ICD Group 2 (Floating Extn. No. 601, (Floating Extn. No. 602, Name: Sales 1) Name: Sales 2) Extn. 103 Extn. 104 Extn. 105 Extn. 106 Extn.

  • Page 124

    1.7 G PS Ring Group A PS ring group is a group of PS extensions which receives incoming calls directed to the group. Each group has a floating extension number and name assigned through system programming. One PS can belong to multiple PS ring groups. (→...

  • Page 125: Hands-free Answerback

    1.8 H 1.8.1 Hands-free Answerback Description A proprietary telephone (PT) user with a speakerphone or optional headset can talk to a caller without lifting the handset. If the user receives a call in Hands-free Answerback mode, a hands-free conversation is established in the following method: Type Answering Method...

  • Page 126: Hands-free Operation

    1.8 H 2.10.1 [4-1-1] Wired Extension—Extension Settings → Option 5—Automatic Answer for CO Call → Option 6—Forced Automatic Answer PT Programming Manual None Feature Manual References 1.9.13 Intercom Call Operating Manual References 1.3.30 Hands-free Answerback 1.8.2 Hands-free Operation Description A proprietary telephone (PT) user can talk to another party without lifting the handset. Pressing specific buttons, such as REDIAL, automatically activate hands-free mode.

  • Page 127: Hospitality Features

    1.8 H • To set the headset mode on a digital proprietary telephone (DPT), use personal programming (Headset Operation) or press the Headset button. To set headset mode on an analog proprietary telephone (APT), use the handset/headset selector located on the telephone and/or on the headset. •...

  • Page 128: Host Pbx Access Code (access Code To The Telephone Company From A Host Pbx)

    1.8 H Feature Description Details in Room Status Control An extension designated as the hotel operator can set the • 1.15.3 Room check-in status of rooms remotely. Status Control Remote Wake-up Call An extension designated as the hotel operator can set a •...

  • Page 129

    1.8 H [Example] Telephone Company Host PBX Access Code: 0 Host PBX Outside Party (01-23-4567) Idle Line Access No.: 9 Extn. 101 Extn. 102 Dials "0-01-23-4567". TRG1 Host PBX Access Code Telephone Dials "9-0-01-23-4567". Dials "9-101". Idle Line Idle Line Telephone No.

  • Page 130: Hot Line

    1.8 H • A Host PBX Access Code can be used to record only long distance calls on SMDR when a CO line port is connected directly to the telephone company (not a host PBX). This is allowed when the long distance code (e.g., “0”) is assigned as the Host PBX Access code.

  • Page 131

    1.8 H [204] Hot Line Waiting Time Feature Manual References 2.1 Capacity of System Resources Operating Manual References 1.3.34 Hot Line Feature Manual...

  • Page 132: Icd Group Features

    1.9 I 1.9.1 ICD GROUP FEATURES Description An incoming call distribution group is a group of extensions programmed through system programming. → 2.9.12 [3-5-4] Incoming Call Distribution Group—Member → [620] Incoming Call Distribution Group Member An incoming call distribution group receives calls directed to the group. Each incoming call distribution group has a floating extension number (default: 6 + two-digit group number).

  • Page 133

    1.9 I Calls arrive at ICD group 1. Overflow Feature a) Sends a busy tone (Busy on Busy), or b) Redirects to the overflow destination. Queuing Feature Five calls are waiting in the queue. (Calls 4 through 8) Manual Queue Redirection The longest waiting call in a queue can be redirected to the overflow Call Distribution...

  • Page 134

    1.9 I VIP Call [→ 1.9.8 ICD Group Features—VIP Call] It is possible to assign a priority to incoming call distribution groups so that incoming calls can be received in priority order. Overflow Feature [→ 1.9.5 ICD Group Features—Overflow] A call is redirected to a preprogrammed destination when it cannot be answered or queued (Intercept Routing—Overflow in an Incoming Call Distribution Group).

  • Page 135

    1.9 I automatically registered in the lowest-numbered available member slot for the group. Calls to the group can be received at the extension with no further programming. If no member slots are available for that group, the button cannot be created and an alarm tone will be heard. When creating an ICD Group button in this mode, the user can also specify the delayed ringing settings.

  • Page 136: Icd Group Features—group Call Distribution

    1.9 I 2.1 Capacity of System Resources 1.9.2 ICD Group Features—Group Call Distribution Description Incoming calls directed to an incoming call distribution group are distributed to the member extensions using the selected distribution method until a preprogrammed number of extensions (agents) are busy with calls. When incoming calls exceed the number of available extensions, calls enter a queue (→...

  • Page 137

    1.9 I Distribution Method Description Ring All extensions in the group ring simultaneously. Delayed Ringing: Delayed ringing or no ringing can be programmed for each extension in the group. The call can be answered by pressing the flashing button even if no ring or a delayed time is set. Extn.

  • Page 138

    1.9 I or Priority Hunting.) Calls will arrive at idle buttons until all ICD Group buttons are occupied— additional calls will wait in a queue. Note In method b), if an extension has one or more ICD Group buttons for an incoming call distribution group and all the ICD Group buttons on the extension are occupied, the Group Call Waiting feature for the group will not work at the extension.

  • Page 139: Icd Group Features—log-in/log-out

    1.9 I → Miscellaneous—Maximum No. of Busy Extensions 2.9.11 [3-5-3] Incoming Call Distribution Group—Miscellaneous → Options—Wrap-up Timer based on → Options—Longest Idle Distribution (Optional SD Card Required) 2.9.12 [3-5-4] Incoming Call Distribution Group—Member—Delayed Ring 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 8—Wrap-up Timer 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 8—Wrap-up Timer PT Programming Manual [621] Incoming Call Distribution Group Delayed Ringing...

  • Page 140

    1.9 I • Log-in/Log-out Button A flexible button can be customized as the Log-in/Log-out button with the following parameters: Light Pattern Parameter Usage Red on No parameter Used with an ICD Group button, or with — — the floating extension number of an incoming call distribution group, or with (All).

  • Page 141

    1.9 I • Log-in/Log-out Information on SMDR Log-in/Log-out information can be printed out on SMDR. (→ 1.16.1 SMDR (Station Message Detail Recording)) Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features → Log-in / Log-out → Not Ready (Manual Wrap-up) Mode On / Off 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Miscellaneous →...

  • Page 142: Icd Group Features—outside Destinations

    1.9 I 1.9.4 ICD Group Features—Outside Destinations Description Up to 4 outside parties or destinations at another PBX can be assigned as members of an Incoming Call Distribution (ICD) Group, using the following method: A virtual PS is registered as a member of the ICD Group.

  • Page 143

    1.9 I Conditions [General] • Hardware Requirement The KX-TDA6920, KX-TDA0920 or KX-TDA5920 SD Memory Card for Software Upgrade to Enhanced Version • For this feature to be activated, the following conditions must be met: – A virtual PS is assigned as a member of the ICD Group. (→ 1.19.2 Virtual PS) –...

  • Page 144: Icd Group Features—overflow

    1.9 I → Call from Extension—FWD Destination PT Programming Manual [620] Incoming Call Distribution Group Member [621] Incoming Call Distribution Group Delayed Ringing [622] Incoming Call Distribution Group Floating Extension Number [624] Incoming Call Distribution Group Distribution Method [690] PS Registration Feature Manual References 1.13.16 Private Network Features—Network ICD Group 1.19.2 Virtual PS...

  • Page 145

    1.9 I Destination Availability ICD Group PS Ring Group Floating Extension no. for SVM VM Group (DTMF/DPT) External Pager (TAFAS) DISA Analog/ISDN Remote Maintenance Idle Line Access no. + Phone no. Trunk Group Access no. + Trunk Group no. + Phone no. Extension of Another PBX (via TIE Line, Access with PBX Code) Extension of Another PBX (via TIE Line, Access without PBX Code) Busy on Busy...

  • Page 146: Icd Group Features—queuing

    1.9 I Programming References PC Programming Manual 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings → Overflow Queuing Busy → Overflow No Answer 2.9.10 [3-5-2] Incoming Call Distribution Group—Queuing Time Table PT Programming Manual [625] Destination for Overflow Time Expiration [626] Overflow Time [627] Destination When All Busy [628] Queuing Call Capacity [632] Maximum Number of Agents...

  • Page 147

    We are sorry to Thank you for overflow 30 seconds. the overflow keep you holding. calling Panasonic. destination. destination. All of our agents All of our agents are are still handling currently handling other calls. We other calls.

  • Page 148

    1.9 I Light Pattern Calls in the Waiting Queue Rapid red flashing Over the assigned number for Hurry-up Programming References PC Programming Manual 2.8.8 [2-6-1] Numbering Plan—Main—Features—Incoming Call Queue Monitor 2.8.17 [2-9] System Options—Option 4—Transfer—Transfer to Busy Extension without BSS Operation 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings →...

  • Page 149: Icd Group Features—supervisory

    1.9 I 1.9.7 ICD Group Features—Supervisory Description An extension preprogrammed as a supervisor (supervisor extension) can monitor and control each member's status within the incoming call distribution group using a 6-line display PT. Feature Description Incoming Call Queue Monitor The supervisor extension can monitor the status of an incoming call distribution group with the display.

  • Page 150: Icd Group Features—vip Call

    1.9 I Conditions • Available Extension as a Supervisor Extension One supervisor extension can be assigned for each incoming call distribution group, but it need not belong to the group. One extension can be the supervisor extension of more than one incoming call distribution group. •...

  • Page 151: Idle Extension Hunting

    1.9 I Calls have been distributed by DIL/DID/CLI distribution. (The circled numbers indicate the arrival order of the calls. ) ICD Group 1 ICD Group 2 (for VIPs) (for general customers) Priority Priority Extn. Extn. Extn. Distribution order: From: Group 1 Group 3 Groups 2 and 4 Priority Priority...

  • Page 152

    1.9 I Type Description Circular Hunting An idle extension is searched for in the order specified in the idle extension hunting group in a circular way. Incoming call Busy Extn. Extn. Extn. Extn. Assignment order Terminated Hunting An idle extension is searched for in the order specified in the idle extension hunting group until reaching the last assigned extension.

  • Page 153

    1.9 I • If all the searched extensions are busy: The PBX redirects the call to an overflow destination which can be assigned for each idle extension hunting group and each time mode (day/lunch/break/night) (→ 1.17.5 Time Service). [Available Destination] Destination Availability Wired Extension (PT/SLT/T1-OPX)

  • Page 154: Incoming Call Features

    1.9 I 1.9.10 INCOMING CALL FEATURES Description Each CO line functions as either a public line or a private line. Private lines are used to connect different PBXs and form a private network (→ 1.13.13 PRIVATE NETWORK FEATURES), while public lines connect a PBX to a public network, i.e., the telephone company.

  • Page 155

    1.9 I Feature Description Details in Calling Line Identification Directs a call to its preprogrammed destination if the • 1.3.12 CLI (CLI) Distribution caller's telephone number and its CLI destination (Calling Line has been stored in the System Speed Dialing Table. Identification) Distribution Available Distribution Method for Public CO Lines...

  • Page 156: Intercept Routing

    1.9 I Intercept Routing After a call has been directed to its DIL, DID, or CLI destination, the following Intercept Routing features, if programmed, can redirect the call. Type Description Details in No Answer (IRNA) If a called party does not answer a call within a •...

  • Page 157

    1.9 I Type Description Busy If a called party is already handling a call, new calls are handled as follows: – The call is redirected to the preprogrammed Intercept Routing— Busy destination. – If an Intercept Routing—Busy destination is not enabled, the caller will hear a busy tone.

  • Page 158

    1.9 I When the original destination is: The Available Intercept Destination is: If all DISA ports are busy when a call is made using • DISA DISA, one of the following can be selected through system programming: • Disable: Busy tone is sent to the caller. When using an analog CO line, a ringback tone is sent.

  • Page 159

    1.9 I [Available Intercept Destination] The following can be used as intercept destinations: Intercept Destination Availability Wired Extension (PT/SLT/T1-OPX) ICD Group PS Ring Group Floating Extension no. for SVM VM Group (DTMF/DPT) External Pager (TAFAS) DISA Analog/ISDN Remote Maintenance Idle Line Access no. + Phone no. Trunk Group Access no.

  • Page 160

    1.9 I • Idle Extension Hunting If an extension is a member of an idle extension hunting group, calls to that extension will not be redirected by Intercept Routing—Busy/DND. If the extension is busy or in DND mode, calls to that extension will be redirected to the next extension in the idle extension hunting group.

  • Page 161: Intercept Routing—no Destination

    1.9 I 1.4.7 DISA (Direct Inward System Access) 1.9.12 Intercept Routing—No Destination Description Directs a CO line call to an operator when the call has no assigned destination. Conditions • Intercept Routing—No Destination on/off Intercept Routing—No Destination can be enabled or disabled for the entire system, through system programming.

  • Page 162

    1.9 I • Call Directory—Extension Dialing Display proprietary telephone (PT) users can make a call by selecting stored names on the display. • Alternate Receiving—Ring/Voice A PT user can select to receive intercom calls by ring tone or by voice, through personal programming (Alternate Receiving—Ring/Voice).

  • Page 163: Internal Call Block

    1.9 I 3.1.2 Personal Programming 1.9.14 Internal Call Block Description Internal calls can be restricted based on the Class of Service (COS) assigned to the caller and to the called party. [Programming Example: Internal Call Block] Called Party Caller COS 1 COS 2 COS 3 COS...

  • Page 164: Ip-pt (ip Proprietary Telephone)

    1.9 I Programming References PC Programming Manual 2.8.13 [2-7-3] Class of Service—Internal Call Block—COS Number of the Extension Which Receive the Call from Other Extension 1–64 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main—COS 2.10.1 [4-1-1] Wired Extension—Extension Settings—Main—COS 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.11.1 [5-1] Doorphone—COS 2.11.6 [5-4] External Relay—COS Number PT Programming Manual...

  • Page 165: Isdn (integrated Services Digital Network) Features

    – Using PC Phone or PC Console on a connected PC (→ 1.13.5 PC Console/PC Phone) • The KX-NT265 does not have a secondary Ethernet port. Installation Manual References KX-TDA50 2.4.8 IP-EXT4 Card (KX-TDA5470) KX-TDA100/KX-TDA200 2.5.8 IP-EXT16 Card (KX-TDA0470) KX-TDA600 2.7.8 IP-EXT16 Card (KX-TDA0470)

  • Page 166

    1.9 I ISDN Supplementary Services for Public Network Service Description Details in Direct Inward Dialing Directs a call with a DID number to the • 1.4.5 DID (Direct (DID) preprogrammed destination. Inward Dialing) Calling Line Identification Sends the caller's telephone number to the network •...

  • Page 167

    1.9 I • TEI Assignment Mode The Terminal Endpoint Identifier (TEI) assignment mode can be selected for each ISDN port. • Bearer Mode The bearer mode can be assigned for each ISDN port. → 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 6—ISDN Bearer (KX-TDA100/KX- TDA200/KX-TDA600 only) →...

  • Page 168: Led Indication

    1.10 L 1.10 L 1.10.1 LED Indication Description The LED of the Message/Ringer Lamp and the following buttons (Line Status Buttons and Corresponding Extension Status Button) can indicate line status with a variety of light patterns. Line Status Buttons: S-CO, G-CO, L-CO, INTERCOM, ICD Group, PDN Corresponding Extension Status Button: DSS, SDN Light Pattern of the Message/Ringer Lamp [Digital proprietary telephone (DPT)]...

  • Page 169

    1.10 L Light Pattern of the Line Status Buttons Line Status Incoming Call Intercom Button: Distribution CO Line Status Line Status (ICD) Group Light Line Status Pattern S-CO G-CO L-CO INTERCOM ICD Group Idle Green on This extension is using the line. Slow green This extension is holding the line.

  • Page 170: Line Preference—incoming

    1.10 L Flashing Light Patterns Slow Flashing Moderate Flashing Rapid Flashing Conditions • The incoming CO line call shows on the buttons in the following priority: ICD Group→S-CO→G-CO→L-CO→PDN→INTERCOM • The light pattern of a DSS button for incoming calls can be set to "Off" through system programming. In this case, the DSS button light will not indicate the status of the corresponding extension.

  • Page 171: Line Preference—outgoing

    1.10 L Type Description No Line Selects a line by pressing the desired Line Access button to answer an incoming call after you go off-hook. PDN (KX-TDA100/KX-TDA200/ Answers a call arriving at a Primary Directory Number (PDN) button KX-TDA600 only) simply by going off-hook.

  • Page 172: Local Alarm Information

    1.10 L Method Description ICM/PDN When an extension user goes off-hook, an extension line is selected automatically. If the extension is a PDN extension, the first available Primary Directory number (PDN) button is selected automatically. (→ 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension) Idle Line When an extension user goes off-hook, an idle CO line is selected...

  • Page 173

    The alarm information will be logged on the Station Message Detail Recording (SMDR), if enabled through system programming. • The PBX can be automatically diagnosed at a preprogrammed time everyday. Installation Manual References KX-TDA50 4.1.5 Troubleshooting by Error Log KX-TDA100/KX-TDA200 4.1.5 Troubleshooting by Error Log KX-TDA600 4.1.5 Troubleshooting by Error Log...

  • Page 174

    1.10 L 2.10.5 [4-1-4] Wired Extension—Flexible Button—Type 2.10.13 [4-2-3] Portable Station—Flexible Button—Type 2.10.17 [4-3] DSS Console—Flexible Button—Type 2.17.1 [11-1] Main → SMDR—Print Information—Error Log → Maintenance—Local Alarm Display—Extension 1, Extension 2 → Maintenance—Daily Test Start Time—Set → Maintenance—Daily Test Start Time—Hour →...

  • Page 175: Manager Features

    1.11 M 1.11 M 1.11.1 Manager Features Description An extension assigned as a manager (manager extension) is allowed to use certain features which most extensions cannot. Class of Service (COS) programming determines which extensions are manager extensions and can therefore use the following features: Manager Feature Description...

  • Page 176: Memory Dialing Features

    1.11 M Conditions WARNING There is a risk that fraudulent telephone calls will be made if a third party discovers a personal identification number (PIN) (verification code PIN or extension PIN) of the PBX. The cost of such calls will be billed to the owner/renter of the PBX. To protect the PBX from this kind of fraudulent use, we strongly recommend: Keeping PINs secret.

  • Page 177

    1.11 M Feature Storing Method Details in Speed Personal • Personal Programming • 1.16.3 Speed Dialing Dialing, Personal • Personal Operation with the Feature Number • System Programming (PC Programming only) System System Programming • 1.16.4 Speed Dialing, System Quick Dialing System Programming •...

  • Page 178: Message Waiting

    1.11 M • It is possible to store several feature numbers in one Memory Dialing location. Conditions • CO Line Access by Memory Dialing A specific CO Line Access number can be stored along with the telephone number in Memory Dialing. However, if Memory Dialing is done after selecting a CO line, the stored CO Line Access number is ignored and the telephone number is sent using the selected CO line.

  • Page 179

    1.11 M [SLT Message Waiting Lamp Light Patterns] 5.12 s 1.28 s Pattern 1 5.12 s 1.28 s Pattern 2 512 ms 5.12 s 1.28 s Pattern 3 256 ms 2.56 s 768 ms Pattern 4 256 ms 5.12 s 768 ms Pattern 5 256 ms...

  • Page 180

    1.11 M 10.24 s 10.24 s 20.48 s t=1.28 s Pattern 11 10.24 s 10.24 s 20.48 s t=1.28 s Pattern 12 • It is possible to leave a Message Waiting notification while hearing a ringback tone, busy tone, or DND tone.

  • Page 181: Music On Hold

    External music port 2/Internal audio source 1 or 2 Separate music sources can be assigned for the Music on Hold and the BGM features. [KX-TDA50] Only one external music port is available. If BGM is selected, it is possible to select whether external music port, internal music port 1, or internal music port 2 is assigned to BGM.

  • Page 182: Mute

    → MOH—MOH 1 (Music On Hold 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) → MOH—MOH 2 (Music On Hold 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) → MOH—MOH (Music On Hold) (KX-TDA50 only) PT Programming Manual [710] Music Source Selection for BGM (with the KX-TDA50)/BGM2 (with the KX-TDA100/KX-TDA200/KX- TDA600) [711] Music on Hold Feature Manual References 1.17.3 Tenant Service...

  • Page 183

    1.11 M Operating Manual References 1.3.43 Mute Feature Manual...

  • Page 184: Off-hook Monitor

    1.12 O 1.12 O 1.12.1 Off-hook Monitor Description A proprietary telephone (PT) user can let others listen to the user's conversation through the built-in speaker, during a conversation using the handset. Conditions • Compatible Telephone – KX-T7600 series – KX-T7400 series (display PT only) –...

  • Page 185

    Number of Messages and Recording Time The PBX can record a maximum of 64 (with the KX-TDA100/KX-TDA200/KX-TDA600) or 32 (with the KX-TDA50) messages. The total recording time of the PBX is 8 minutes. • A floating extension number is assigned to each outgoing message (OGM) (default: 5 + two-digit OGM number).

  • Page 186: Ohca (off-hook Call Announcement)

    1.12 O a preprogrammed time period, then the PBX will automatically switch to the recording mode. Installation Manual References KX-TDA50 2.5.3 MSG2 Card (KX-TDA5191) KX-TDA100/KX-TDA200 2.6.1 OPB3 Card (KX-TDA0190) 2.6.5 MSG4 Card (KX-TDA0191) KX-TDA600 2.8.1 OPB3 Card (KX-TDA0190) 2.8.4 MSG4 Card (KX-TDA0191)

  • Page 187: One-touch Dialing

    1.12 O Conditions • Class of Service (COS) programming determines which extensions can use this feature. • This feature is available when the called extension uses one of the following telephones: – KX-T7625, KX-T7630, KX-T7633, KX-T7636 – KX-T7436 – KX-T7235 •...

  • Page 188: Operator Features

    1.12 O Conditions • One-touch Dialing Button Any flexible button can be customized as a One-touch Dialing button. • Full One-touch Dialing There is no need to go off-hook before pressing a One-touch Dialing button. Programming References PC Programming Manual 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 6—Flexible Button Programming Mode 2.10.5 [4-1-4] Wired Extension—Flexible Button →...

  • Page 189

    1.12 O Operator Call: An extension user can call an operator by dialing the preprogrammed Operator Call feature number. The destination of the Operator Call depends on the following: – If the Tenant Service is not in use: The call is directed to the PBX operator according to the corresponding time mode. –...

  • Page 190: Paging

    The announcement is heard through the built-in speakers of proprietary telephones (PTs) and/or external pagers (loudspeakers) which belong to a paging group. (With the KX-TDA100/KX-TDA200/KX-TDA600, up to two external pagers can be connected; with the KX-TDA50, one external pager can be connected.) The paged person can answer the page from a nearby telephone.

  • Page 191

    2.8.19 [2-11-1] Audio Gain—Paging/MOH → Paging—EPG 1 (External Pager 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Paging—EPG 2 (External Pager 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Paging—EPG (External Pager) (KX-TDA50 only) → Paging—Paging Level from PT Speaker 2.9.6 [3-4] Paging Group 2.9.7 [3-4] Paging Group—All Setting 2.9.8 [3-4] Paging Group—External Pager...

  • Page 192: Paralleled Telephone

    1.13 P [640] Extension User Groups of a Paging Group [641] External Pagers of a Paging Group Feature Manual References 2.1 Capacity of System Resources Operating Manual References 1.3.47 Paging 1.13.2 Paralleled Telephone Description By connecting telephones in parallel, you can increase the number of telephones connected to the PBX without adding additional extension cards.

  • Page 193

    1.13 P Features Descriptions Connections Digital XDP Allows a DPT to be connected to another DPT which DPT + DPT is connected to a DPT port or a Super Hybrid port of the PBX. The DPT that is connected directly to the Slave Master PBX is called the “master DPT”, and the DPT...

  • Page 194

    When Digital XDP connection enables the number of DPTs to exceed the maximum capacity that the PBX supports, the following conditions must be met: – KX-TDA50: An MEC card is installed and an additional AC adaptor is connected. – KX-TDA100/KX-TDA200: An MEC card and the PSU-M or PSU-L is installed.

  • Page 195: Password Security

    1.13 P 1.4.3 System Capacity 2.3.2 MEC Card (KX-TDA0105) 2.7.2 Parallel Connection of the Extensions 2.7.3 Digital EXtra Device Port (Digital XDP) Connection KX-TDA600 1.4.3 System Capacity 2.9.2 Parallel Connection of the Extensions 2.9.3 Digital EXtra Device Port (Digital XDP) Connection Programming References PC Programming Manual 2.7.5 [1-1] Slot—Extension Port...

  • Page 196

    1.13 P Password Description Format System Password (PC) for Used with the user-level programmer code to access user- 4 – 10 User level PC programming. The installer can specify which characters system programming settings are available. System Password (PC) for Used with the administrator-level programmer code to Administrator access administrator-level PC programming.

  • Page 197: Pause Insertion

    1.13 P PT Programming Manual None Feature Manual References 2.1 Capacity of System Resources 1.13.4 Pause Insertion Description Pressing a PAUSE button inserts a preprogrammed Pause time between digits of a user-dialed number before the number is dialed out, allowing certain numbers separated with a pause to be used to access certain features (e.g., access codes, seizing idles lines, etc.).

  • Page 198: Pc Console/pc Phone

    1.13 P 1.13.5 PC Console/PC Phone Description CTI First Party Call Control can be conducted by connecting a PC with a KX-T7633 or KX-T7636 DPT (equipped with USB module KX-T7601) through USB ports. By using the KX-TDA0350 PC Phone or KX- TDA0300 PC Console CTI application, users can enjoy many of the KX-TDA series PBX features while utilizing the benefits of a CTI solution.

  • Page 199: Pc Programming

    MPR card, or to the USB port of a USB Module (preinstalled) or attached to a digital proprietary telephone (DPT). USB Module The PC is connected to the PBX via Ethernet cable to the CTI-LINK card or CTI-LINK card (KX-TDA100/KX-TDA200/KX-TDA600 only) IP-GW4 card or IP-GW4 card (KX-TDA50 only). Feature Manual...

  • Page 200

    1.13 P Required Method Description Hardware Modem The PC is connected to a modem, which is then connected RMT card and (connected to SLT to an SLT port of the PBX. Use the modem to dial the user-supplied port)* floating extension number (default: 599) assigned to the modem analog remote maintenance feature to access the PBX.

  • Page 201

    If an extension user sets Walking Extension at the same time that the extension's data is being programmed through PC programming, the data may not be transferred properly. (→ 1.20.2 Walking Extension) Installation Manual References KX-TDA50 2.5.7 RMT Card (KX-TDA5196) 3.1 Overview 3.2 Connection 3.3 Installation of the Hybrid IP-PBX PC Programming Software...

  • Page 202: Pdn (primary Directory Number)/sdn (secondary Directory Number) Extension

    1.13 P [812] ISDN Remote Floating Extension Number (KX-TDA100/KX-TDA200/KX-TDA600 only) Feature Manual References 1.4.5 DID (Direct Inward Dialing) 1.4.6 DIL (Direct In Line) 1.13.3 Password Security 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Description Primary Directory Number (PDN) buttons and Secondary Directory Number (SDN) buttons are ideal for use between bosses and secretaries.

  • Page 203

    1.13 P Calls answered using the SDN button can be transferred to the PDN extension by simply pressing the SDN button once, regardless of the mode. LED Indication The LED patterns and the corresponding status of PDN and SDN buttons are as follows: Light Pattern PDN Button Status SDN Button Status...

  • Page 204

    1.13 P Example of a Secretary Handling Calls for Multiple Bosses The following example shows the LED patterns of the PDN and SDN buttons of each extension and how calls can be handled. 1) A Call From 111-1111 Arrives at Ext. 101 Ext.

  • Page 205

    1.13 P 6) A Call From 333-3333 Arrives at Ext. 102 Ext. 101 (Boss) Ext. 102 (Boss) Ext. 103 (Secretary) PDN buttons SDN buttons PDN buttons SDN buttons PDN buttons SDN buttons (Off) (Off) (Off) (Off) (Off) (Rapid Red Flashing) (Ext.

  • Page 206

    1.13 P • When a PDN extension is a member of an ICD group in Ring Distribution method, and an incoming call arrives at the ICD group, the incoming call status will not appear on the LEDs of the corresponding SDN extensions (→...

  • Page 207: Power Failure Restart

    1.13 P 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 9—PDN Delayed Ringing (KX-TDA100/KX- TDA200/KX-TDA600 only) 2.10.5 [4-1-4] Wired Extension—Flexible Button → Type → Parameter Selection (for SDN) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Ext. No. / Floating Ext. No. (for SDN) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Optional Parameter (Ringing Tone Type Number) (for Loop CO, Single CO, Group CO, ICD Group, SDN) 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 9—PDN Delayed Ringing (KX-TDA100/KX- TDA200/KX-TDA600 only)

  • Page 208: Power Failure Transfer

    1.13 P Conditions • In the event of a power failure, PBX memory is protected by a factory-installed lithium battery. There is no memory loss except the memories of Automatic Callback Busy (Camp-on) (→ 1.1.4 Automatic Callback Busy (Camp-on)) and Call Park (→ 1.3.5 Call Park). 1.13.9 Power Failure Transfer Description If the power supply to the PBX fails, specific single line telephones (SLTs) are automatically connected to...

  • Page 209: Predialing

    Power Failure Connection. However, if no special programming is performed, the connection will be dropped when power returns. [KX-TDA50] • Ports 1 and 2 of the LCOT card installed in the least slot number and ports 1 and 2 of the Super Hybrid ports can be used for Power Failure Connections.

  • Page 210: Printing Message

    1.13 P 1.13.11 Printing Message Description An extension user can select a message to be output on SMDR. Up to eight messages can be preprogrammed in the Printing Message table, and are available to all extensions connected to the PBX. A message can contain the "%"...

  • Page 211: Private Network Features

    1.13 P Conditions • S-CO Button Any flexible button can be customized as the S-CO button. • Privacy Release Time Privacy is released for five seconds to allow the conversation to be joined. • This feature overrides Data Line Security (→ 1.4.1 Data Line Security) and Executive Busy Override Deny (→...

  • Page 212

    1.13 P Explanation TIE Line Routing Flowchart [Making a TIE Line Call from an Extension] A TIE line call is made using one of the following methods: PBX Code Method: TIE Line Access Number + PBX Code + (Extension Number or Other Digits) Extension Number Method: Extension Number Is the dialed number either...

  • Page 213

    1.13 P [Receiving a Call through a TIE Line] A call is received via a TIE line. The Incoming Number Modification Table checks the CO line port carrying the call, and modifies the number according to the method assigned for that port. PBX Code Method Extension Number Method (Access with PBX Code)

  • Page 214

    1.13 P Making a TIE Line Call One of the following two methods can be used to make a TIE line call. Extension Number Method (Access without PBX Code) Dial the [Extension Number] only. [Example] PBX-1 PBX-2 PBX-3 TIE Line TIE Line Interface Interface Interface...

  • Page 215

    1.13 P PBX Code Method (Access with PBX Code) Dial the [TIE Line Access Number] + [PBX Code] + [Extension Number]. → 2.8.8 [2-6-1] Numbering Plan—Main—Features—TIE Line Access → 2.15.1 [9-1] TIE Table—Own PBX Code [Example] PBX-1 PBX-2 PBX-3 PBX Code 951 PBX Code 952 PBX Code 953 TIE Line...

  • Page 216

    1.13 P Incoming CO Line Call Destination Assignment [Example] Telephone Company CO Line TIE Line Network PBX-1 PBX-2 CO Line DID No: 4567 Destination: 2011 TIE Line Interface Interface Outside Caller Extn. 2011 Dials "123-4567". Extn. 1011 Explanation: An outside caller dials "123-4567". The call is sent to extension "2011" of PBX-2 through the TIE line according to the assignment of the DID or DIL call destination of PBX-1.

  • Page 217

    1.13 P FWD/Call Transfer/Intercept Routing to the TIE Line [Example] Telephone Company CO Line TIE Line Network CO Line PBX Code 952 PBX Code 952 PBX-1 PBX-2 TIE Line Interface Interface Forwarded/Transferred /Intercepted to 7-952-2011 Outside Caller Extn. 1011 Extn. 2011 Dials "123-4567".

  • Page 218

    1.13 P TIE-to-CO Line Access The PBX sends TIE line calls to the CO lines of another PBX through the TIE lines. CO Line Call through Other PBXs—by Making a TIE Line Call Method [Example] <Extension Number Method (Access without PBX Code)> Telephone Company CO Line CO Line...

  • Page 219

    1.13 P <PBX Code Method (Access with PBX Code)> Telephone Company CO Line CO Line 211-4567 TIE Line Network PBX-1 PBX-2 PBX Code 952 PBX Code 951 952-9-211-4567 TIE Line Interface Interface TRG 2 Outside Party Extn. 1011 Extn. 1011 (211-4567) Dials "7-952-9-211-4567"...

  • Page 220

    1.13 P CO Line Call through Other PBXs—by the ARS feature [Example] <Extension Number Method (Access without PBX Code)> Telephone Company CO Line CO Line 211-4567 TIE Line Network PBX-2 PBX-1 9-211-4567 TIE Line Interface Interface TRG 2 Outside Party Extn.

  • Page 221

    1.13 P <PBX Code Method (Access with PBX Code)> Telephone Company CO Line CO Line 211-4567 TIE Line Network PBX-1 PBX-2 PBX Code 952 PBX Code 951 952-9-211-4567 TIE Line Interface Interface TRG 2 Outside Party Extn. 1011 Extn. 1011 (211-4567) Dials "9-211-4567".

  • Page 222

    1.13 P Blocking CO line calls made through another PBX and how to override it: Whether an incoming TIE line call can make a CO line call through this PBX (i.e., PBX-2), depends on the COS that is assigned to the trunk group of this PBX, that the incoming TIE line is connected to.

  • Page 223

    1.13 P [Example] <Extension Number Method (Access Without PBX Code)> Telephone Company CO Line CO Line 211-4567 TRG 3 TIE Line Network of PBX-2 PBX-1 PBX-2 9-211-4567 TRG 1 (COS 3) of PBX-2 TIE Line Interface Interface TRG 2 of PBX-1 verification code entry feature no.

  • Page 224

    1.13 P <PBX Code Method (Access with PBX Code)> Telephone Company CO Line CO Line 211-4567 TRG 3 TIE Line Network of PBX-2 PBX-1 PBX-2 PBX Code 951 PBX Code 952 952-9-211-4567 TRG 1 (COS 3) of PBX-2 TIE Line Interface Interface TRG 2...

  • Page 225

    1.13 P FWD/Call Transfer/Intercept Routing to the CO Line [Example] Telephone Company Forwarded/Transferred/ Intercepted to 211-4567 CO Line CO Line TIE Line Network PBX-2 PBX-1 PBX Code 952 PBX Code 951 952-1011 TIE Line Interface Interface Outside Party Extn. 1011 Extn.

  • Page 226

    1.13 P CO Line-to-TIE-to-CO Line Access An outside caller can be connected to an outside party through the TIE line by using the DISA feature. [Example] Telephone Company Telephone Company (area code: 222) (area code: 333) CO Line CO Line CO Line 123-4567 CO Line...

  • Page 227

    1.13 P TIE Line Routing and Modification Table To Make a TIE Line Call The TIE Line Routing and Modification Table is referenced by the PBX to identify the CO line route when an extension user makes a TIE line call. It is necessary to make unified tables with all PBXs in the TIE line network.

  • Page 228

    1.13 P [TIE Line Routing and Modification Table of PBX-1] Priority 1 Priority 2 Dial Modification Dial Modification Location Leading Removed Removed No. of Added No. No. of Added No. Digits Digits Explanation: Location 01: The hunt sequence by dialing [2XXX]: The 1st route—trunk group (TRG) 1 Sending no.

  • Page 229

    1.13 P PBX Code Method (Access with PBX Code) → 2.8.8 [2-6-1] Numbering Plan—Main—Features—TIE Line Access → 2.15.1 [9-1] TIE Table—Own PBX Code TIE Line Network PBX-4 PBX-3 PBX Code 953 PBX Code 954 Extn. xxxx Extn. xxxx b-2nd) 953#-xxxx 954#-xxxx If you dial: TRG 2...

  • Page 230

    1.13 P Location 03: The hunt sequence by dialing [7+PBX Code 954+XXXX]: The 1st route — trunk group (TRG) 2 Sending no. to PBX-4: 954#–XXXX To Receive a TIE Line Call Extension Number Method (Access without PBX Code) [Example] A TIE line call is sent to PBX-2 from PBX-1. If the number sent from PBX-1 is an TIE Line Network extension number of PBX-2 (e.g., 2011), the...

  • Page 231

    1.13 P PBX Code Method (Access with PBX Code) [Example] A TIE line call is sent to PBX-2 from PBX-1. If the number sent from PBX- TIE Line Network 1 has the PBX code of PBX-2 "952", PBX-4 PBX-3 PBX Code 953 PBX Code 954 the call will be received at the corresponding extension of PBX-2...

  • Page 232

    (QSIG) connection in a TIE line network must have the port on one Panasonic Hybrid IP-PBX assigned as a master port, and the port on the other Panasonic Hybrid IP-PBX assigned as a slave port. [TIE Line Network Connection Example] Extn.1000...

  • Page 233

    1.13 P Case 2: Extension 1012 of PBX-1 dials extension number "1033". → The dialed number is not found at the local PBX, so the call is redirected to the specified TIE Line, and extension 1012 of PBX-1 is connected to extension 1033 of PBX-2. Case 3: A public CO line call directed to extension 1033 arrives at PBX-1.

  • Page 234: Private Network Features—centralized Voice Mail

    1.13 P Feature Manual References 1.1.3 ARS (Automatic Route Selection) 1.3.8 Call Transfer 1.4.7 DISA (Direct Inward System Access) 1.6.4 Flexible Numbering/Fixed Numbering 1.6.6 FWD (Call Forwarding) 1.9.11 Intercept Routing 1.17.6 TRS (Toll Restriction) 2.1 Capacity of System Resources Operating Manual References 1.2.1 Making Calls 1.13.14 Private Network Features—Centralized Voice Mail Description...

  • Page 235

    1.13 P Feature Remote VPS Local VPS Remote FWD Setting by the VM VM LCD Message clear on Check Out Voice message number display [CO Line Call Answered by the VPS, Transferred to Extension at Other PBX] Outside Caller Telephone Company TIE Line Network PBX-1 PBX-2...

  • Page 236

    1.13 P [CO Line Call to an Extension Not Answered, Forwarded to Mailbox] Outside Caller Telephone Company TIE Line Network PBX-1 PBX-2 PBX-3 Private network PBX-4 PBX-5 PBX-6 PBX-7 PBX-8 Mailbox 201: Mailbox 101 "Hello. I am not at Extn. Mailbox 201 my desk right now."...

  • Page 237: Private Network Features—ndss (network Direct Station Selection)

    1.13 P • When PBXs are connected by PRI23 cards, the card must be set to ISDN Standard mode. If set to T1 mode, the card must be removed and reinstalled to allow the mode to be changed. When the card is reinserted into the PBX, it is possible to choose whether the card will be set to T1 mode or ISDN Standard mode.

  • Page 238

    1.13 P [Example Network] 2001 (busy) 1001 (busy) PBX-1 PBX-2 Network ID 1 Network ID 2 Monitor 2002 (idle) extension Extn. 2001 Extn. 2002 Extn. 4001 4001 (idle) PBX-3 PBX-4 Network ID 0 Network ID 3 Monitor extension Extn. 1001 Extn.

  • Page 239

    1.13 P Set the transmission setting for each port according to the layout of your network, so that extension status information can travel between NDSS monitor PBXs. [Example ISDN Network Port Setting] PBX-1 PBX-2 Network ID 1 Network ID 0 4001 NDSS Idle Busy...

  • Page 240

    1.13 P can be registered. Only extensions that have been registered here can be assigned to NDSS buttons. → 2.15.4 [9-4] NDSS Key Table—Network Extension No. Network Monitor Extensions Table Index No. Network Extn. No. Network Extn. Name 2001 Branch 1: T. Jones 2002 Branch 1: M.

  • Page 241

    1.13 P • It is only possible to assign NDSS buttons for extensions that have been previously registered in the Network Monitor Extensions Table. 2.10.5 [4-1-4] Wired Extension—Flexible Button → Type → Dial (for NDSS) 2.10.13 [4-2-3] Portable Station—Flexible Button →...

  • Page 242: Private Network Features—network Icd Group

    1.13 P → Dial (for NDSS) 2.10.15 [4-2-4] Portable Station—NDSS Link Data - Send 2.10.17 [4-3] DSS Console—Flexible Button → Type → Dial (for NDSS) 2.15.2 [9-2] Network Data Transmission 2.15.3 [9-3] Network Operator (VoIP) 2.15.4 [9-4] NDSS Key Table PT Programming Manual [511] Manager Assignment Feature Manual References...

  • Page 243

    1.13 P Telephone Company PBX-1 PBX-2 Group Private network ICD Group PBX-3 Group Virtual PS 1 PBX-4 Virtual PS 2 Group Virtual PS 3 PBX-5 Group Virtual PS 4 Conditions • Hardware Requirement The KX-TDA6920, KX-TDA0920 or KX-TDA5920 SD Memory Card for Software Upgrade to Enhanced Version must be installed in the PBX that will support virtual PSs.

  • Page 244: Private Network Features—ps Roaming By Network Icd Group

    1.13 P 1.13.17 Private Network Features—PS Roaming by Network ICD Group Description One PS can be registered to up to 4 PBXs in a private network, and a Network ICD group created for the PS at each PBX, with virtual PSs set to forward to the other PBXs in the network. When a call to the PS is received at one of the PBXs, the call rings simultaneously at all PBXs in the network to which that PS is registered.

  • Page 245: Private Network Features—qsig

    1.13 P • If no signal is received from a PS for the preprogrammed length of time when an incoming call is received, the communication status of the PS is set to Out of Range, if enabled through system programming. •...

  • Page 246

    1.13 P Service Description & Reference Connected Line Identification Sends the number of the answered party to the QSIG network when Presentation (COLP) answering a call. → 1.13.21 Private Network Features—QSIG—CLIP/COLP (Calling/ Connected Line Identification Presentation) and CNIP/CONP (Calling/ Connected Name Identification Presentation) Calling Line Identification Prevents the caller's CLI being presented to the called party by the Restriction (CLIR)

  • Page 247: Private Network Features—qsig—ccbs (completion Of Calls To Busy Subscriber)

    1.13 P Service Description & Reference Call Transfer (CT)—by QSIG Transfers a call to the QSIG network. → 1.13.22 Private Network Features—QSIG—CT (Call Transfer) Completion of Calls to Busy Receives callback ringing when a busy called party on the QSIG Subscriber (CCBS)—by QSIG network becomes free.

  • Page 248: Private Network Features—qsig—cf (call Forwarding)

    1.13 P • For ISDN, receiving and sending CCBS must be enabled individually on an ISDN (QSIG) port basis through system programming. • An extension user can set only one CCBS. The last setting is effective. • The CCBS setting is canceled if there is no callback ringing within 60 minutes or callback ringing is not answered within 10 seconds.

  • Page 249

    1.13 P [Example] Extension 1000 of PBX-1 dials extension QSIG number "2000", and the call is sent to PBX-1 PBX-2 extension "2000" of PBX-2 through QSIG Call to 2000 network. The call is forwarded to the forward destination of CO line calls of extension Forwarded 2000, which is extension "1001"...

  • Page 250

    1.13 P 1.13.21 Private Network Features—QSIG—CLIP/COLP (Calling/ Connected Line Identification Presentation) and CNIP/ CONP (Calling/Connected Name Identification Presentation) Description Calling Line Identification Presentation (CLIP) and Calling Name Identification Presentation (CNIP): The PBX can send a preprogrammed extension number and/or name to the QSIG network when an extension user makes a call.

  • Page 251

    1.13 P Calling/Connected Line Identification Restriction (CLIR/COLR): It is possible for each extension to restrict the sending of its extension number to the QSIG network by pressing the CLIR button, COLR button, or entering the feature number. Calling Name Identification Restriction (CNIR) and Connected Name Identification Restriction (CONR) It is possible for each extension to restrict the sending of its extension name to the QSIG network.

  • Page 252: Private Network Features—qsig—ct (call Transfer)

    1.13 P 1.13.22 Private Network Features—QSIG—CT (Call Transfer) Description The PBX transfers the call to a destination extension in another PBX in the QSIG network. If the same trunk group is used for the incoming call and the transferred call, the following situation will be possible.

  • Page 253: Private Network Features—voip (voice Over Internet Protocol)

    1.13 P 2.7.14 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—Supplementary Service—COLP, CLIR, COLR, CNIP, CONP, CNIR, CONR, CF (Rerouting), CT, CCBS, E911 2.7.19 [1-1] Slot—IP-GW Card Property—QSIG-CT 2.7.32 [1-3] Option—New Card Installation—ISDN Standard Mode for PRI23 Card (KX-TDA100/KX- TDA200/KX-TDA600 only) PT Programming Manual None Operating Manual References 1.3.11 Call Transfer...

  • Page 254

    1.13 P For receiving a call: TIE line service programming [TIE Line Routing and Modification Table] Priority 1 Priority 2 Dial Modification Dial Modification Location Leading Removed Removed No. of Added No. No. of Added No. Digits Digits 2 (VoIP port) [Explanation] Calls to destinations with leading number "2"...

  • Page 255

    1.13 P [Example] Telephone Company Telephone Company (area code: 222) (area code: 333) 1-333-123-1011 PBX-1 PBX-2 Private IP IP-GW IP-GW Extn .1011 Extn .1000 Network (333-123-1011) Dials PBX code: 30 PBX code: 20 "7-20-1011". The leading numbers of extensions accessed through the VoIP network are added as entries to the Quick Dialing table, in addition to being registered as Other PBX Extension Numbers, as shown below: [Programming Example] Number to dial to call an extension at another PBX using VoIP network:...

  • Page 256: Ps Connection

    1.13 P 1.13.24 PS Connection Description A Panasonic KX-TD7680 or KX-TD7690 portable station (PS) can be used in place of a proprietary telephone (PT), providing wireless access to PBX features and call handling. Registration Before a PS can be used, it must be registered with the PBX through system programming and assigned an extension number.

  • Page 257

    A PS can only be assigned an extension number of 4 digits or less. [KX-TDA600] • When an EMEC card is installed, the total number of PSs that the PBX supports will increase. Installation Manual References KX-TDA50 2.7 Connection of 2.4 GHz Portable Stations KX-TDA100/KX-TDA200 Feature Manual...

  • Page 258: Ps Directory

    1.13 P 2.8 Connection of 2.4 GHz Portable Stations KX-TDA600 2.10 Connection of 2.4 GHz Portable Stations 2.3.2 EMEC Card (KX-TDA6105) Programming References PC Programming Manual 2.7.31 [1-2] Portable Station PT Programming Manual [690] PS Registration [691] PS Termination [692] Personal Identification Number (PIN) for PS Registration Feature Manual References 1.6.4 Flexible Numbering/Fixed Numbering 1.13.25 PS Directory...

  • Page 259: Ps Feature Buttons

    1.13 P 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—Extension Name PT Programming Manual [001] System Speed Dialing Number [002] System Speed Dialing Name [004] Extension Name 1.13.26 PS Feature Buttons Description Although a portable station (PS) does not feature as many buttons as a proprietary telephone (PT), a PS can be customized to give a PS user access to PBX features, just as the flexible buttons on a PT can be customized.

  • Page 260

    1.13 P [Programming Example: PS Ring Group] PS Ring Group 1 PS Ring Group 2 PS Ring Group 3 Floating Extension No. Group Name Sales 1 Sales 2 Customer Service Incoming CO Line Caller ID Called Number Caller ID Information Display PS 1 PS 2 PS 3...

  • Page 261

    CSs. When a call arrives, each CS uses one channel to ring all member PSs within its range. The ICD group has one proprietary telephone (PT) member, as well as four (for KX-TDA50) or six (for KX- TDA100/KX-TDA200/KX-TDA600) PS members which are in range of two different CSs. When a call arrives, each CS uses both (for KX-TDA50) or all three (for KX-TDA100/KX-TDA200/KX-TDA600) of its channels to ring each of the member PSs within its range.

  • Page 262

    If a PS in a PS ring group has set the DND feature for CO line calls, the PS will not ring for CO line calls as well as intercom calls directed to the group. • Compatible PS A Panasonic KX-TD7680 and KX-TD7690 can be assigned to PS ring groups. Programming References PC Programming Manual 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Main—Distribution Method 2.9.21 [3-9] PS Ring Group...

  • Page 263: Pt Programming

    1.13 P 1.13.28 PT Programming Description A proprietary telephone (PT) can be used to customize the settings of the PBX or of an extension, using the following programming features: Programming Authorized Description Example Type Programmer Personal Used by an extension user to PT Display Language, Extension user Programming...

  • Page 264

    1.13 P Programming References PC Programming Manual 2.8.11 [2-7-1] Class of Service—COS Settings—Extension Feature—Programming Mode Level 2.17.1 [11-1] Main—Password → System Password - PT Programming—Prog ** : User Level → System Password - PT Programming—Prog *# : Administrator Level → Manager Password - PT Programming—Prog *1 PT Programming Manual 2.1 PT Programming [516] Programming Mode Limitation...

  • Page 265: Quick Dialing

    Installing an EMEC/MEC card in the PBX allows a separate set of entries with a maximum of 8 digits to be programmed. Conditions • Quick Dialing numbers follow the flexible numbering plan. (→ 1.6.4 Flexible Numbering/Fixed Numbering) Installation Manual References KX-TDA50 2.5.6 MEC Card (KX-TDA5105) KX-TDA100/KX-TDA200 2.3.2 MEC Card (KX-TDA0105) KX-TDA600 2.3.2 EMEC Card (KX-TDA6105) Programming References PC Programming Manual 2.8.9 [2-6-2] Numbering Plan—Quick Dial...

  • Page 266: Quick Setup

    1.14 Q Feature Manual References 2.1 Capacity of System Resources Operating Manual References 1.3.57 Quick Dialing 1.14.2 Quick Setup Description Basic PBX parameters can be programmed the first time the PBX is accessed with a PC using the KX-TDA Maintenance Console software. When the PBX is accessed with the Installer Level Programmer Code and default password (→...

  • Page 267

    1.14 Q Item Parameter Description Operator The feature number for Operator Call can be selected. Local Access 0/1/9 The feature number for Idle Line Access can be selected. Remote Remote Enter the complete telephone number of the PBX (including the Maintenance Maintenance Dial country code).

  • Page 268: Redial, Last Number

    1.15 R 1.15 R 1.15.1 Redial, Last Number Description [General] Every extension automatically saves the last external telephone number dialed, allowing the same number to be dialed again. Outgoing Call Log Information on outgoing CO line calls is automatically logged at each extension. Users of display PTs can view details of a preset number of recently dialed telephone numbers, and easily call the same outside party again.

  • Page 269: Ring Tone Pattern Selection

    1.15 R Programming References PC Programming Manual 2.8.4 [2-3] Timers & Counters—Dial / IRNA / Recall / Tone → Automatic Redial—Repeat Counter (KX-TDA100/KX-TDA200/KX-TDA600 only) → Automatic Redial—Redial Call Ring Duration (KX-TDA100/KX-TDA200/KX-TDA600 only) → Automatic Redial—Analog CO Mute / Busy Detection Timer (KX-TDA100/KX-TDA200/KX- TDA600 only) 2.8.8 [2-6-1] Numbering Plan—Main—Features—Redial 2.8.17 [2-9] System Options—Option 2...

  • Page 270

    1.15 R [Ring Tone Pattern Table] The ring tone pattern table is categorized into three parts, each containing a specified number of pattern plans. The ring tone pattern table is categorized as follows: • Incoming CO Line Calls: each pattern plan can assign a ring tone pattern for each trunk group. →...

  • Page 271: Room Status Control

    1.15 R Feature Manual References 2.1 Capacity of System Resources Operating Manual References 3.1.4 Customizing the Buttons—To distinguish the ringing tones for each CO, ICD Group, INTERCOM, PDN, or SDN button (Digital proprietary telephone only) 1.15.3 Room Status Control Description A proprietary telephone (PT) with a 6-line display designated as the hotel operator extension can be used to view and change the check-in and check-out status of guest rooms associated with extensions.

  • Page 272

    1.15 R [Example Use: Check-in Mode] DSS button Room101 Rooms 101 and 103 are currently in Room102 check-in status. Room103 Room104 Check-in button Room105 Check-out button When in Room Status Control mode, the hotel operator's extension is treated as a busy extension, similar to when performing PT programming.

  • Page 273: Smdr (station Message Detail Recording)

    1.16 S 1.16 S 1.16.1 SMDR (Station Message Detail Recording) Description Automatically logs detailed information for each extension. SMDR Output Port The Serial Interface (RS-232C) port can be used to output Station Message Detail Recording (SMDR) data to a PC, printer, etc. SMDR Output Data The following data can be recorded and sent to the SMDR output port: CO line call information (incoming/outgoing)

  • Page 274

    1.16 S Pattern A: 80-column text without call charge information Date Time Dial Number Ring Duration ACC Code (8 digits) (25) (10) 01/02/02 10:03AM 1200 <I>12345678901234567890 5'15 00:00'00 01/02/02 10:07AM 1200 <I> 0'05 00:01'05 9876543210 01/02/02 10:15AM 1200 1234567890123456 00:01'05 9876543210 01/02/02 10:30AM...

  • Page 275

    1.16 S [Explanation] The following table explains the types of data logged by SMDR. Each description below refers to data indicated above by the numbers in the parentheses. Number in Data Description the Pattern Date Shows the date of the call. Time Shows the end time of a call as hour/minute/AM or PM.

  • Page 276

    1.16 S Number in Data Description the Pattern Dial Number [CO Line Call] Outgoing CO Line Call Shows the dialed telephone number. Digits shown are as follows: 0 through 9, , # P: Pause F: External Feature Access (EFA) signal =: Host PBX Access code (→...

  • Page 277

    1.16 S Number in Data Description the Pattern CD (Condition Shows other call information using the following codes: Code) TR: Transfer FW: Call Forwarding (FWD) to CO line D0: Call using Direct Inward System Access (DISA) or TIE line service RM: Remote maintenance (modem) (→...

  • Page 278

    1.16 S Item Description DID number Controls whether the DID numbers, names, numbers and names, or nothing is shown. If "none" is selected, <D> will not be shown. → 2.17.1 [11-1] Main—SMDR Options—SMDR Options—DID Number & Name (KX-TDA100/KX-TDA200/KX-TDA600) Secret dialing Controls the display of secret dialing, when ARS dial above, is set to show ARS-modified numbers.

  • Page 279

    1.16 S Skip Perforation: determines the number of lines to be skipped at the end of every page. → 2.17.1 [11-1] Main—SMDR—SMDR Format—Blank Footer Length (Number of Lines) → [803] SMDR Skip Perforation The page length should be at least four lines longer than the skip perforation length. Explanation: Page Length...

  • Page 280

    “0” to be dialed first) are treated as extensions of the telephone company and do not get recorded on SMDR, because in this case this PBX recognizes the telephone company as the host PBX. Therefore, only long distance calls are recorded on SMDR. Installation Manual References KX-TDA50 2.9.1 Connection of Peripherals KX-TDA100/KX-TDA200 2.10.1 Connection of Peripherals KX-TDA600 2.3.2 EMEC Card (KX-TDA6105)

  • Page 281: Special Carrier Access Code

    1.16 S [803] SMDR Skip Perforation [804] SMDR Outgoing Call Printing [805] SMDR Incoming Call Printing Feature Manual References 1.3.8 Call Transfer 1.3.19 COS (Class of Service) 1.4.5 DID (Direct Inward Dialing) 1.4.7 DISA (Direct Inward System Access) 1.8.5 Host PBX Access Code (Access Code to the Telephone Company from a Host PBX) 1.9.3 ICD Group Features—Log-in/Log-out 1.13.13 PRIVATE NETWORK FEATURES 2.1 Capacity of System Resources...

  • Page 282: Speed Dialing, Personal

    (→ 1.5.6 Extension PIN (Personal Identification Number)) • When an EMEC or MEC card is installed in the PBX, the number of entries programmable for each extension is increased. Installation Manual References KX-TDA50 2.5.6 MEC Card (KX-TDA5105) KX-TDA100/KX-TDA200 2.3.2 MEC Card (KX-TDA0105) KX-TDA600 2.3.2 EMEC Card (KX-TDA6105)

  • Page 283: Speed Dialing, System

    When an EMEC or MEC card is installed in the PBX, System Speed Dialing numbers can be assigned separately for each tenant, depending on the PBX used: – KX-TDA50: Each tenant can select to use either the original set of common System Speed Dialing numbers or the additional common set. –...

  • Page 284: Svm (simplified Voice Message)

    Installing an optional Simplified Voice Message (SVM) card in the PBX allows the PBX to provide answering machine features. This feature is only available for the KX-TDA50. Features for an extension user with a message box: An extension user can record a personal greeting message to greet a caller and ask him to leave a voice message.

  • Page 285

    1.16 S [Example] SVM Card 1: Floating Extension No. 591 (default) 2 CH Message Box for Message Box for Message Box for Message Box for Extn. 101 Extn. 102 Extn. 103 Extn. 210 SVM Card 2: Floating Extension No. 592 (default) 2 CH Message Box for Extn.

  • Page 286

    1.16 S In day mode: the call will be redirected to extension 102. In lunch/break/night mode: the call will be redirected to the SVM card, and a voice message will be recorded to the message box. If a call is received at extension 301 (operator), the call will only be redirected to the SVM card in night mode. If both FWD and Intercept Routing features are set for an extension, the FWD setting has priority.

  • Page 287

    1.16 S received and the type of telephone used. Only users of a 6-line display PT can view all of the above information. Checking Voice Messages Left by Callers When an extension user accesses his message box, the most recent unplayed voice message is played first.

  • Page 288

    1.16 S • If an extension user tries to clear a voice message shown on the display while the message box is already in use, the extension user will hear a notification tone. • Voice message recording will stop when: a caller hangs up.

  • Page 289

    → Simplified Voice Message Tone Detection—Continuous (KX-TDA50 only) → Simplified Voice Message Tone Detection—Cyclic (KX-TDA50 only) 2.10.1 [4-1-1] Wired Extension—Extension Settings—Option 6—Display Lock / SVM Lock (KX-TDA50 only) 2.10.9 [4-1-7] Wired Extension—Simplified Voice Message (KX-TDA50 only) 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 6—SVM Lock (KX-TDA50 only) 2.10.16 [4-2-5] Portable Station—Simplified Voice Message (KX-TDA50 only)

  • Page 290: T1 Line Service

    1.17 T 1.17 T 1.17.1 T1 Line Service Description A T1 line carries twenty-four 64 kbps-voice channels at 1.5 Mbps, and can be used as a public or private line. Voice is digitized by Pulse Code Modulation (PCM). This feature is only available for the KX-TDA100, KX-TDA200, and KX-TDA600.

  • Page 291: Tafas (trunk Answer From Any Station)

    1.17 T Feature Description (4) OPX Off Premise Extension A single line telephone (SLT) which is installed off site can (OPX) perform as if it were installed locally. The SLT makes and receives calls through the PBX. An extension number can be given to the OPX, and extension data such as Class of Service (COS) is also applied.

  • Page 292: Tenant Service

    2.8.8 [2-6-1] Numbering Plan—Main—Features—TAFAS Answer 2.8.19 [2-11-1] Audio Gain—Paging/MOH → Paging—EPG 1 (External Pager 1) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Paging—EPG 2 (External Pager 2) (KX-TDA100/KX-TDA200/KX-TDA600 only) → Paging—EPG (External Pager) (KX-TDA50 only) 2.11.2 [5-2] External Pager PT Programming Manual [700] External Pager Floating Extension Number Operating Manual References 1.3.63 TAFAS (Trunk Answer From Any Station)

  • Page 293

    1.17 T 1.2. Time Service Time modes are used by many PBX features to determine how they will function during different times of day (→ 1.17.5 Time Service). The start and end times of each time mode (day/lunch/ break/night) for each day of the week are programmed in a Time Table. Each Time Table has a number which corresponds to the tenant number of the tenant it serves.

  • Page 294

    1.17 T Call Blocking Through Class of Service (COS) programming, it is possible to: Prevent extensions of one tenant from calling extensions of another tenant. (Tenant-to-Tenant Call Block) Limit the trunk groups which can be used by the extensions of each tenant. (External Call Block) 3.1.

  • Page 295

    1.17 T Tenant 1 Tenant 3 Extension User Extension User Group 1 Group 5 Extn. 100 Extn. 101 Extn. 108 Extn. 109 Tenant 2 Extension User Extension User Group 2 Group 6 Extension User Group 3 Extn. 102 Extn. 103 Extn.

  • Page 296

    1.17 T Trunk Trunk Trunk Trunk Trunk Trunk Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Tenant 1 Tenant 2 Tenant 3 Extension User Extension User Extension User Group 1 Group 3 Group 5 Extn. 100 Extn. 101 Extn.

  • Page 297: Timed Reminder

    An MSG card is required and a message must be recorded. An extension assigned as a manager can record messages. (→ 1.12.2 OGM (Outgoing Message)) A different message can be assigned for each time mode (→ 1.17.5 Time Service). Installation Manual References KX-TDA50 2.5.3 MSG2 Card (KX-TDA5191) KX-TDA100/KX-TDA200 2.6.5 MSG4 Card (KX-TDA0191) KX-TDA600 2.8.4 MSG4 Card (KX-TDA0191)

  • Page 298: Time Service

    1.17 T Programming References PC Programming Manual 2.8.4 [2-3] Timers & Counters—DISA / Door / Reminder / U. Conf → Timed Reminder—Repeat Counter → Timed Reminder—Interval Time → Timed Reminder—Alarm Ringing Duration 2.8.8 [2-6-1] Numbering Plan—Main—Features → Remote Timed Reminder (Remote Wakeup Call) →...

  • Page 299

    1.17 T Time Mode Description Condition Switching Automatic The current time mode will switch The current time mode (day/lunch/break/ automatically to another time mode at night) and the switching mode the time programmed in the tenant's (automatic/manual) can be switched Time Table, and can be switched manually by an extension assigned as a manually by pressing the Time Service...

  • Page 300

    1.17 T Note that in this example, the day mode (Day 2) resumes automatically when the break mode (Break 1) ends. [Visualization of Time Schedule for Other Tenants] Monday Tuesday 00:00 03:00 06:00 09:00 12:00 15:00 18:00 21:00 00:00 Time Table No. 2 Time Table No.

  • Page 301

    1.17 T [Programming Example: DID Table] The DID Table can be programmed to direct calls to a different destination for each time mode based on the number dialed by the caller. Calls can, for example, be directed to an ICD group during the day mode, or to the Voice Mail (VM) service of a VPS during the lunch and night modes.

  • Page 302

    1.17 T Day/Night/Lunch button Day/Night/Break button Day/Night/Lunch/Break button These buttons can be used to switch the current time mode: pressing the Day/Night button will toggle between the day and night modes, for example. Each Time Service button will display the current time mode using a different light pattern or color, as shown below.

  • Page 303: Trs (toll Restriction)

    1.17 T → Type → Parameter Selection (for Time Service) → Parameter Selection (for Time Service - Automatic/Manual) → Optional Parameter (Ringing Tone Type Number) (for Time Service) 2.10.13 [4-2-3] Portable Station—Flexible Button → Type → Parameter Selection (for Time Service) →...

  • Page 304

    1.17 T A TRS check is applied each time a dialed number is sent to a CO line after an extension user goes off-hook and seizes a line. [Flowchart] An extension user tries to make a CO line call. Was the number dialed using System Speed Dialing? Is TRS Override by System Speed Dialing enabled?

  • Page 305

    1.17 T Exception Code Tables Exception Code Tables are preprogrammed lists of leading digits or complete telephone numbers which are checked against every dialed number prohibited by a Denied Code Table. When a user dials a number prohibited by a Denied Code Table, it is compared to at least one Exception Code Table. If the dialed number matches an entry found in the applicable Exception Code Table, the call is permitted.

  • Page 306

    1.17 T Restricted Allowed • International Calls • Countries where Clients are Located Level 2 • Cellular Phone Calls (Boss) • Long Distance Calls • Local Calls • International Calls • Boss's Cellular Phone Level 3 • Cellular Phone Calls •...

  • Page 307

    1.17 T → 2.13.5 [7-5] Miscellaneous—TRS Override by System Speed Dialing → [509] TRS Level for System Speed Dialing TRS Settings for Each Level Through system programming, it is possible to select a different method of TRS. With this method, each level has its own separate set of denied codes and exception codes, which are only applied to that level.

  • Page 308

    1.17 T distance calls, but can make long distance calls to cities where clients are located, cellular phone calls and local calls. To set TRS as in the example above, it is necessary to program the Denied Code and Exception Code Tables as follows: Denied Code Tables Exception Code Tables...

  • Page 309

    1.17 T Access Code is stored in the PBX Access Code is not Access Code Type Access Code is not stored in the PBX Access Code is dialed dialed Host PBX Access TRS ignores the code Number dialed is not a TRS checks the entire Code and checks the...

  • Page 310

    1.17 T → Parameter Selection (for TRS Level Change) 2.10.10 [4-2-1] Portable Station—Extension Settings—Main—COS 2.10.13 [4-2-3] Portable Station—Flexible Button → Type → Parameter Selection (for TRS Level Change) 2.10.17 [4-3] DSS Console—Flexible Button → Type → Parameter Selection (for TRS Level Change) 2.13.1 [7-1] Denied Code 2.13.2 [7-2] Exception Code 2.13.3 [7-3] Special Carrier Code...

  • Page 311: Upgrading The Software

    Operating system data area on either the EMPR card of the data KX-TDA600, the MPR card of the KX-TDA100/KX-TDA200, or the Main Board of the KX-TDA50. Default system programming data for each Country/area data area on the EMPR card, MPR card, or...

  • Page 312: Verification Code Entry

    1.19 V 1.19 V 1.19.1 Verification Code Entry Description An extension user can enter a verification code when calling from his own or any other extension, to change the Toll Restriction (TRS) level (→ 1.17.6 TRS (Toll Restriction)) or to identify the call for accounting and billing purposes.

  • Page 313: Virtual Ps

    1.19 V : → 2.12.3 [6-3] Verification Code—User Name → [121] Verification Code Name : → 2.12.3 [6-3] Verification Code—Verification Code PIN → [122] Verification Code Personal Identification Number (PIN) : → 2.12.3 [6-3] Verification Code—COS Number → [123] Verification Code COS Number →...

  • Page 314

    1.19 V [Example] Telephone Company Outside Caller TIE Line Network PBX-1 PBX-2 TIE Line Dials "201" Virtual PS 1 Virtual PS 2 Extn. 201 Extn. 202 Fwd to outside Fwd to destination destination at other PBX The following features can be accessed using this method: Feature Description &...

  • Page 315: Voice Mail (vm) Group

    VM Group Type Type Description A group of SLT ports which use the Voice Mail DTMF Integration features. VM (DTMF) Group A maximum of 2 (for KX-TDA50/KX-TDA100/KX-TDA200) or 8 (for KX-TDA600) groups can be assigned. Feature Manual...

  • Page 316

    Type Description A group of DPT ports which use the Voice Mail DPT (Digital) Integration features. With the KX-TDA50: • One VM (DPT) group can be assigned. • A maximum of 4 ports (eight channels) of the VPS can form a group.

  • Page 317

    1.19 V [Programming Example of Extension Port] DPT Property Slot Port Port Type Extn. No. Unit No. Port No. Type* VPS* VPS* VM (DPT) VM (DPT) Group 1 VM (DPT) S-Hybrid VM (DPT) VM (DPT) Group 2 S-Hybrid VM (DPT) Not assignable Not assignable Not assignable...

  • Page 318

    165) directly, assign "165#6123" to a One-touch Dialing button. When pressing this button, the outgoing message (OGM) of the mailbox will be heard. [KX-TDA50] • All ports in a VM (DPT) group must be connected to either the same DLC card, or to the pre-installed Super Hybrid ports.

  • Page 319: Voice Mail Dpt (digital) Integration

    1.19.4 Voice Mail DPT (Digital) Integration Description A Panasonic VPS that supports DPT (Digital) Integration (e.g., the KX-TVP200) can be connected to this PBX in a tightly integrated fashion. DPT (Digital) Integration features can be used when the VPS is connected through DPT ports of the PBX.

  • Page 320

    1.19 V his mailbox without dialing his mailbox number (Direct Mailbox Access). It is possible to disable this feature by COS programming on the VPS. VPS CO Line Service & Automatic Time Mode Notification for Incoming Call* Multiple tenants can share a single VPS; each tenant does not require a dedicated VPS port. If the destination of the incoming CO line call is a VM (DPT) group, the PBX sends the VPS trunk group number and time mode (day/lunch/break/night) of the tenant (→...

  • Page 321

    1.19 V Example of Trunk Group Assignment], a caller will hear a corresponding company greeting of the VPS. Time mode (day/lunch/break/night) of the preprogrammed tenant is applied to the DIL destination and company greeting number. [Example] For DID Calls: Each location number can have its VPS trunk group number (message number) and tenant number. [DID Programming Example] DID Destination VPS Trunk...

  • Page 322

    1.19 V CO Line Call CO Line Call 123-4567 123-2468 Sends the following information: · VPS Trunk Group: 1 · Time mode: Day Intercept Sends the following information: · VPS Trunk Group: 2 · Time mode: Lunch Tenant 1 Tenant 2 (Company A) (Company B) (Floating Extn.

  • Page 323

    1.19 V The Two-way Record button is used to record into one's own mailbox. The Two-way Transfer button is used to record into someone else's mailbox. Note Before recording a Two-way telephone conversation, you should inform the other party that the conversation will be recorded.

  • Page 324

    1.19 V • When all of the VPS ports are busy: Pressing the Two-way Record button sends a warning tone Pressing the Two-way Transfer button followed by an extension number sends a warning tone. [Transferring to a Mailbox of the VPS] •...

  • Page 325: Voice Mail Dtmf Integration

    When a caller reaches the VPS, the VPS greets and guides the caller to leave a voice message for a specified mailbox. [Example] The VPS sends the message to the caller, "Thank you for calling Panasonic. Please enter the mailbox number of the person you wish to leave your message for." ↓...

  • Page 326

    1.19 V Intercept Routing to a Mailbox Call Transfer to a Mailbox Listening to a Message in a Mailbox Automated Attendant (AA) Service Mode The VPS greets and guides the caller to the desired extension directly without operator assistance. VM → AA Service, AA → VM Service It is possible to switch the service mode assigned on the VPS port, from the VM service to AA service or vice versa.

  • Page 327

    1.19 V Transmitted Command Parameter In AA Service Mode In VM Service Mode Answer by Mailbox Switching to VM command + Recording message command (H (Default) Recording message command (#6 [H = Mailbox No.]) + H [H = Mailbox No.]) Switching to AA command (#8) Switching to AA command (#8) None...

  • Page 328

    1.19 V Transferring to a Mailbox of the VPS An extension user can transfer a call to a mailbox of the VPS so that the caller can leave a message in the mailbox of the desired extension. (→ 1.3.8 Call Transfer) The extension user should use the Voice Mail (VM) Transfer button, when transferring a call to the mailbox of the VPS.

  • Page 329

    1.19 V → 2.9.18 [3-8-1] VM(DTMF) Group—System Settings—Others—Message Waiting Lamp Control When the PBX is selected, the Message Waiting feature is canceled after the extension user has accessed the VPS. When the VPS is selected, the Message Waiting feature is canceled after the extension user has listened to messages stored in his mailbox.

  • Page 330

    → VM DTMF Status Signal—FWD to VM Busy Tone → VM DTMF Status Signal—FWD to Extension Ringback Tone [Example] An incoming call reaches the VPS. The VPS greets the caller: "Thank you for calling Panasonic. If you know the extension number of the person you wish… ". Transfer The caller dials the extension number (extn.

  • Page 331

    1.19 V • It is possible to select whether the mailbox number is the same as the extension number, or the mailbox number is programmable for each extension number and incoming call distribution group (Mailbox Access ID). → 2.9.9 [3-5-1] Incoming Call Distribution Group—Group Settings—Miscellaneous—Programmed Mailbox No.

  • Page 332: Walking Cos

    1.20 W 1.20 W 1.20.1 Walking COS Description A user can enter his extension number and extension personal identification number (PIN) (→ 1.5.6 Extension PIN (Personal Identification Number)) at another extension, to make the following types of call using his Class of Service, including TRS level, overriding the other extension's Class of Service. •...

  • Page 333: Walking Extension

    1.20 W 2.10.10 [4-2-1] Portable Station—Extension Settings—Option 2—Extension PIN PT Programming Manual [005] Extension Personal Identification Number (PIN) Feature Manual References 1.3.19 COS (Class of Service) 1.4.7 DISA (Direct Inward System Access) Operating Manual References 1.3.72 Walking COS 1.20.2 Walking Extension Description It is possible for an extension user to trade extension settings with another extension.

  • Page 334: Whisper Ohca

    1.20 W Operating Manual References 1.3.73 Walking Extension 1.20.3 Whisper OHCA Description An extension user can speak to a busy extension through the handset. Conditions • Class of Service (COS) programming determines which extensions can use this feature. • This feature is available when the calling and called extension use one of the following telephones: –...

  • Page 335: Wireless Xdp Parallel Mode

    1.20 W 1.20.4 Wireless XDP Parallel Mode Description A portable station (PS) can be used in parallel with a wired telephone, i.e., a digital proprietary telephone (DPT), analog proprietary telephone (APT), or single line telephone (SLT), allowing an extension user to make or receive calls with either the wired telephone or the PS.

  • Page 336

    1.20 W • When a PS in Wireless XDP Parallel mode is on a call, other extension users cannot perform the following features when they call this extension: – Executive Busy Override (→ 1.5.3 Executive Busy Override) – Whisper OHCA (→ 1.20.3 Whisper OHCA) •...

  • Page 337

    1.20 W – Transfer Recall (→ 1.3.8 Call Transfer) – Hold Recall (→ 1.3.2 Call Hold) – Call Park Recall (→ 1.3.5 Call Park) Programming References PC Programming Manual 2.7.5 [1-1] Slot—Extension Port—DPT Type—Type (for DPT or S-Hybrid port) 2.7.31 [1-2] Portable Station—PS Registration and De-registration 2.8.8 [2-6-1] Numbering Plan—Main—Features—Wireless XDP Parallel Mode Set / Cancel 2.8.11 [2-7-1] Class of Service—COS Settings—Extension Feature—Accept Wireless XDP Parallel Mode Set by PS...

  • Page 338

    1.20 W Feature Manual...

  • Page 339: Appendix

    Section 2 Appendix Feature Manual...

  • Page 340: Capacity Of System Resources

    2.1 Capacity of System Resources Capacity of System Resources System Item KX-TDA50 KX-TDA100/ KX-TDA600 KX-TDA200 Absent Message—Extension 1 x 16 characters Absent Message—System 8 x 16 characters Call Park Zone Conference Each shelf: 3-8 parties 3-8 parties per conference (32 parties total)

  • Page 341

    2.1 Capacity of System Resources Item KX-TDA50 KX-TDA100/ KX-TDA600 KX-TDA200 Hot Line 32 digits Personal Speed Dialing Without EMEC or MEC: 32 digits, 10 entries/extn. With EMEC or MEC: 32 digits, 100 entries/extn. Quick Dialing 4 digits, 80 entries (an...

  • Page 342: Voice Message

    2.1 Capacity of System Resources Item KX-TDA50/KX-TDA100/KX-TDA200 KX-TDA600 Leading Number Table 16 digits, 1000 entries Leading Number Exception Table 16 digits, 200 entries ARS Carrier Itemized Billing Code 10 digits Authorization Code 10 digits Call Log and Message Waiting KX-TDA100/...

  • Page 343

    2.1 Capacity of System Resources Networking Item KX-TDA50/KX-TDA100/KX-TDA200/KX-TDA600 TIE Line Routing and Modification Table 32 entries Leading Number 3 digits PBX Code 7 digits NDSS: Monitored PBXs NDSS: Registered Extensions for Monitor PBX Item KX-TDA50 KX-TDA100 KX-TDA200 KX-TDA600 PC Console...

  • Page 344: Exclusive Features Table

    2.2 Exclusive Features Table Exclusive Features Table The KX-TDA50, KX-TDA100/KX-TDA200, and KX-TDA600 support certain features only available for that PBX model. The table below lists the features that are available depending on the PBX model. KX-TDA100/ KX-TDA50 KX-TDA600 KX-TDA200 1.1.6 Automatic Fax Transfer 1.3.13 CLIP (Calling Line...

  • Page 345: Tones/ring Tones

    2.3 Tones/Ring Tones Tones/Ring Tones Tone Patterns (Default) Confirmation Tone 1 Confirmation Tone 2 Confirmation Tone 3 Confirmation Tone 4 Confirmation Tone 5 Dial Tone 1 Dial Tone 2 Dial Tone 3 Dial Tone 4 Busy Tone Reorder Tone Ringback Tone 1 Ringback Tone 2 DND Tone CO Line Call Limit...

  • Page 346

    2.3 Tones/Ring Tones Tone Patterns (Default) 15 s Hold Alarm Tone Call Waiting Tone 1 Call Waiting Tone 2 Ring Tone Patterns (Default)* Single Double Triple S-Double Feature Manual...

  • Page 347: Revision History

    2.4 Revision History Revision History 2.4.1 KX-TDA100/KX-TDA200 PMPR Software File Version 1.1xxx New Contents • 1.5.2 Emergency Call CLIP Number Notification • 1.13.2 Paralleled Telephone Digital XDP • 1.15.1 Redial, Last Number Outgoing Call Log Display by REDIAL Button • 1.16.4 Speed Dialing, System System Speed Dialing Display by AUTO DIAL/STORE Button •...

  • Page 348: Kx-tda100/kx-tda200 Pmpr Software File Version 2.0xxx

    2.4 Revision History 2.4.2 KX-TDA100/KX-TDA200 PMPR Software File Version 2.0xxx New Contents • 1.5.9 External Sensor • 1.5.8 External Relay • 1.8.4 HOSPITALITY FEATURES • 1.9.15 IP-PT (IP Proprietary Telephone) • 1.11.1 Manager Features • 1.13.3 Password Security • 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) Changed Contents •...

  • Page 349: Kx-tda100/kx-tda200 Pmpr Software File Version 3.0xxx

    2.4 Revision History 2.4.3 KX-TDA100/KX-TDA200 PMPR Software File Version 3.0xxx New Contents • 1.3.11 CELLULAR PHONE FEATURES • 1.4.7 DISA (Direct Inward System Access) DISA Automatic Walking COS DISA Call Transfer from Outside Destination • 1.9.2 ICD Group Features—Group Call Distribution Automatic Call Distribution (ACD) •...

  • Page 350

    2.4 Revision History • 1.9.3 ICD Group Features—Log-in/Log-out Wrap-up Timer • 1.10.3 Line Preference—Outgoing • 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) • 1.13.18 PRIVATE NETWORK FEATURES—QSIG • 1.13.28 PT Programming • 1.14.1 Quick Dialing • 2.1 Capacity of System Resources KX-TDA0920 SD Memory Card for Software Upgrade to Enhanced Version-only Features •...

  • Page 351: Kx-tda100/kx-tda200 Pmpr Software File Version 3.2xxx

    2.4 Revision History 2.4.4 KX-TDA100/KX-TDA200 PMPR Software File Version 3.2xxx New Contents • 1.3.9 CALL WAITING FEATURES Automatic Call Waiting • 1.13.7 PDN (Primary Directory Number)/SDN (Secondary Directory Number) Extension Changed Contents • 1.3.1 Caller ID • 1.3.3 Call Log, Incoming •...

  • Page 352: Kx-tda50 Psmpr Software File Version 1.1xxx

    2.4 Revision History • 2.1 Capacity of System Resources 2.4.5 KX-TDA50 PSMPR Software File Version 1.1xxx Changed Contents • 1.3.6 Call Pickup [Directed Call Pickup] • 1.3.9 CALL WAITING FEATURES Call Waiting Caller ID (Visual Caller ID) • 1.13.1 Paging Paging Group •...

  • Page 353: Kx-tda50 Psmpr Software File Version 3.0xxx

    Version-only Features • 1.3.21 CTI (Computer Telephony Integration) • 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) 2.4.7 KX-TDA50 PSMPR Software File Version 3.0xxx New Contents • 1.3.11 CELLULAR PHONE FEATURES • 1.4.7 DISA (Direct Inward System Access) DISA Automatic Walking COS DISA Call Transfer from Outside Destination •...

  • Page 354

    2.4 Revision History • 1.19.2 Virtual PS Changed Contents • 1.3.8 Call Transfer One-touch Transfer • 1.3.16 Conference • 1.4.7 DISA (Direct Inward System Access) End of Call Detection • 1.6.4 Flexible Numbering/Fixed Numbering • 1.6.7 FWD/DND Button, Group FWD Button •...

  • Page 355: Kx-tda50 Psmpr Software File Version 4.0xxx

    1.13.14 Private Network Features—Centralized Voice Mail • 1.13.15 Private Network Features—NDSS (Network Direct Station Selection) • 1.13.17 Private Network Features—PS Roaming by Network ICD Group 2.4.8 KX-TDA50 PSMPR Software File Version 4.0xxx New Contents • 1.3.9 CALL WAITING FEATURES Automatic Call Waiting •...

  • Page 356

    2.4 Revision History Feature Manual...

  • Page 357: Index

    Index Feature Manual...

  • Page 358

    Index Call Transfer with Announcement Call Transfer without Announcement AA —> Automated Attendant 76, 326 Call Transfer—QSIG (CT—QSIG) Absent Message Call Transfer—Screened —> Call Transfer with Announcement Account Code Entry Call Transfer—Unscreened —> Call Transfer without Announcement Alarm Information, Local Call Waiting Caller ID (Visual Caller ID) Alternate Calling—Ring/Voice CALL WAITING FEATURES...

  • Page 359

    Index CTI —> Computer Telephony Integration External Relay CT—QSIG —> Call Transfer—QSIG External Sensor EXtra Device Port (XDP) Data Line Security Delayed Ringing Fax Transfer, Automatic Denied Code Tables Feature Clear, Extension Dial Mode Selection Feature Highlights Dial Tone First Party Call Control Dial Tone Transfer Fixed Buttons Dialing Digit Restriction during Conversation...

  • Page 360

    Index ICD Group —> Incoming Call Distribution Group 122, 132 NDSS —> Network Direct Station Selection Idle Extension Hunting Network Direct Station Selection (NDSS) Idle Extension Hunting Group 122, 151 Network ICD Group Idle Line Access (Local Access) No Line Preference 171, 172 Idle Line Preference Numbering, Flexible/Fixed...

  • Page 361

    Index PS Directory SVM Log PS Feature Buttons System Speed Dialing PS Ring Group 124, 259 PS Roaming by Network ICD Group PT Programming T1 Line Service Pulse to Tone Conversion TAFAS —> Trunk Answer From Any Station Tenant Service Tenant-to-Tenant Call Block QSIG Terminate...

  • Page 362

    Index XDP —> EXtra Device Port XDP, Digital XDP, Wireless Feature Manual...

  • Page 363

    Index Feature Manual...

  • Page 364

    Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. © 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
