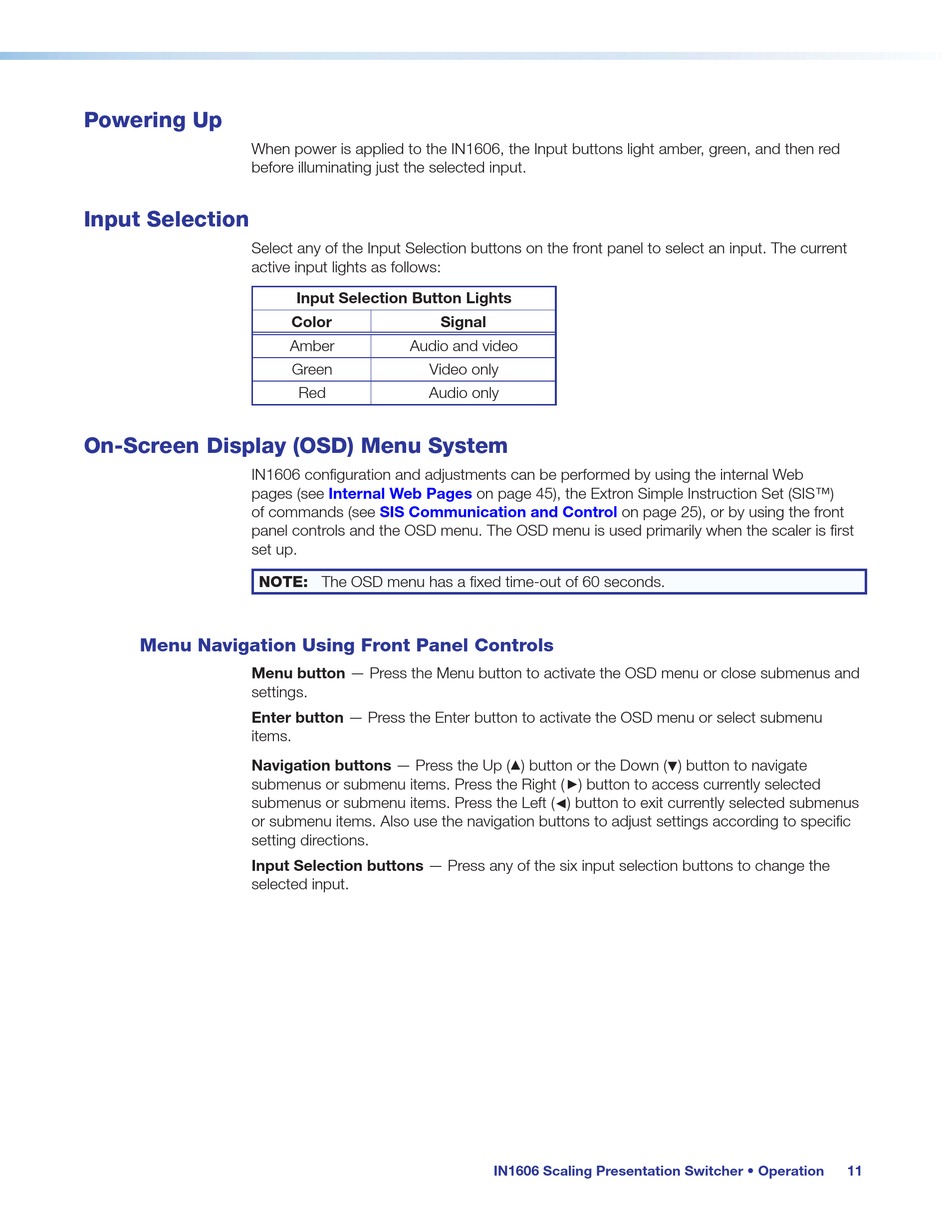

Powering Up

When power is applied to the IN1606, the Input buttons light amber, green, and then red
before illuminating just the selected input.

Input Selection

Select any of the Input Selection buttons on the front panel to select an input. The current
active input lights as follows:

On-Screen Display (OSD) Menu System

IN1606 configuration and adjustments can be performed by using the internal Web
pages (see
of commands (see
panel controls and the OSD menu. The OSD menu is used primarily when the scaler is first
set up.
NOTE: The OSD menu has a fixed time-out of 60 seconds.

Menu Navigation Using Front Panel Controls

Menu button — Press the Menu button to activate the OSD menu or close submenus and
settings.
Enter button — Press the Enter button to activate the OSD menu or select submenu
items.
Navigation buttons — Press the Up (
submenus or submenu items. Press the Right ( ) button to access currently selected
submenus or submenu items. Press the Left ( ) button to exit currently selected submenus
or submenu items. Also use the navigation buttons to adjust settings according to specific
setting directions.
Input Selection buttons — Press any of the six input selection buttons to change the
selected input.
Input Selection Button Lights
Color Signal
Amber Audio and video
Green Video only
Red Audio only
Internal Web Pages
SIS Communication and Control
on page 45), the Extron Simple Instruction Set (SIS™)
on page 25), or by using the front
>
) button or the Down (
IN1606 Scaling Presentation Switcher • Operation
) button to navigate
<
11
