Output Configuration section
The Output Configuration section consists of output resolution, format settings, switch
transitions, and available test patterns.

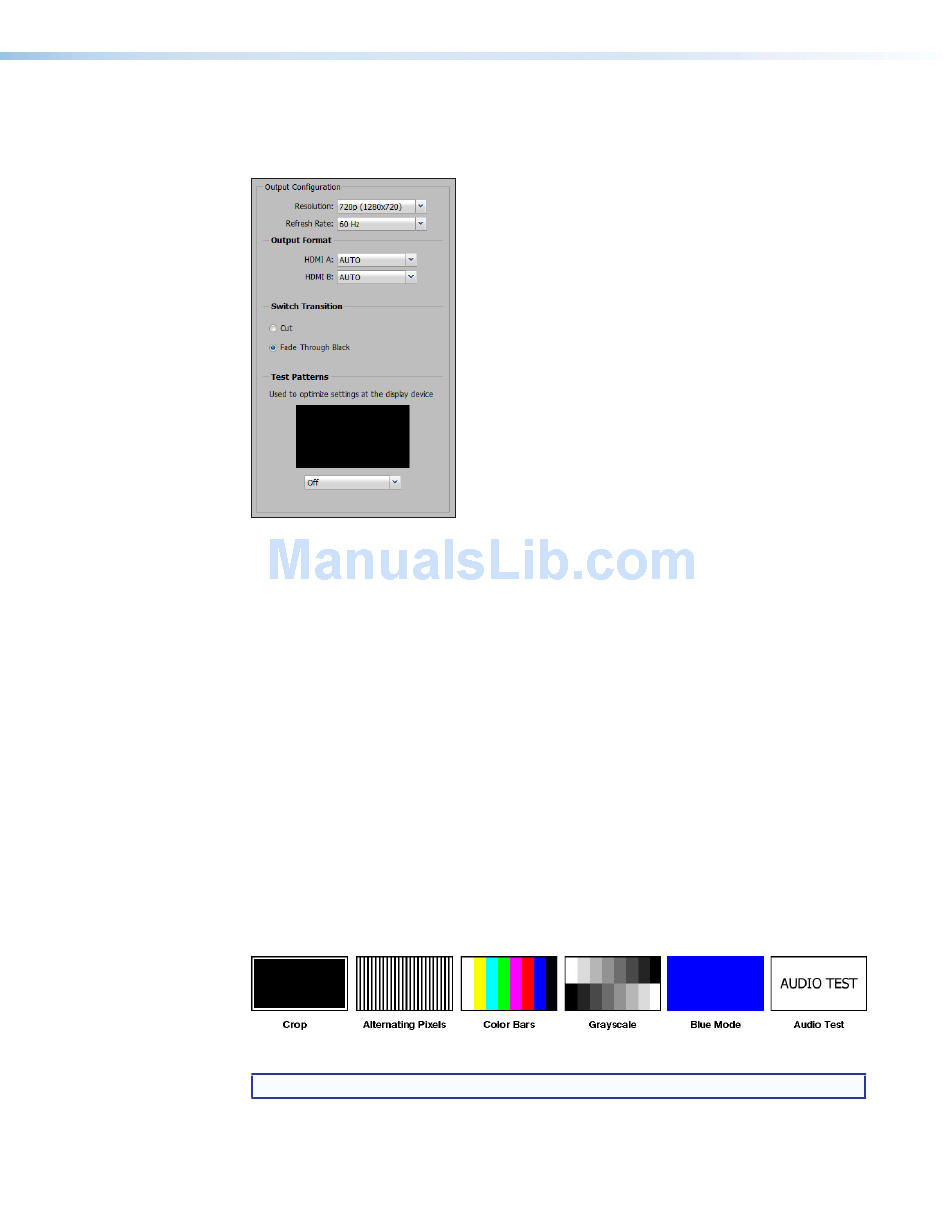

Figure 22. Output Configuration
Resolution
From the drop-down menu, select the applicable output resolution.
Resolution
Refresh rate
From the drop-down menu, select the applicable output refresh rate.
Refresh Rate
Output formats
From the or
HDMI A HDMI B
Switch transitions
Cut — Switches video directly to the newly selected input.
•
• Fade Through Black — Fades video to a black screen before switching to the newly
selected video.

Test patterns

To aid display device setup and optimization, select a test pattern from the drop-down
menu under the preview window.
Figure 23. Available Test Patterns
NOTE: No input signal is needed when using a test pattern for display device setup.
IN1606 Scaling Presentation Switcher • Internal Web Pages
drop-down menu, select the applicable digital signal format.
