Picture Controls Submenu

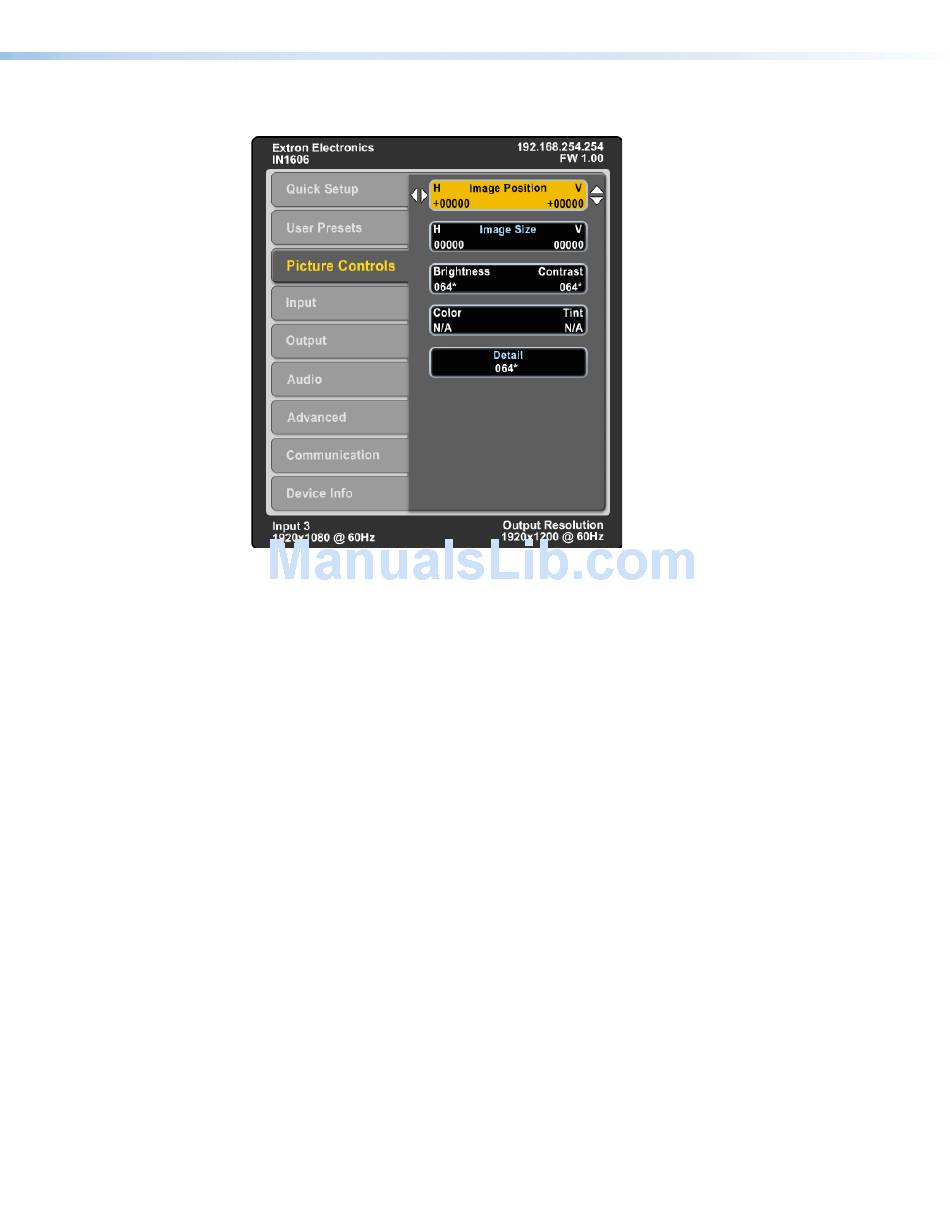

Figure 9. Picture Controls Submenu
The Picture Controls submenu allows adjustment of picture settings.
Image Position — Press the Navigation buttons to adjust the horizontal (H) and vertical (V)
position of the image.
Image Size — Press the Navigation buttons to adjust the horizontal (H) and vertical (V) size
of the image.
Brightness and Contrast — Press the Navigation buttons to independently adjust
brightness and contrast.
Color and Tint — Press the Navigation buttons to adjust the color and tint of the image.
These settings are only applicable to analog NTSC, PAL, and SECAM signals.
Detail — Press the Navigation buttons to adjust the detail of the image.
IN1606 Scaling Presentation Switcher • Operation 15
