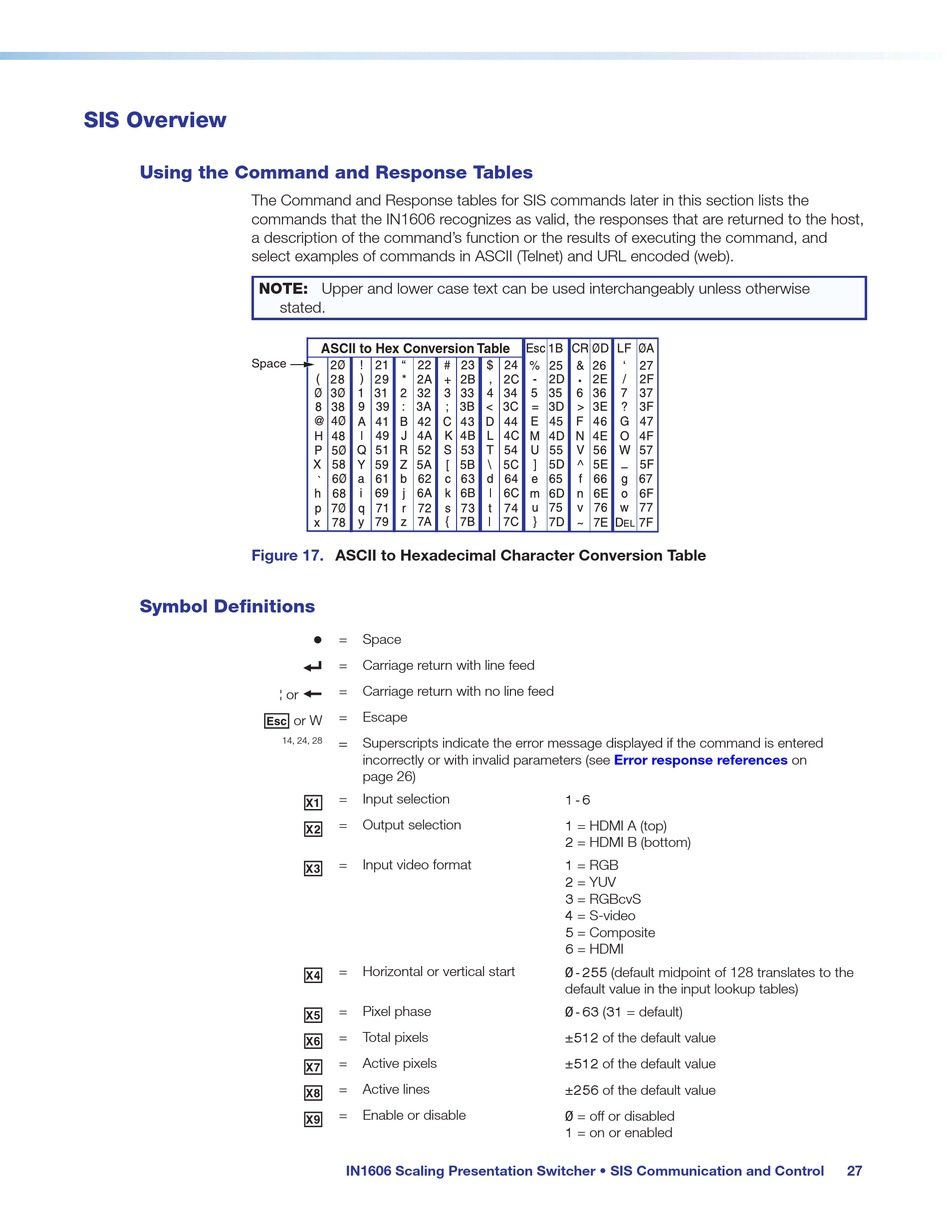

SIS Overview

Using the Command and Response Tables

The Command and Response tables for SIS commands later in this section lists the
commands that the IN1606 recognizes as valid, the responses that are returned to the host,
a description of the command's function or the results of executing the command, and
select examples of commands in ASCII (Telnet) and URL encoded (web).
NOTE: Upper and lower case text can be used interchangeably unless otherwise
Space
Figure 17.

Symbol Definitions

stated.
ASCII to Hex Conversion Table
ASCII to Hexadecimal Character Conversion Table
• = Space
] = Carriage return with line feed
} = Carriage return with no line feed
¦ or
E = Escape
or W
= Superscripts indicate the error message displayed if the command is entered
14, 24, 28
incorrectly or with invalid parameters (see
page 26)
X! = Input selection
X@ = Output selection
X# = Input video format
X$ = Horizontal or vertical start
X% = Pixel phase
X^ = Total pixels
X& = Active pixels
X* = Active lines
X( = Enable or disable
IN1606 Scaling Presentation Switcher • SIS Communication and Control
•
Error response references
1-6
1 = HDMI A (top)
2 = HDMI B (bottom)
1 = RGB
2 = YUV
3 = RGBcvS
4 = S-video
5 = Composite
6 = HDMI
0-255 (default midpoint of 128 translates to the
default value in the input lookup tables)
0-63 (31 = default)
±512 of the default value
±512 of the default value
±256 of the default value
0 = off or disabled
1 = on or enabled
on
27
