Preset Management Page

The Preset Management page gives access to assigned input and user presets. Click the
Preset Management
page.

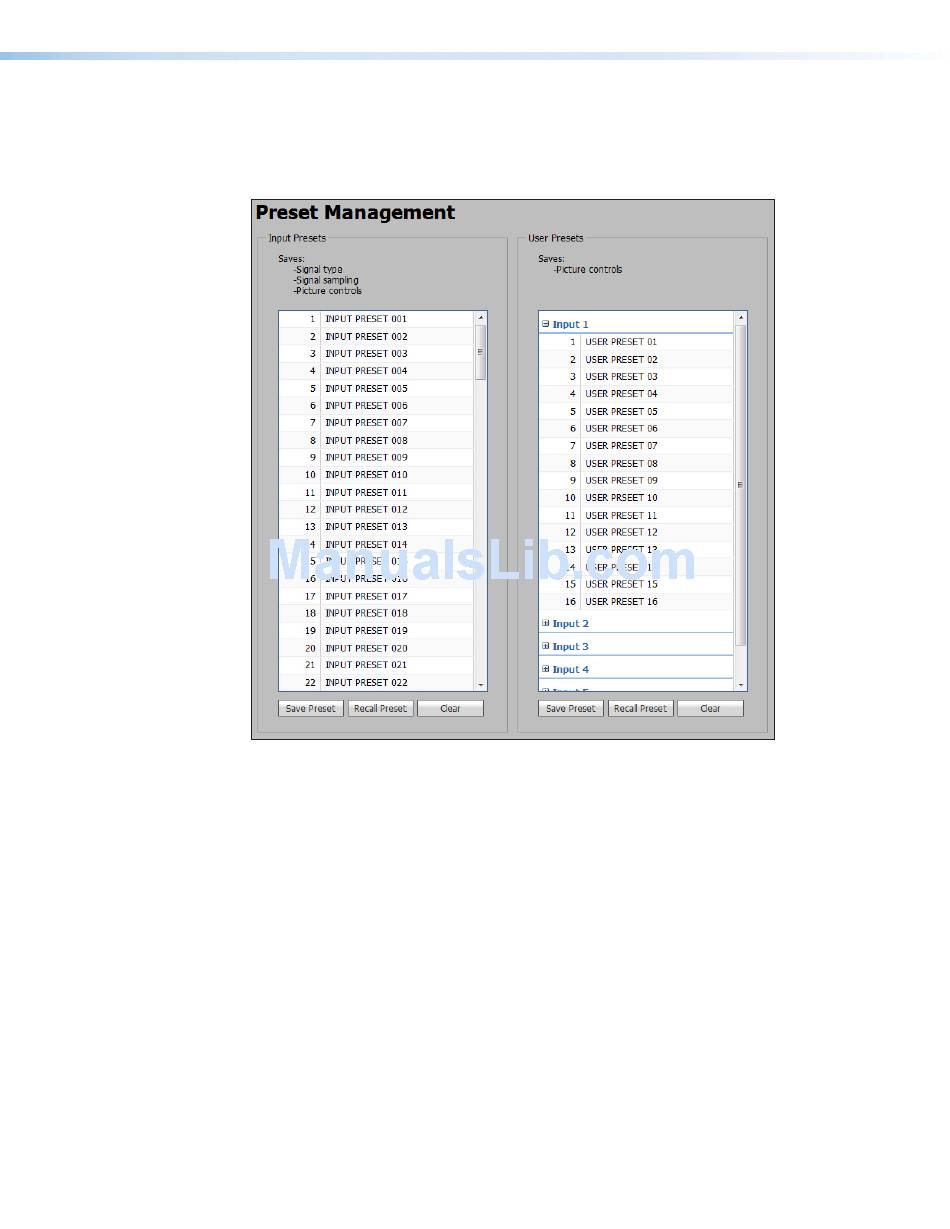

Figure 37.
To save a preset:
1. Select the input preset or user preset that is to store the current configuration.
2.
Click the
To recall a preset:
1. Select the input preset or user preset that is to be recalled.
2. Click the
To clear a preset:
1. Select the input preset or user preset that is to be cleared.
2. Click the
box opens.
To rename a preset:
1. Double-click a Preset Name.
2. Enter a new preset name and press the <Enter> key.
button on the Global Navigation Bar to open the Preset Management
Preset Management Page
button located in the same section of the screen.
Save Preset
button located in the same section of the screen.
Recall Preset
button located in the same section of the screen. A confirmation dialog
Clear
IN1606 Scaling Presentation Switcher • Internal Web Pages 64
