EXTRA 300S

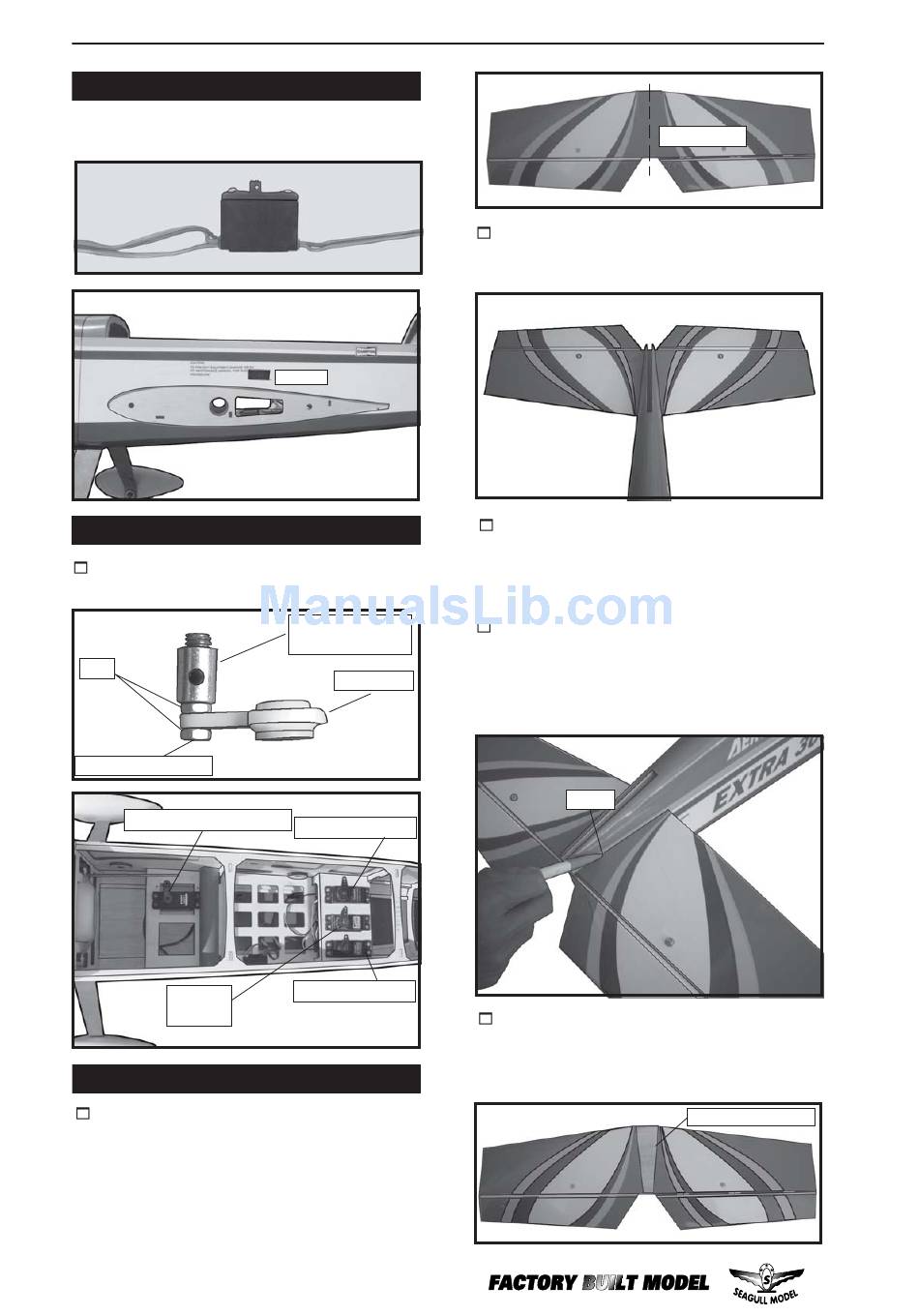

INSTALLING THE SWITCH.

Install the switch into the precut hole in the
side of fuselage.
THROTTLE SERVO ARM INSTALLATION.
) Install adjustable servo connector in
1
the servo arm as same as picture below:
Nut.
Thread locker glue.
Throttle servor arm .
Rudder
servo.

HORIZONTAL STABILIZER.

1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the trail-
ing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge of
the stabilizer.
10
.
Switch
Adjustable Servo
connector.
Servo arm.
Elevator servo.
Elevator servo.
Instruction Manual
2) Using a modeling knife, carefully remove
the covering at mounting slot of horizontal sta-
bilizer ( both side of fuselage).
3) Slide the stabilizer into place in the pre-
cut slot in the rear of the fuselage. The stabi-
lizer should be pushed firmly against the front
of the slot.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
Pen.
5) Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove the
covering from between them using a model-
ing knife.
Center line.
Remove covering.
