T-34 MENTOR

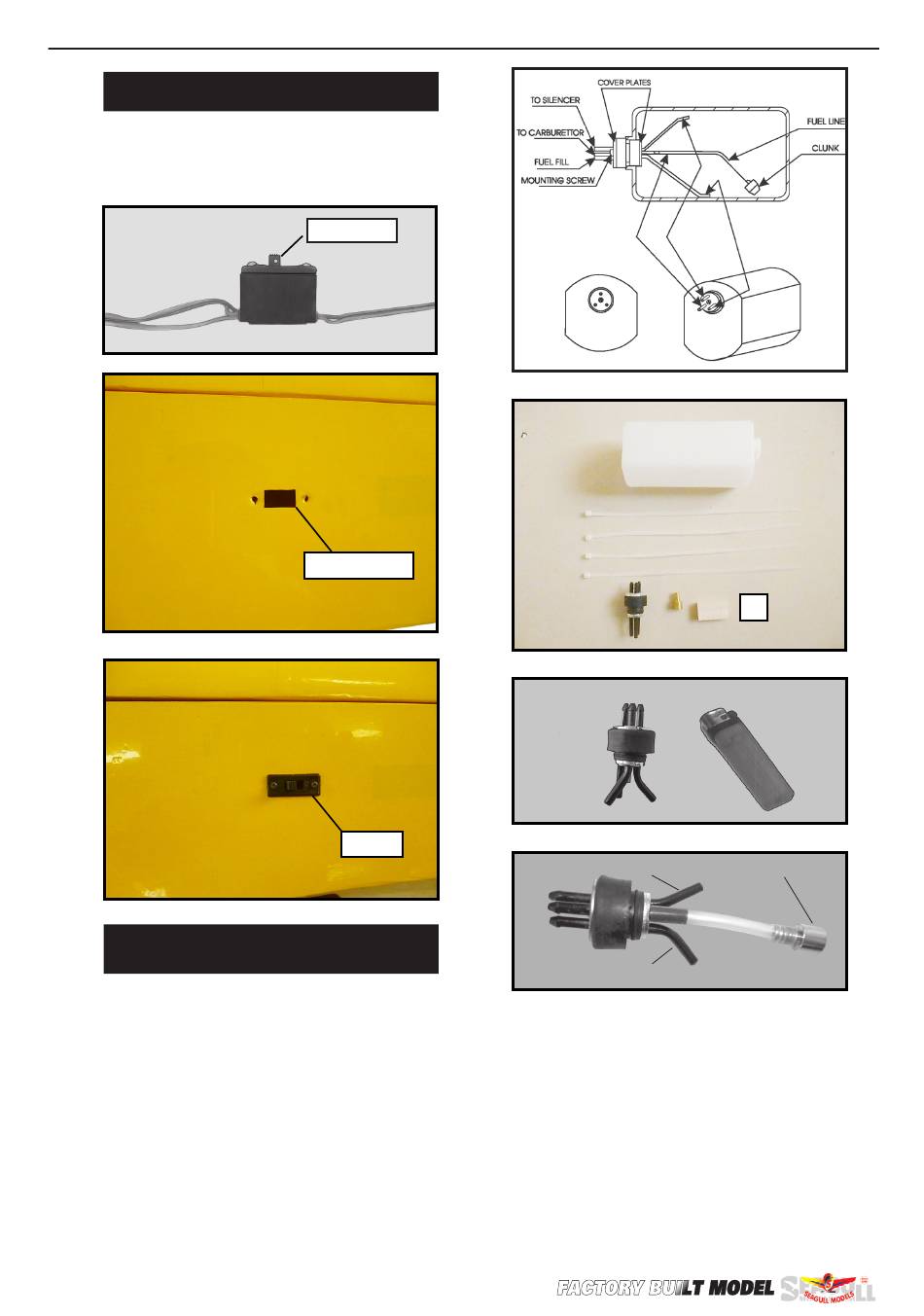

INSTALLING THE SWITCH .

Install the switch into the precut hole in
the side, in the fuselage.
INSTALLING THE STOPPER
1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon
tubes leaving 1/2" protruding from the
rear of the stopper. This will be the fuel
pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of
the line to the weighted fuel pick up and
the other end to the nylon pick up tube.
8
3/32" Hole.
Trim and cut.
.
Switch.
ASSEMBLY.
Instruction Manual.
Vent tube.
Fuel fill tube.
3) Carefully bend the second nylon tube up
at a 45º angle. This tube is the vent tube.
4) Test fit the stopper assembly into the tank.
It may be necessary to remove some of the
flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
A
Fuel pick up tube.
