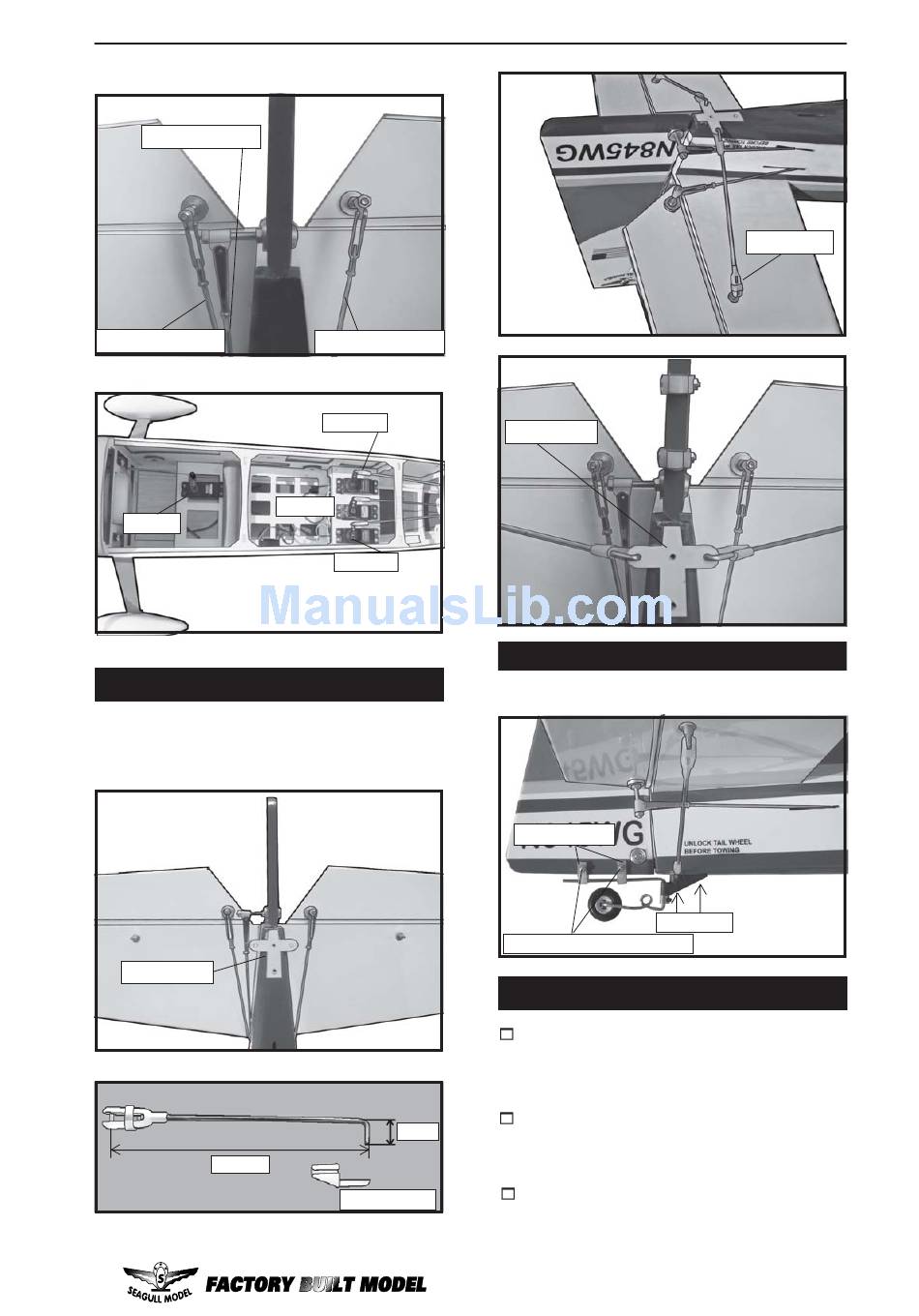

Seagull Models Extra 300S Assembly Manual page 15

Rudder pushrod.
Elevator pushrod.
Throttle.
INSTALLING TAIL STRUT SYSTEM.
The tail strut system assembly follow
pictures below.
Plastic trap.
124mm.
www.seagullmodels.com
Elevator pushrod.
Elevator.
Rudder.
Elevator.
7mm.
Snap keeper.
Plastic trap.
MOUNTING THE CONTROL CLASP.
See pictures below.
Control clasp.
2 Screws.
2x20mm Machine screws.
INSTALLING THE BATTERY-RECEIVER.
1) Plug the six servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bot-
tom of fuselage using a plastic tape.
plastic clip.
15
