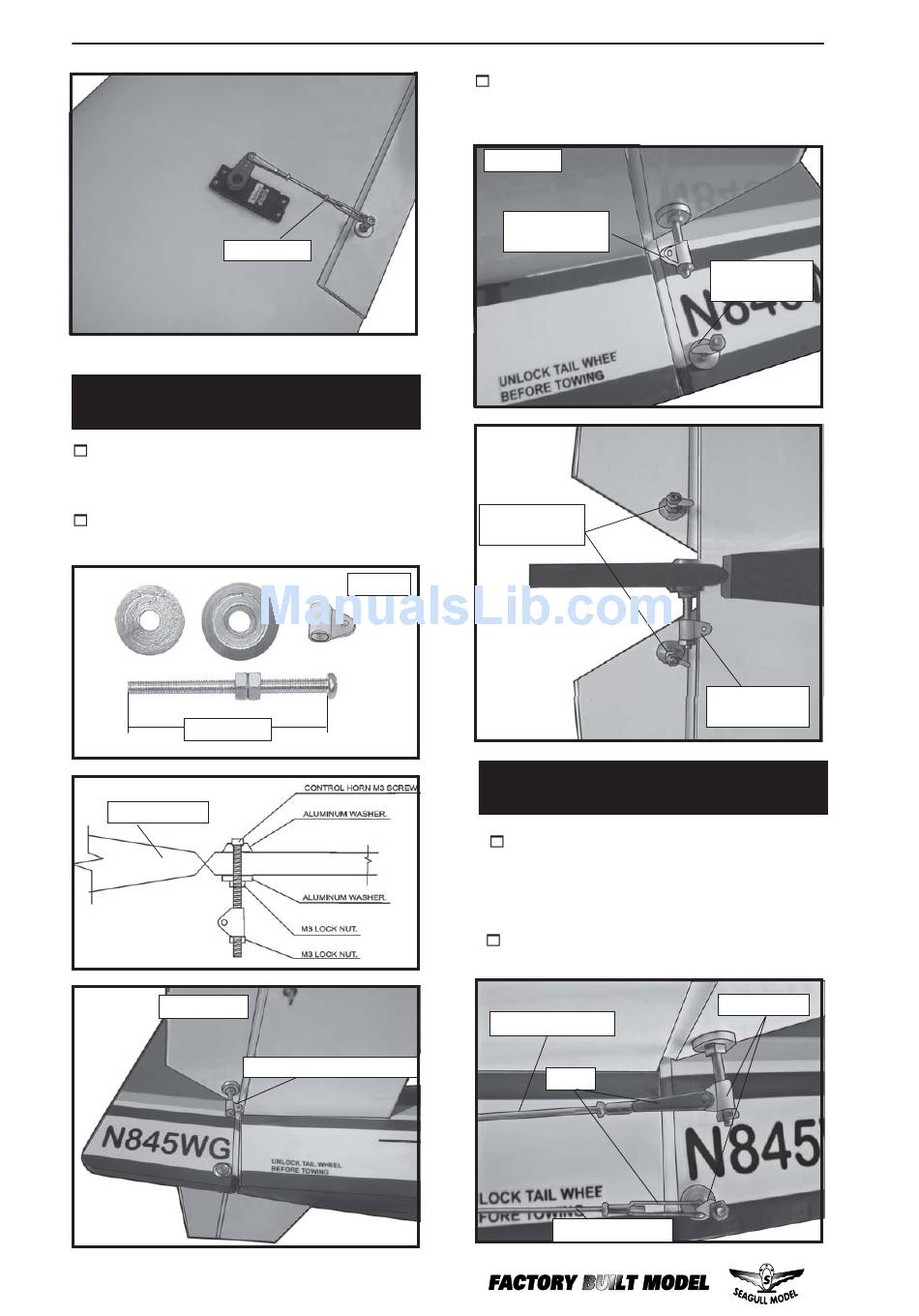

Seagull Models Extra 300S Assembly Manual page 14

EXTRA 300S
M2 lock nut.
Repeat the procedure for the other wing.
ELEVATOR - RUDDER CONTROL HORN
INSTALLATION.
1) Install the elevator control horn using
the same method as with the aileron control
horns.
2) Position the elevator control horn on
the both side of elevator.
3x35mm.
Horizontal fin.
Right side.
14
2 sets.
Elevator.
Elevator control horn.
Instruction Manual
3) Install the rudder control horn using the
same method as with the elevator control
horns.
Left side.
Elevator
control horn.
Elevator
control horn.
ELEVATOR - RUDDER PUSHROD
INSTALLATION.
1) Thread one clevis and M2 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
2) Elevator and rudder pushrods assembly
follow pictures below.
Elevator pushrod.
Clevis.
Rudder pushrod.
Rudder
control horn.
Rudder
control horn.
Control horn.
