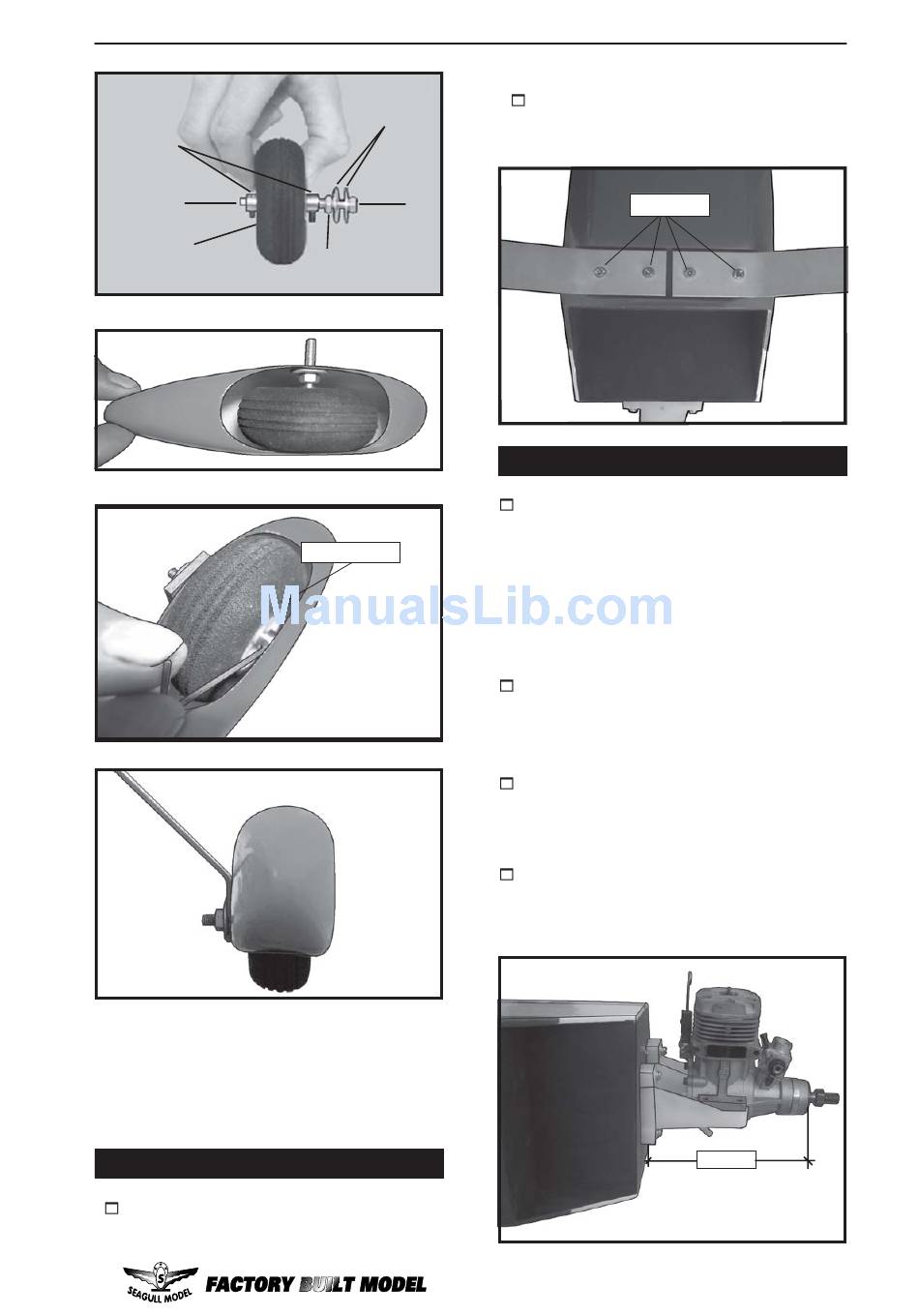

Mounting The Engine; Installing The Main Landing Gear - Seagull Models Extra 300S Assembly Manual

(2) Wheel Collar.
Axle.
Wheel.
4) A drop of C/A glue on the wheel collar
screws will help keep them from coming lose
during operation.
Repeat the process for the other wheel.

INSTALLING THE MAIN LANDING GEAR.

1) The blind nuts for securing the landing
gear are already mounted inside the fuselage.
www.seagullmodels.com
(2) Washer.
Nut.
Nut.
Landing gear.
2) Using the hardware provided, mount
the main landing gear to the fuselage.
4x20mm.

MOUNTING THE ENGINE.

1) Install the pushrod housing through the
predrilled hole in the firewall and into the servo
compartment. The pushrod housing should
protrude 1/4" out past the front of the firewall.
Make a Z-Bend 1/4" from one end of the plain
wire pushrod.
2) Place your engine onto the engine
mount. Adjust the engine is centered of the
edges of the engine case.
3) When you are satisfied with the align-
ment, mark the locations of the engine
mounting.
4) Remove the engine. Using an drill bit,
drill the mounting holes through the engine
mount at the four locations marked.
130mm
.
7
