Tadiran Telecom Emerald ICE Quick Installation Manual page 66

Section 4-Basic Programming
Remote Connection

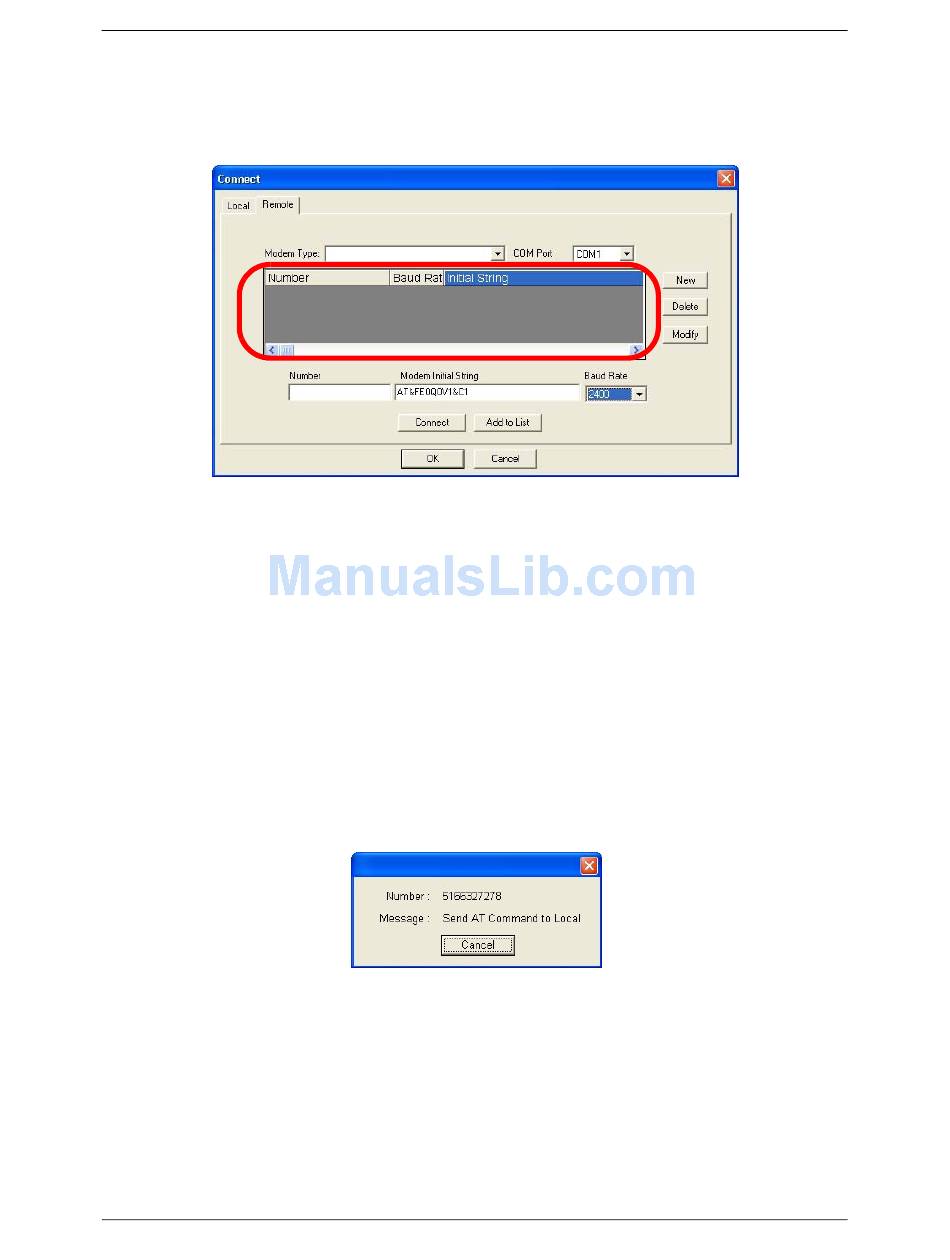

5. With the Remote tab selected, connection with the Emerald ICE using a modem con-
nection is possible. Click on the Remote tab to display the following:
6. In the Modem Type field, select the modem to use. The corresponding modem COM
Port will appear in the Com Port field. Further, the Modem Initial String will appear
in the Modem Initial String field.
7. Select a Baud Rate for communications using the Baud Rate drop-down list.
8. Enter a 10-digit Modem Telephone Number in the Number field.
9. Click on the Add to List button and the modem information will be displayed in the
Display Area of the window.
10. Repeat steps 6 through 8 to add additional modems.
11. To connect with the RMP, click on the Connect button. A connect-progress window
will be displayed as shown below. The connect process will time-out in 10 seconds if a
connection is not established. If a connection cannot be made after a second attempt,
repeat these procedures from step 5, verifying Modem Type, Modem Initial String
and Baud Rate.
Page 4-8
