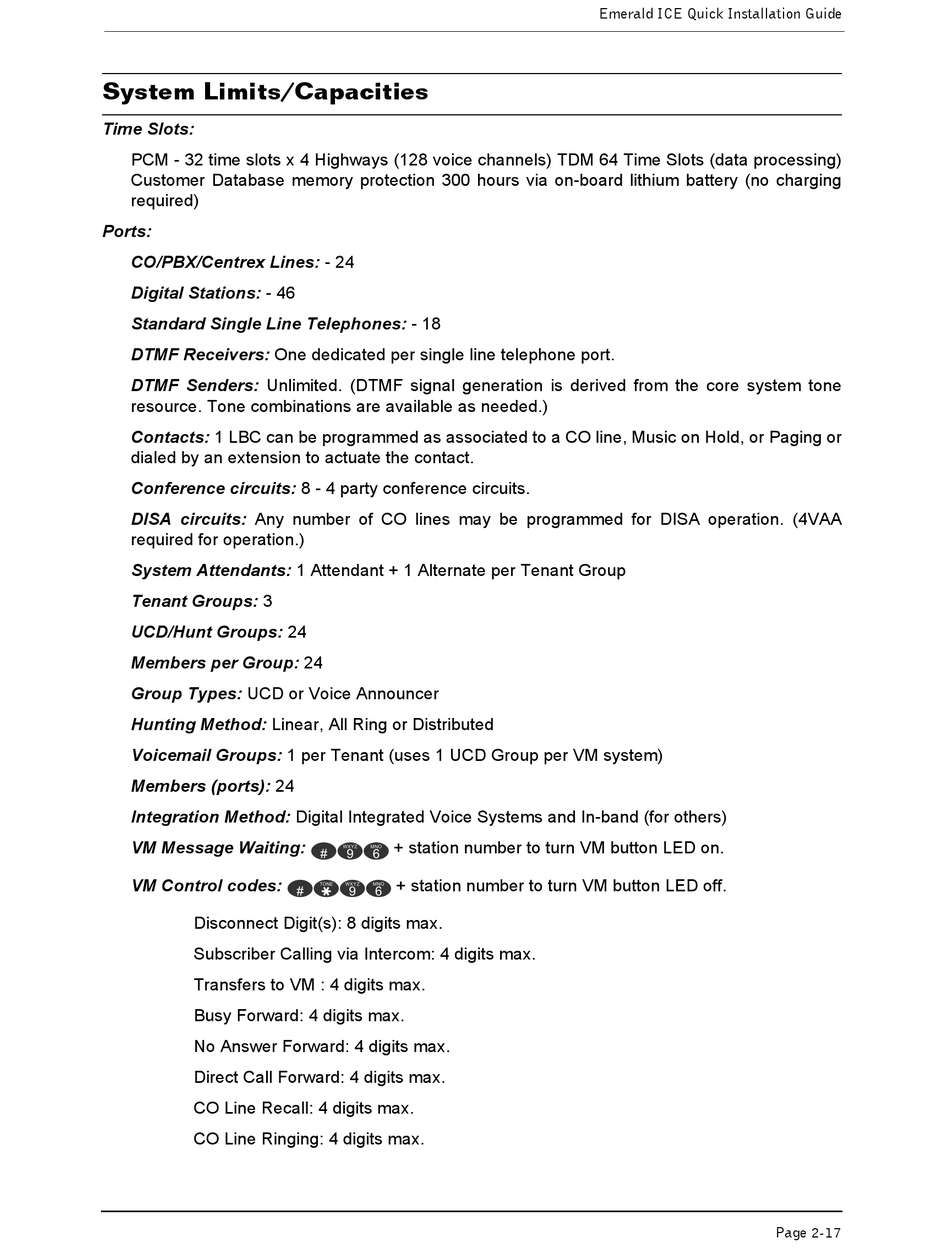

System Limits/Capacities

Time Slots:
PCM - 32 time slots x 4 Highways (128 voice channels) TDM 64 Time Slots (data processing)
Customer Database memory protection 300 hours via on-board lithium battery (no charging
required)
Ports:
CO/PBX/Centrex Lines: - 24
Digital Stations: - 46
Standard Single Line Telephones: - 18
DTMF Receivers: One dedicated per single line telephone port.
DTMF Senders: Unlimited. (DTMF signal generation is derived from the core system tone
resource. Tone combinations are available as needed.)
Contacts: 1 LBC can be programmed as associated to a CO line, Music on Hold, or Paging or
dialed by an extension to actuate the contact.
Conference circuits: 8 - 4 party conference circuits.
DISA circuits: Any number of CO lines may be programmed for DISA operation. (4VAA
required for operation.)
System Attendants: 1 Attendant + 1 Alternate per Tenant Group
Tenant Groups: 3
UCD/Hunt Groups: 24
Members per Group: 24
Group Types: UCD or Voice Announcer
Hunting Method: Linear, All Ring or Distributed
Voicemail Groups: 1 per Tenant (uses 1 UCD Group per VM system)
Members (ports): 24
Integration Method: Digital Integrated Voice Systems and In-band (for others)
VM Message Waiting:
VM Control codes:
Disconnect Digit(s): 8 digits max.
Subscriber Calling via Intercom: 4 digits max.
Transfers to VM : 4 digits max.
Busy Forward: 4 digits max.
No Answer Forward: 4 digits max.
Direct Call Forward: 4 digits max.
CO Line Recall: 4 digits max.
CO Line Ringing: 4 digits max.
+ station number to turn VM button LED on.
#96
+ station number to turn VM button LED off.
#*96
