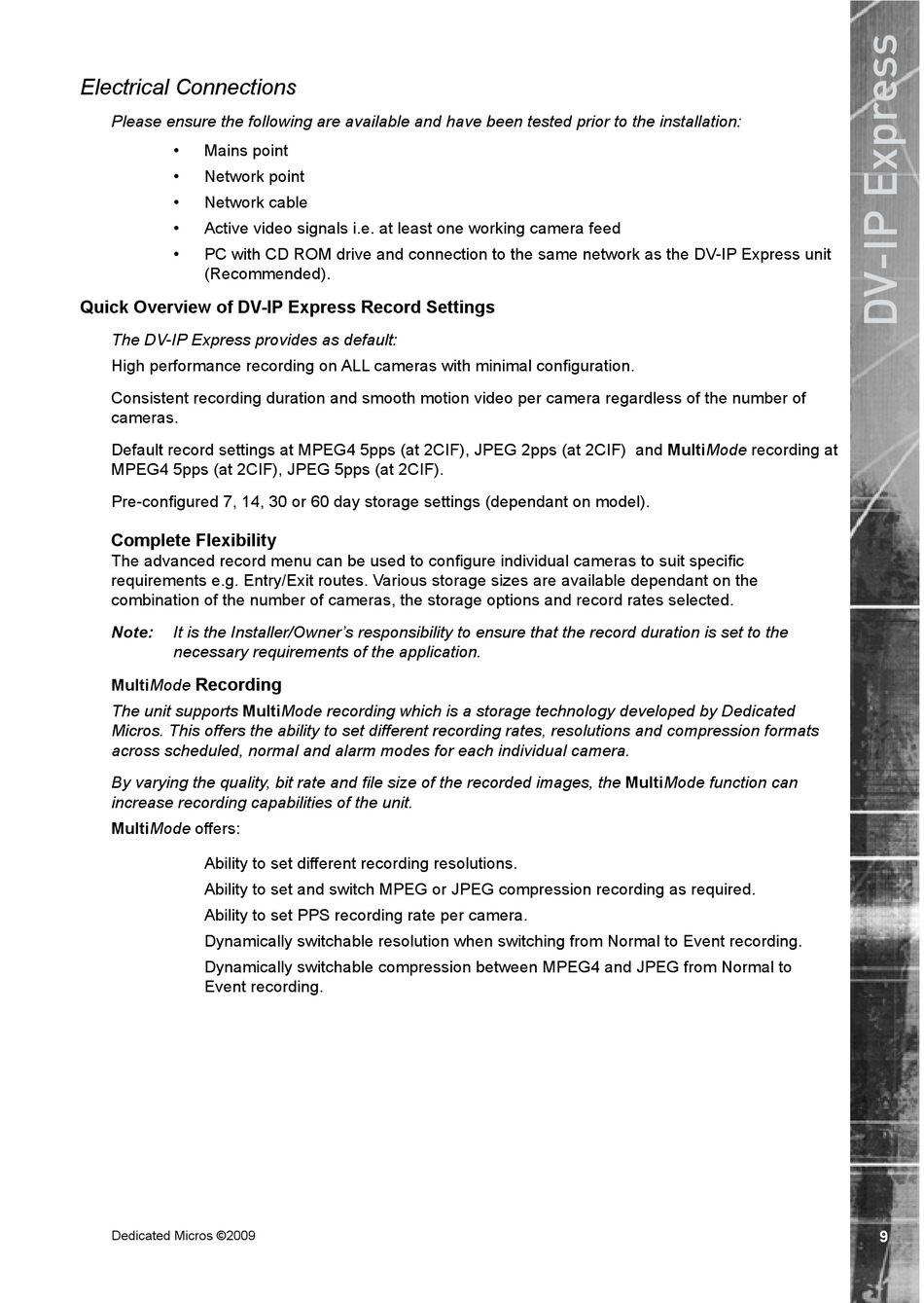

Electrical Connections

Please ensure the following are available and have been tested prior to the installation:
•� Mains point
• Network point
• Network cable
• �cti�e �ideo signals i.e. at least one working camera feed
• �C with CD RO� dri�e and connection to the same network as the D�-�� ��press unit
(Recommended).
Quick Overview of DV-IP Express Record Settings
The DV-IP Express provides as default:
High performance recording on ��� cameras with minimal configuration.
Consistent recording duration and smooth motion �ideo per camera regardless of the number of
cameras.
Default record settings at MPEG4 5pps (at 2CIF), JPEG 2pps (at 2CIF) and MultiMode recording at
���G4 5pps (at 2C�F), J��G 5pps (at 2C�F).
�re-configured 7, 14, 30 or 60 day storage settings (dependant on model).

Complete Flexibility

The ad�anced record menu can be used to configure indi�idual cameras to suit specific
requirements e.g. �ntry���it routes. �arious storage sizes are a�ailable dependant on the
combination of the number of cameras, the storage options and record rates selected.
Note: It is the Installer/Owner's responsibility to ensure that the record duration is set to the
necessary requirements of the application.
Recording
MultiMode
The unit supports MultiMode recording which is a storage technology developed by Dedicated
Micros. This offers the ability to set different recording rates, resolutions and compression formats
across scheduled, normal and alarm modes for each individual camera.
By varying the quality, bit rate and file size of the recorded images, the MultiMode function can
increase recording capabilities of the unit.
MultiMode offers:
�bility to set different recording resolutions.
�bility to set and switch ���G or J��G compression recording as required.
�bility to set ��S recording rate per camera.
Dynamically switchable resolution when switching from Normal to ��ent recording.
Dynamically switchable compression between ���G4 and J��G from Normal to
��ent recording.
