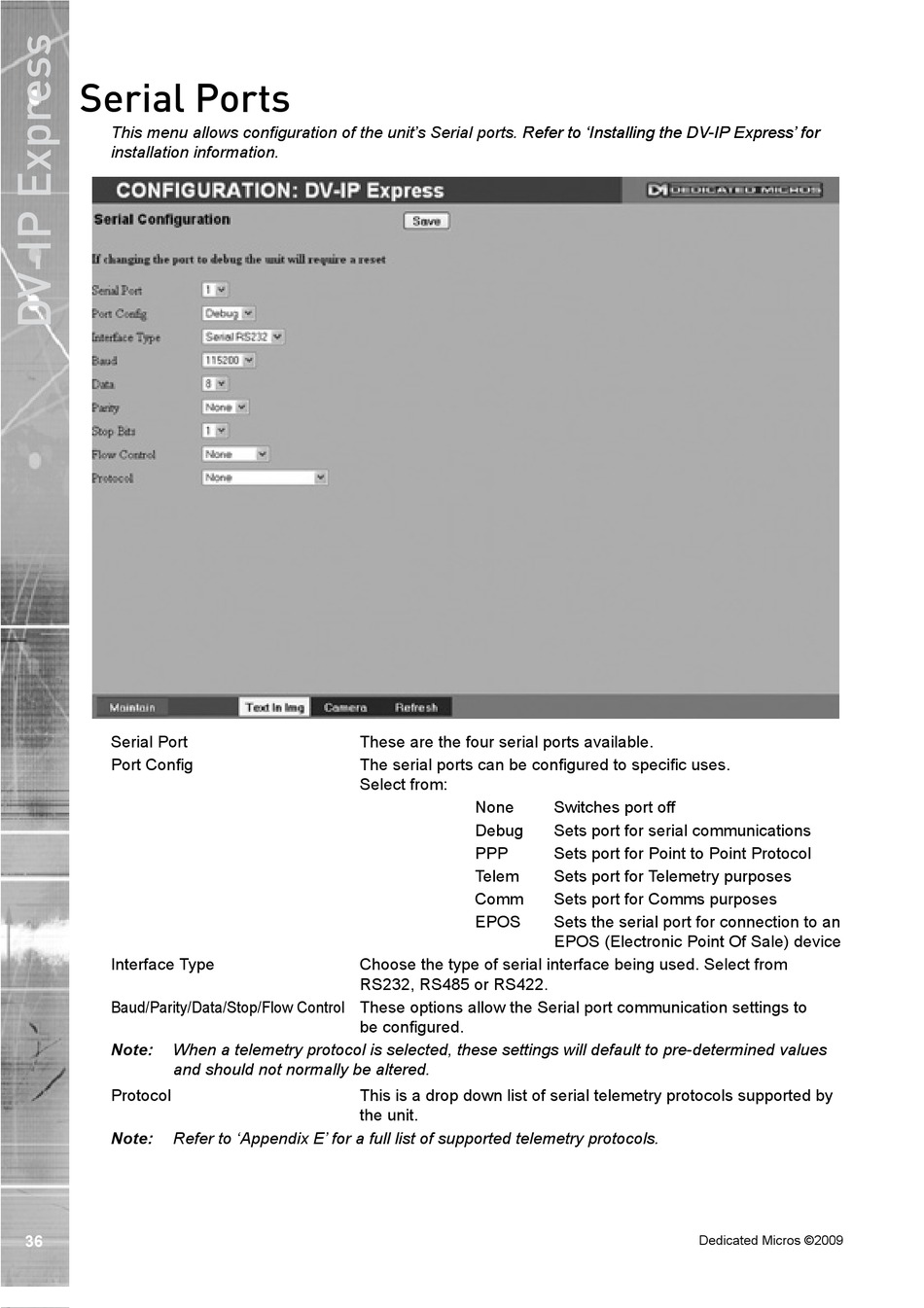

Serial Ports

This menu allows configuration of the unit's Serial ports. Refer to 'Installing the DV-IP Express' for

installation information.

Serial �ort

�ort Config

�nterface Type

�aud��arity�Data�Stop�Flow Control These options allow the Serial port communication settings to

Note: When a telemetry protocol is selected, these settings will default to pre-determined values

and should not normally be altered.

�rotocol

Note: Refer to 'Appendix E' for a full list of supported telemetry protocols.

Refer to 'Installing the DV-IP Express' for

These are the four serial ports a�ailable.

The serial ports can be configured to specific uses.

Select from:

None

Debug

PPP

Telem

Comm

EP�S

Choose the type of serial interface being used. Select from

RS232, RS485 or RS422.

be configured.

This is a drop down list of serial telemetry protocols supported by

the unit.

Switches port off

Sets port for serial communications

Sets port for Point to Point Protocol

Sets port for Telemetry purposes

Sets port for Comms purposes

Sets the serial port for connection to an

EP�S (Electronic Point �f Sale) device
