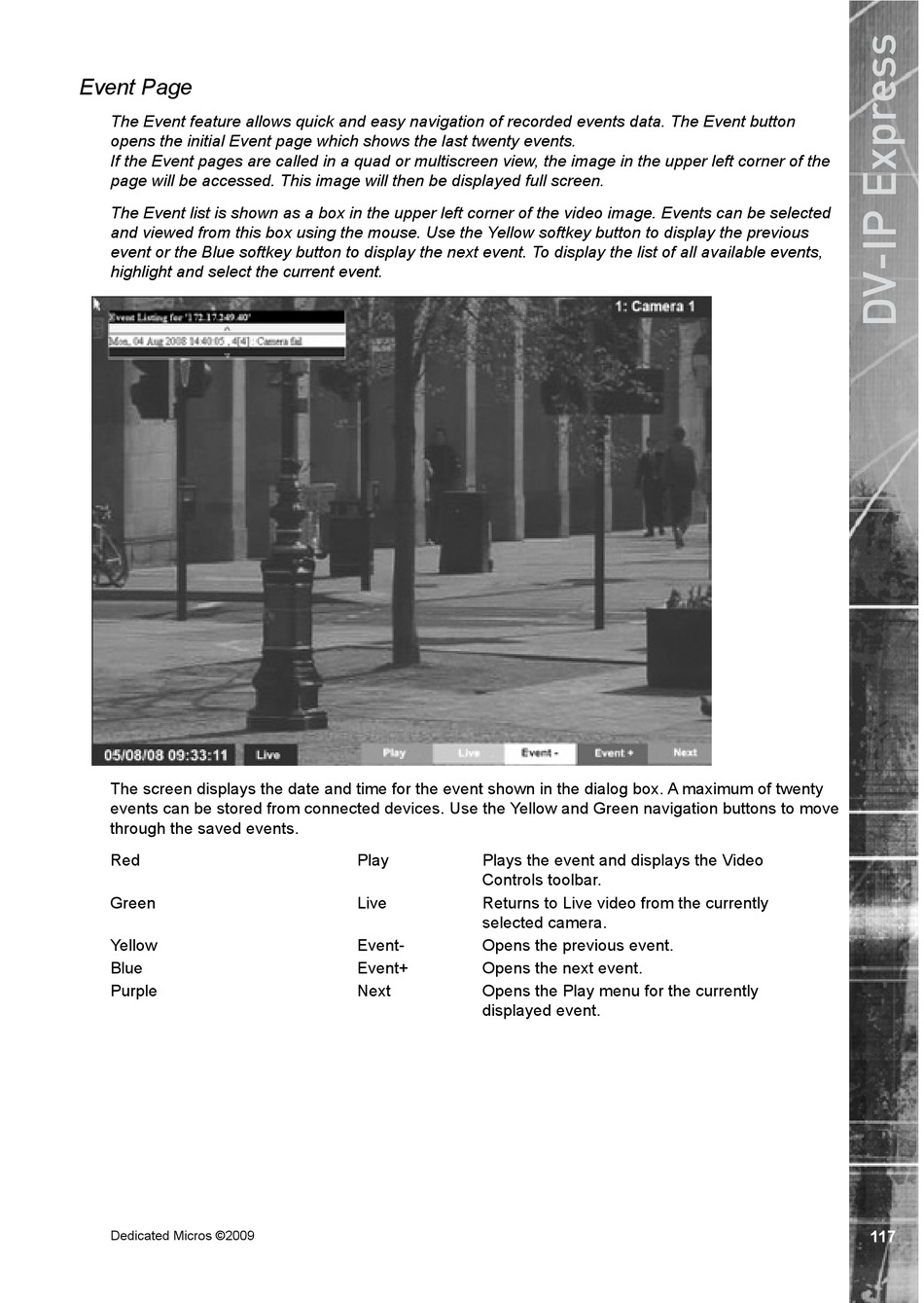

Event Page
The Event feature allows quick and easy navigation of recorded events data. The Event button
opens the initial Event page which shows the last twenty events.
If the Event pages are called in a quad or multiscreen view, the image in the upper left corner of the
page will be accessed. This image will then be displayed full screen.
The Event list is shown as a box in the upper left corner of the video image. Events can be selected
and viewed from this box using the mouse. Use the Yellow softkey button to display the previous
event or the Blue softkey button to display the next event. To display the list of all available events,
highlight and select the current event.
The screen displays the date and time for the e�ent shown in the dialog bo�. � ma�imum of twenty
e�ents can be stored from connected de�ices. Use the ��ellow and Green na�igation buttons to mo�e
through the sa�ed e�ents.
Red
Green
��ellow
�lue
Purple
Dedicated Micros ©2009
Play Plays the event and displays the Video
Controls toolbar.
Live Returns to Live video from the currently
selected camera.
��ent- Opens the pre�ious e�ent.
��ent+ Opens the ne�t e�ent.
Next �pens the Play menu for the currently
displayed e�ent.
