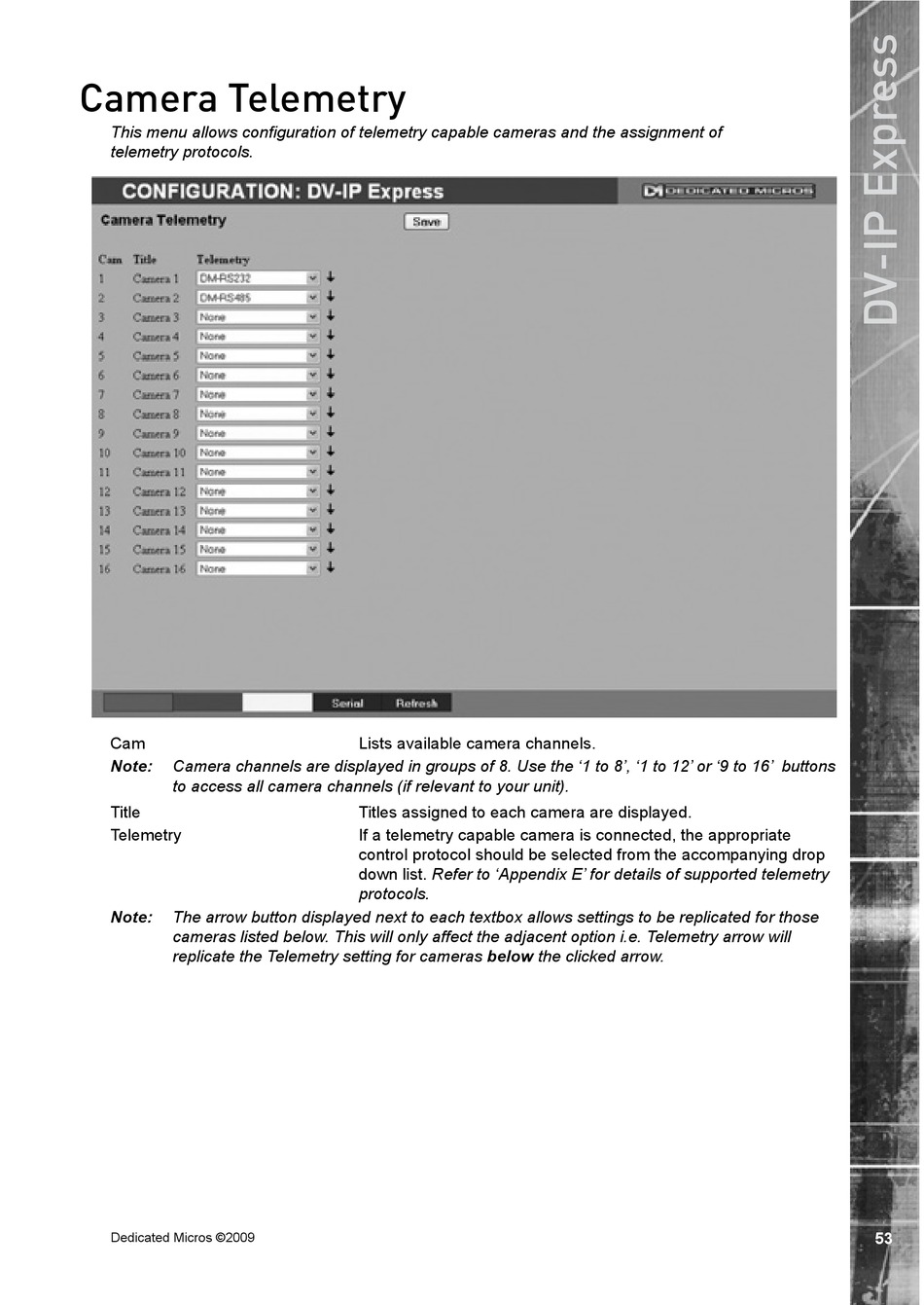

Camera Telemetry

This menu allows configuration of telemetry capable cameras and the assignment of
telemetry protocols.
Cam
Note: Camera channels are displayed in groups of 8. Use the '1 to 8', '1 to 12' or '9 to 16' buttons
to access all camera channels (if relevant to your unit).
Title
Telemetry
Note: The arrow button displayed next to each textbox allows settings to be replicated for those
cameras listed below. This will only affect the adjacent option i.e. Telemetry arrow will
replicate the Telemetry setting for cameras below the clicked arrow.
Dedicated Micros ©2009
�ists a�ailable camera channels.
Titles assigned to each camera are displayed.
�f a telemetry capable camera is connected, the appropriate
control protocol should be selected from the accompanying drop
down list. Refer to 'Appendix E' for details of supported telemetry
protocols.
