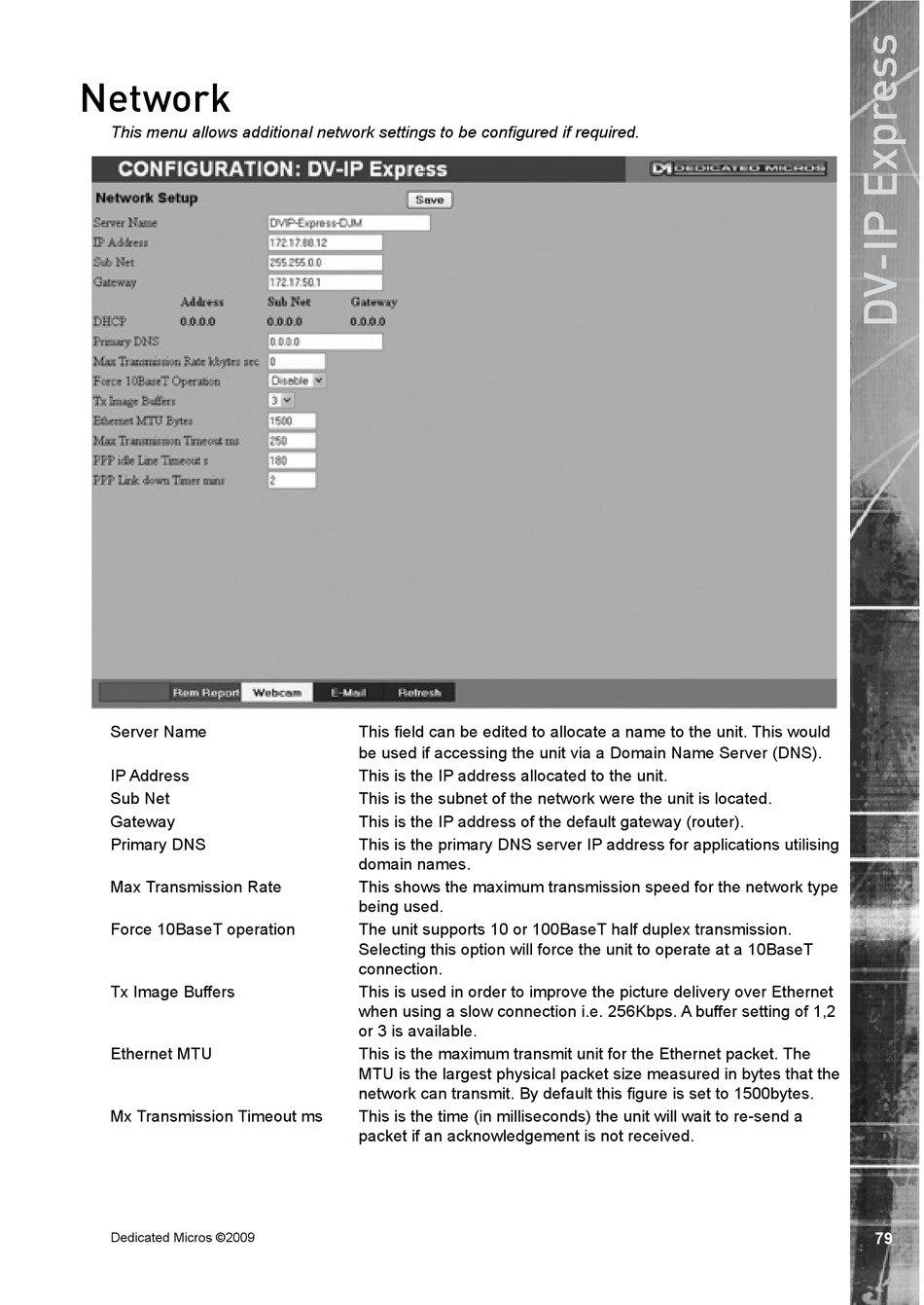

Network
This menu allows additional network settings to be configured if required.
Server Name
IP Address
Sub Net
Gateway
Primary DNS
�a� Transmission Rate
Force 10�aseT operation
Tx Image Buffers
�thernet �TU
�� Transmission Timeout ms
Dedicated Micros ©2009
This field can be edited to allocate a name to the unit. This would
be used if accessing the unit �ia a Domain Name Ser�er (DNS).
This is the �� address allocated to the unit.
This is the subnet of the network were the unit is located.
This is the �� address of the default gateway (router).
This is the primary DNS server IP address for applications utilising
domain names.
This shows the ma�imum transmission speed for the network type
being used.
The unit supports 10 or 100�aseT half duple� transmission.
Selecting this option will force the unit to operate at a 10�aseT
connection.
This is used in order to improve the picture delivery over Ethernet
when using a slow connection i.e. 256�bps. � buffer setting of 1,2
or 3 is a�ailable.
This is the ma�imum transmit unit for the �thernet packet. The
�TU is the largest physical packet size measured in bytes that the
network can transmit. �y default this figure is set to 1500bytes.
This is the time (in milliseconds) the unit will wait to re-send a
packet if an acknowledgement is not recei�ed.
