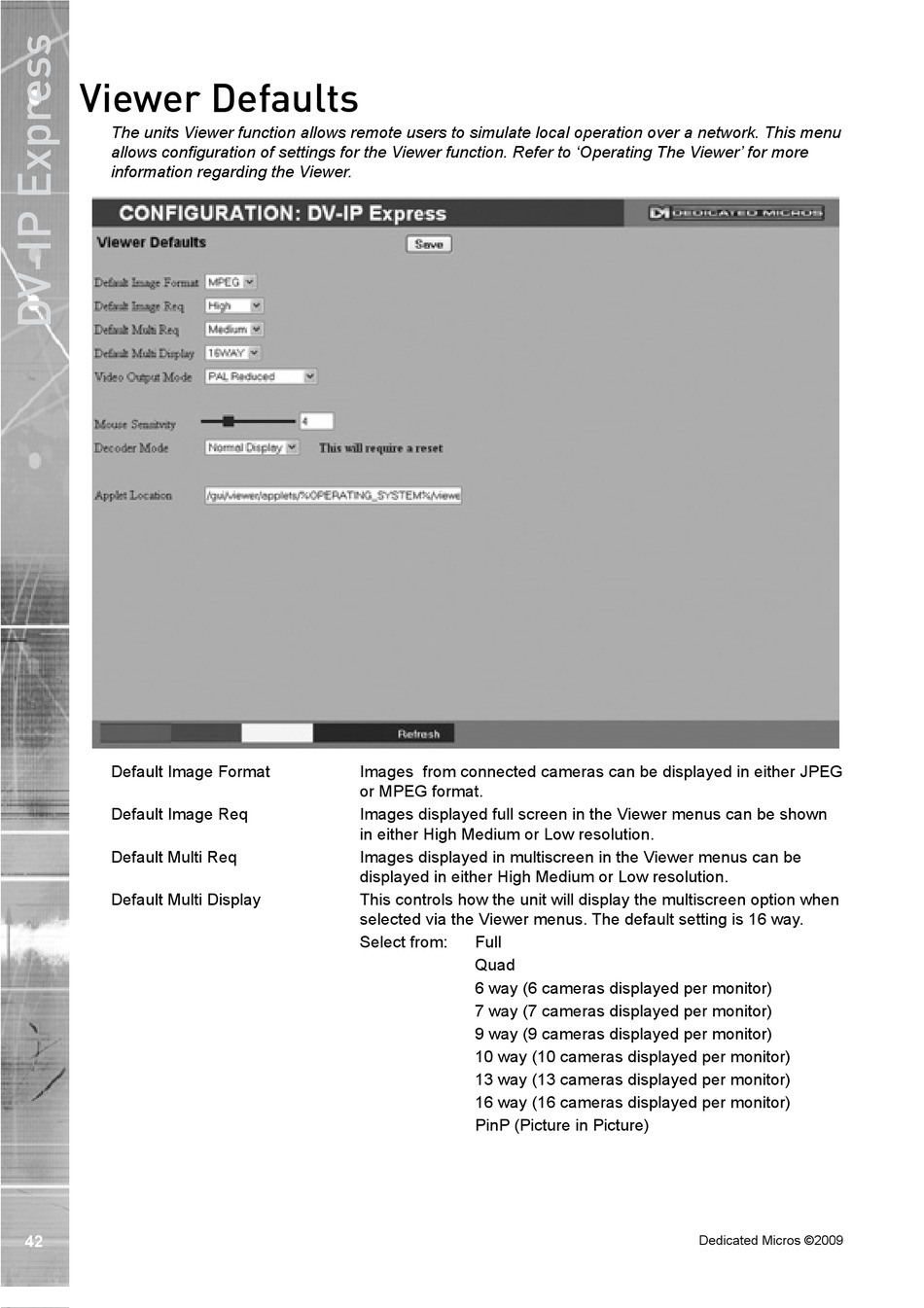

Viewer Defaults

The units Viewer function allows remote users to simulate local operation over a network. This menu
allows configuration of settings for the Viewer function. Refer to 'Operating The Viewer' for more
information regarding the Viewer.
Default �mage Format
Default �mage Req
Default �ulti Req
Default �ulti Display

�mages from connected cameras can be displayed in either J��G
or ���G format.
�mages displayed full screen in the �iewer menus can be shown
in either High �edium or �ow resolution.
�mages displayed in multiscreen in the �iewer menus can be
displayed in either High �edium or �ow resolution.
This controls how the unit will display the multiscreen option when
selected �ia the �iewer menus. The default setting is 16 way.
Select from: Full
Quad
6 way (6 cameras displayed per monitor)
7 way (7 cameras displayed per monitor)
9 way (9 cameras displayed per monitor)
10 way (10 cameras displayed per monitor)
13 way (13 cameras displayed per monitor)
16 way (16 cameras displayed per monitor)
PinP (Picture in Picture)
