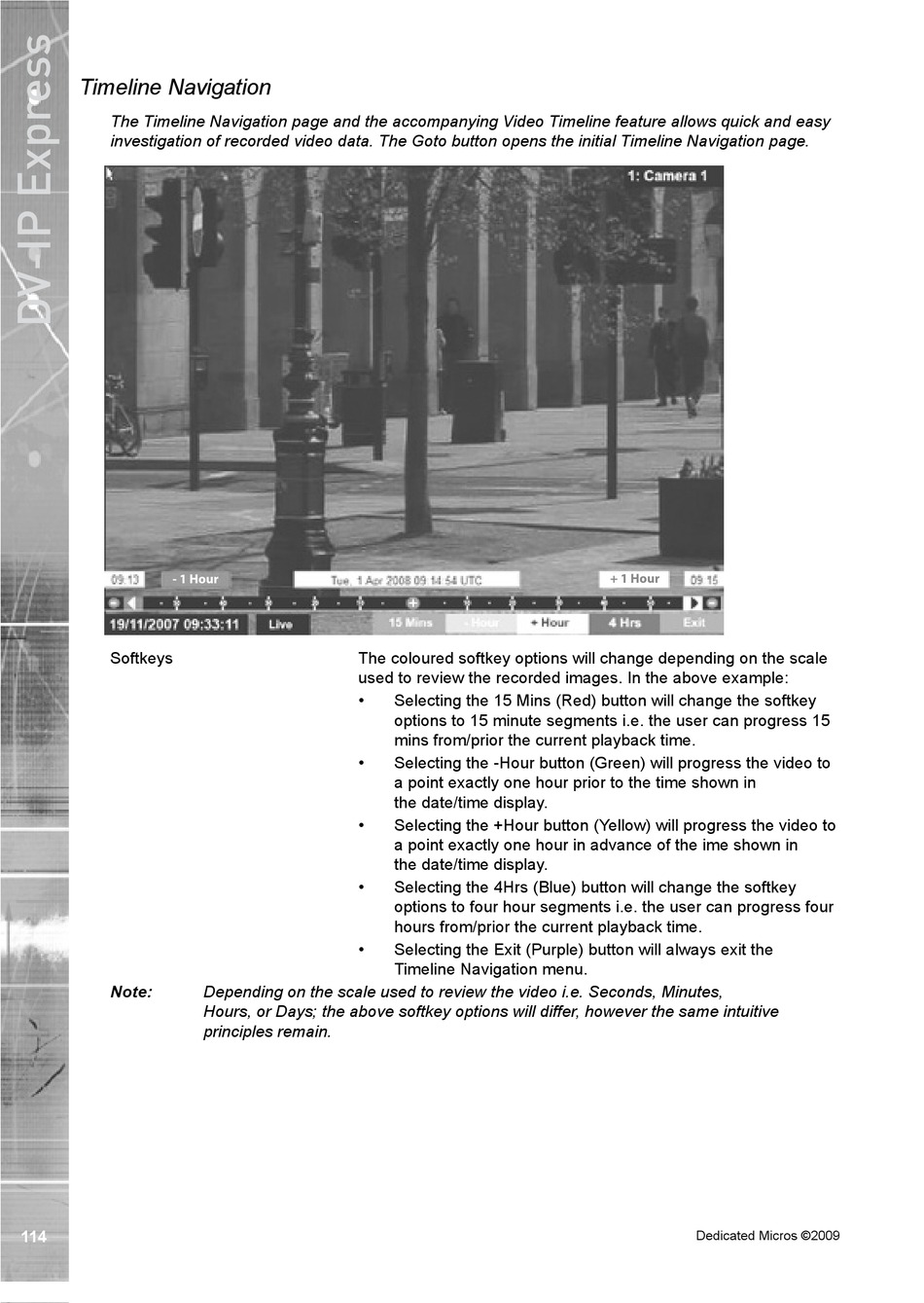

Timeline Navigation
The Timeline Navigation page and the accompanying Video Timeline feature allows quick and easy
investigation of recorded video data. The Goto button opens the initial Timeline Navigation page.
Softkeys
Note:
11
The coloured softkey options will change depending on the scale
used to re�iew the recorded images. �n the abo�e e�ample:
•
•
•
•
•
Depending on the scale used to review the video i.e. Seconds, Minutes,
Hours, or Days; the above softkey options will differ, however the same intuitive
principles remain.
Selecting the 15 �ins (Red) button will change the softkey
options to 15 minute segments i.e. the user can progress 15
mins from�prior the current playback time.
Selecting the -Hour button (Green) will progress the �ideo to
a point e�actly one hour prior to the time shown in
the date�time display.
Selecting the +Hour button (��ellow) will progress the �ideo to
a point e�actly one hour in ad�ance of the ime shown in
the date�time display.
Selecting the 4Hrs (�lue) button will change the softkey
options to four hour segments i.e. the user can progress four
hours from�prior the current playback time.
Selecting the ��it (�urple) button will always e�it the
Timeline Na�igation menu.
