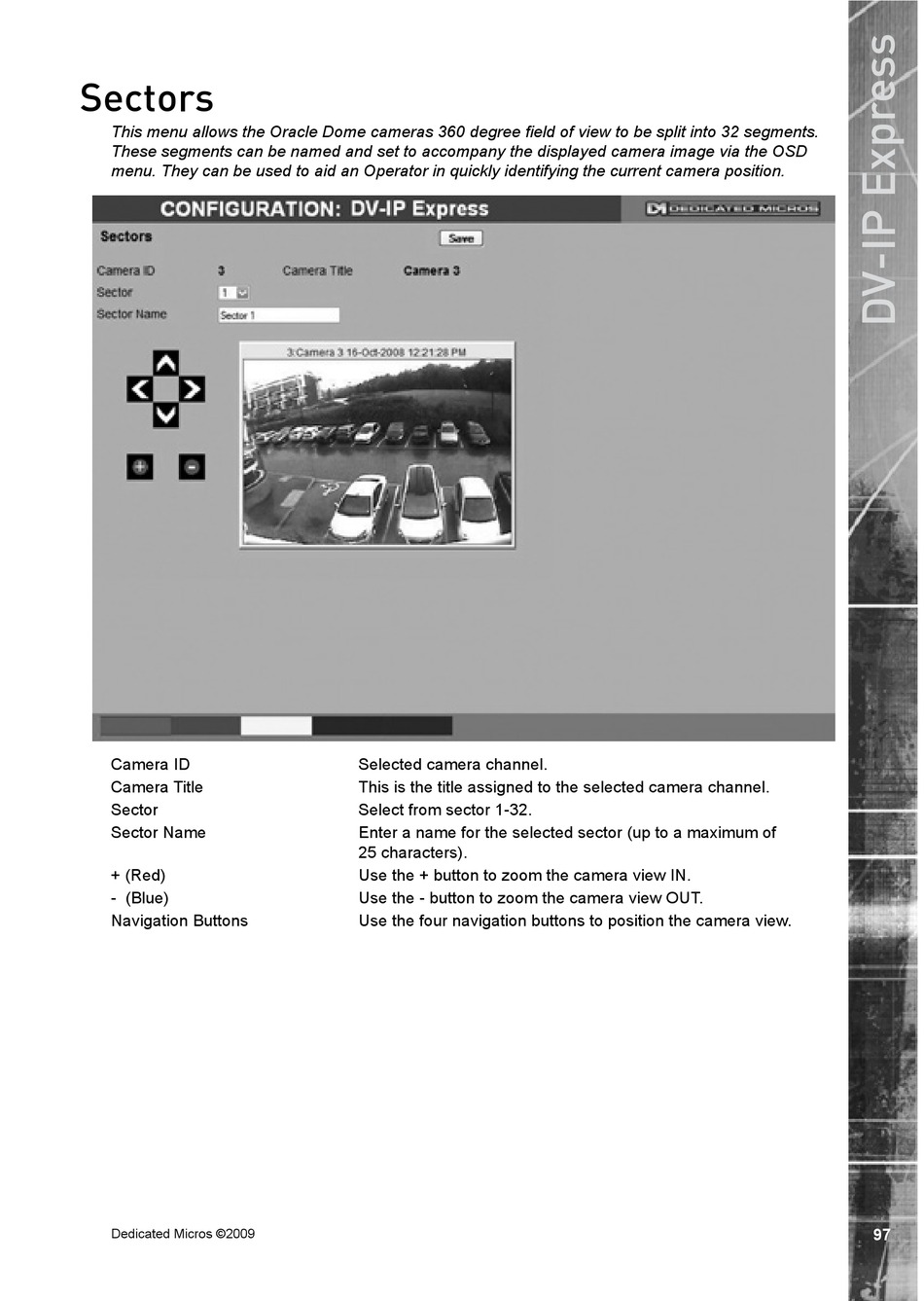

Sectors
This menu allows the Oracle Dome cameras 360 degree field of view to be split into 32 segments.
These segments can be named and set to accompany the displayed camera image via the OSD
menu. They can be used to aid an Operator in quickly identifying the current camera position.
Camera �D
Camera Title
Sector
Sector Name
+ (Red)
- (�lue)
Na�igation �uttons
Dedicated Micros ©2009
Selected camera channel.
This is the title assigned to the selected camera channel.
Select from sector 1-32.
Enter a name for the selected sector (up to a maximum of
25 characters).
Use the + button to zoom the camera �iew �N.
Use the - button to zoom the camera �iew OUT.
Use the four na�igation buttons to position the camera �iew.
