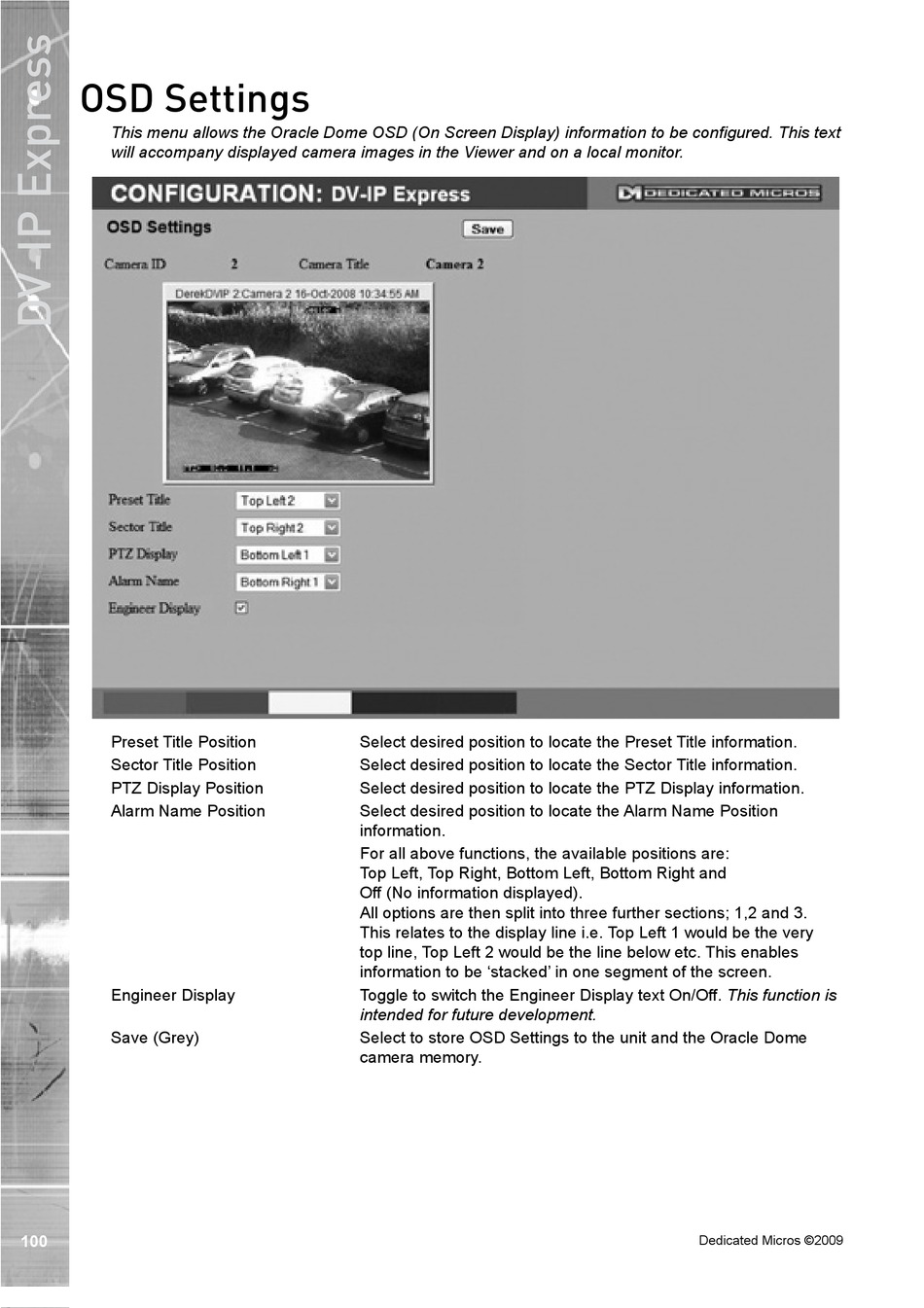

OSD Settings

This menu allows the Oracle Dome OSD �On Screen Display) information to be configured. This text
will accompany displayed camera images in the Viewer and on a local monitor.
�reset Title �osition
Sector Title �osition
�TZ Display �osition
Alarm Name Position
�ngineer Display
Save (Grey)
100
Select desired position to locate the �reset Title information.
Select desired position to locate the Sector Title information.
Select desired position to locate the �TZ Display information.
Select desired position to locate the Alarm Name Position
information.
For all abo�e functions, the a�ailable positions are:
Top Left, Top Right, Bottom Left, Bottom Right and
Off (No information displayed).
�ll options are then split into three further sections; 1,2 and 3.
This relates to the display line i.e. Top �eft 1 would be the �ery
top line, Top �eft 2 would be the line below etc. This enables
information to be 'stacked' in one segment of the screen.
Toggle to switch the �ngineer Display te�t On�Off. This function is
intended for future development.
Select to store �SD Settings to the unit and the �racle Dome
camera memory.
