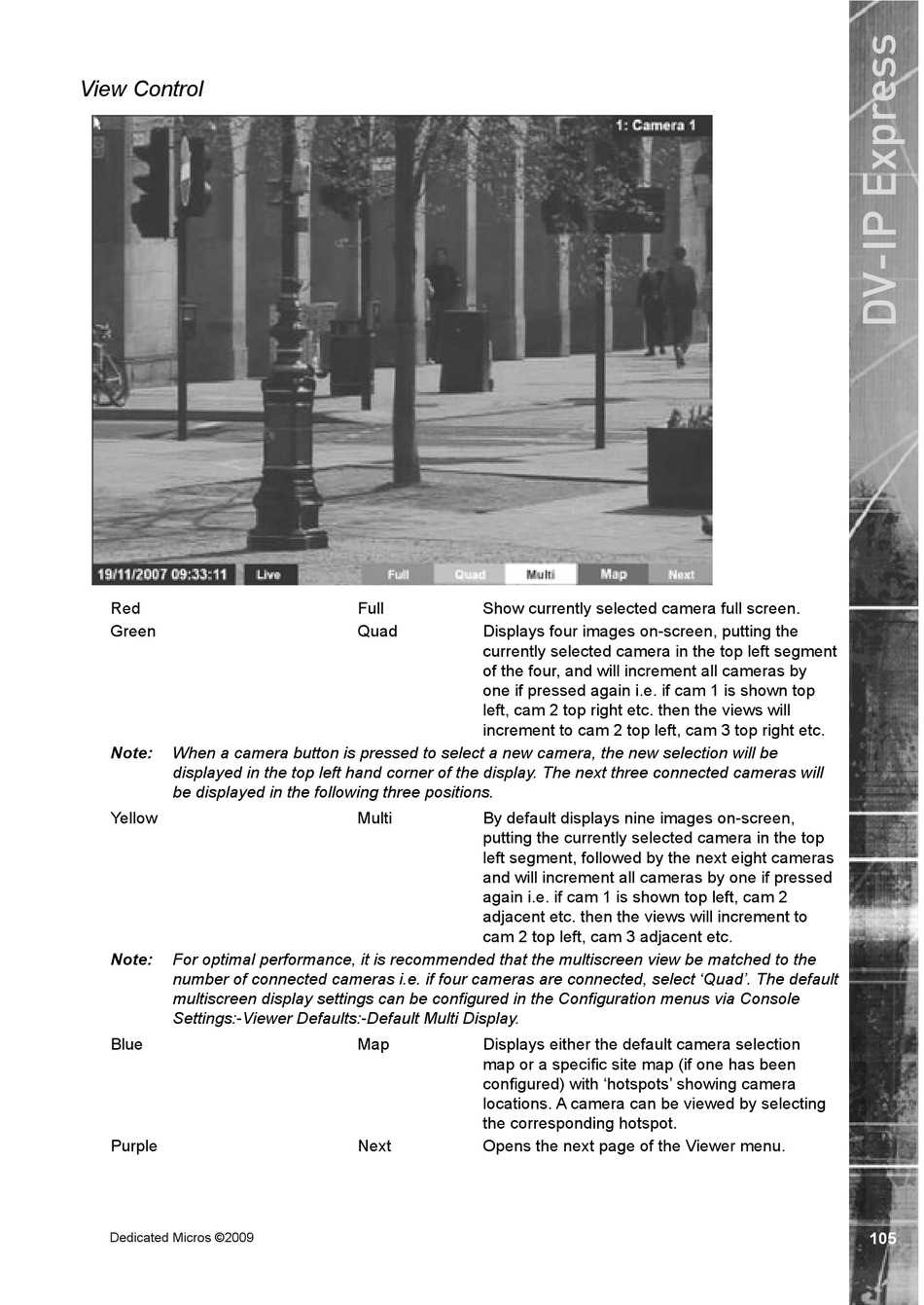

View Control

Red
Green
Note: When a camera button is pressed to select a new camera, the new selection will be
displayed in the top left hand corner of the display. The next three connected cameras will
be displayed in the following three positions.
��ellow
Note: For optimal performance, it is recommended that the multiscreen view be matched to the
number of connected cameras i.e. if four cameras are connected, select 'Quad'. The default
multiscreen display settings can be configured in the Configuration menus via Console
Settings:-Viewer Defaults:-Default Multi Display.
Blue
�urple
Dedicated Micros ©2009
Full Show currently selected camera full screen.
Quad Displays four images on-screen, putting the
currently selected camera in the top left segment
of the four, and will increment all cameras by
one if pressed again i.e. if cam 1 is shown top
left, cam 2 top right etc. then the �iews will
increment to cam 2 top left, cam 3 top right etc.
�ulti �y default displays nine images on-screen,
putting the currently selected camera in the top
left segment, followed by the ne�t eight cameras
and will increment all cameras by one if pressed
again i.e. if cam 1 is shown top left, cam 2
adjacent etc. then the �iews will increment to
cam 2 top left, cam 3 adjacent etc.
Map Displays either the default camera selection
map or a specific site map (if one has been
configured) with 'hotspots' showing camera
locations. � camera can be �iewed by selecting
the corresponding hotspot.
Ne�t Opens the ne�t page of the �iewer menu.
10
