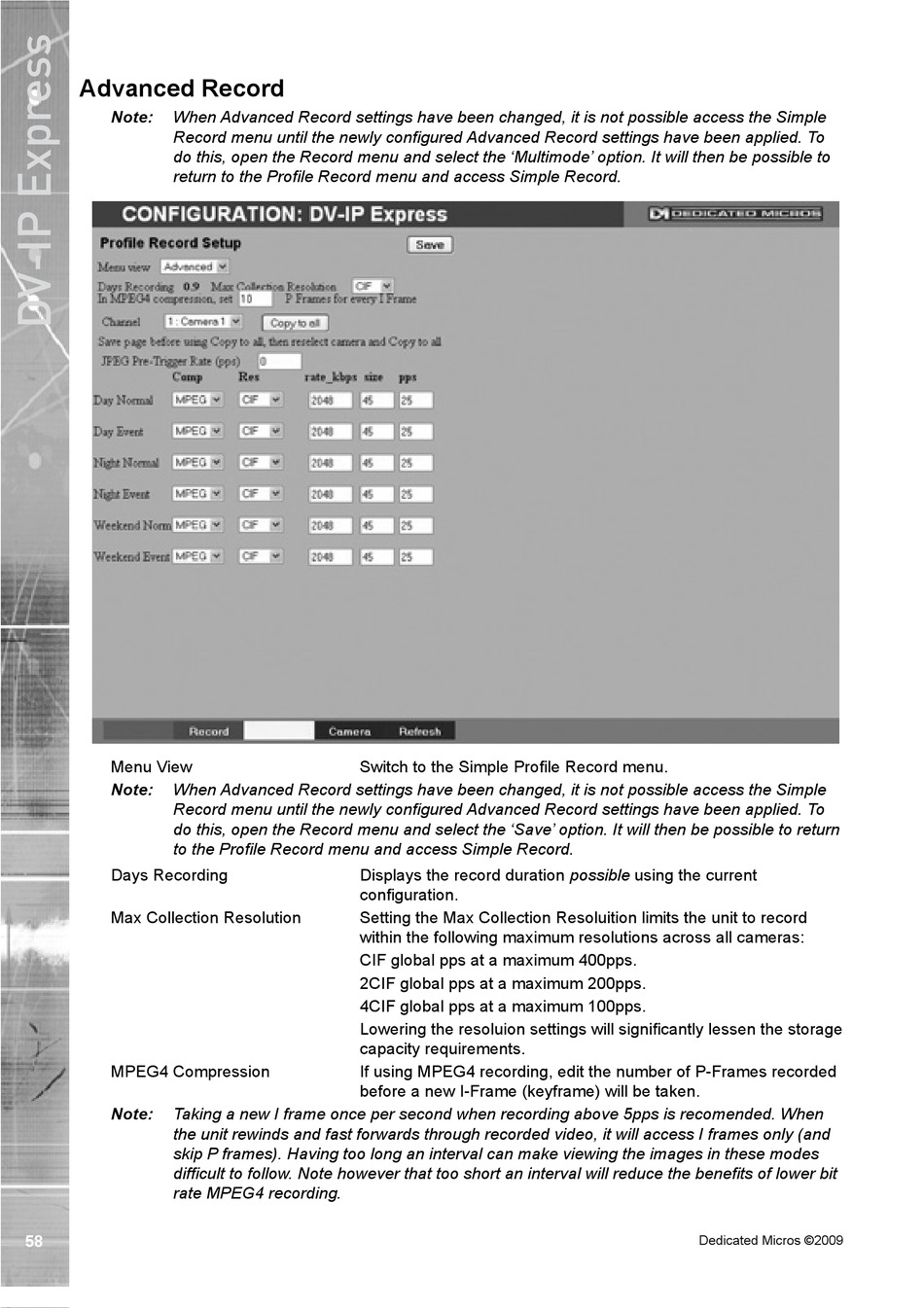

Advanced Record

Note: When Advanced Record settings have been changed, it is not possible access the Simple
Record menu until the newly configured Advanced Record settings have been applied. To
do this, open the Record menu and select the 'Multimode' option. It will then be possible to
return to the Profile Record menu and access Simple Record.
�enu �iew
Note: When Advanced Record settings have been changed, it is not possible access the Simple
Record menu until the newly configured Advanced Record settings have been applied. To
do this, open the Record menu and select the 'Save' option. It will then be possible to return
to the Profile Record menu and access Simple Record.
Days Recording
Max Collection Resolution
���G4 Compression
Note: Taking a new I frame once per second when recording above 5pps is recomended. When
the unit rewinds and fast forwards through recorded video, it will access I frames only (and
skip P frames). Having too long an interval can make viewing the images in these modes
difficult to follow. Note however that too short an interval will reduce the benefits of lower bit
rate MPEG4 recording.

Switch to the Simple �rofile Record menu.
Displays the record duration possible using the current
configuration.
Setting the Max Collection Resoluition limits the unit to record
within the following ma�imum resolutions across all cameras:
C�F global pps at a ma�imum 400pps.
2C�F global pps at a ma�imum 200pps.
4C�F global pps at a ma�imum 100pps.
�owering the resoluion settings will significantly lessen the storage
capacity requirements.
�f using ���G4 recording, edit the number of �-Frames recorded
before a new �-Frame (keyframe) will be taken.
Dedicated Micros ©2009
