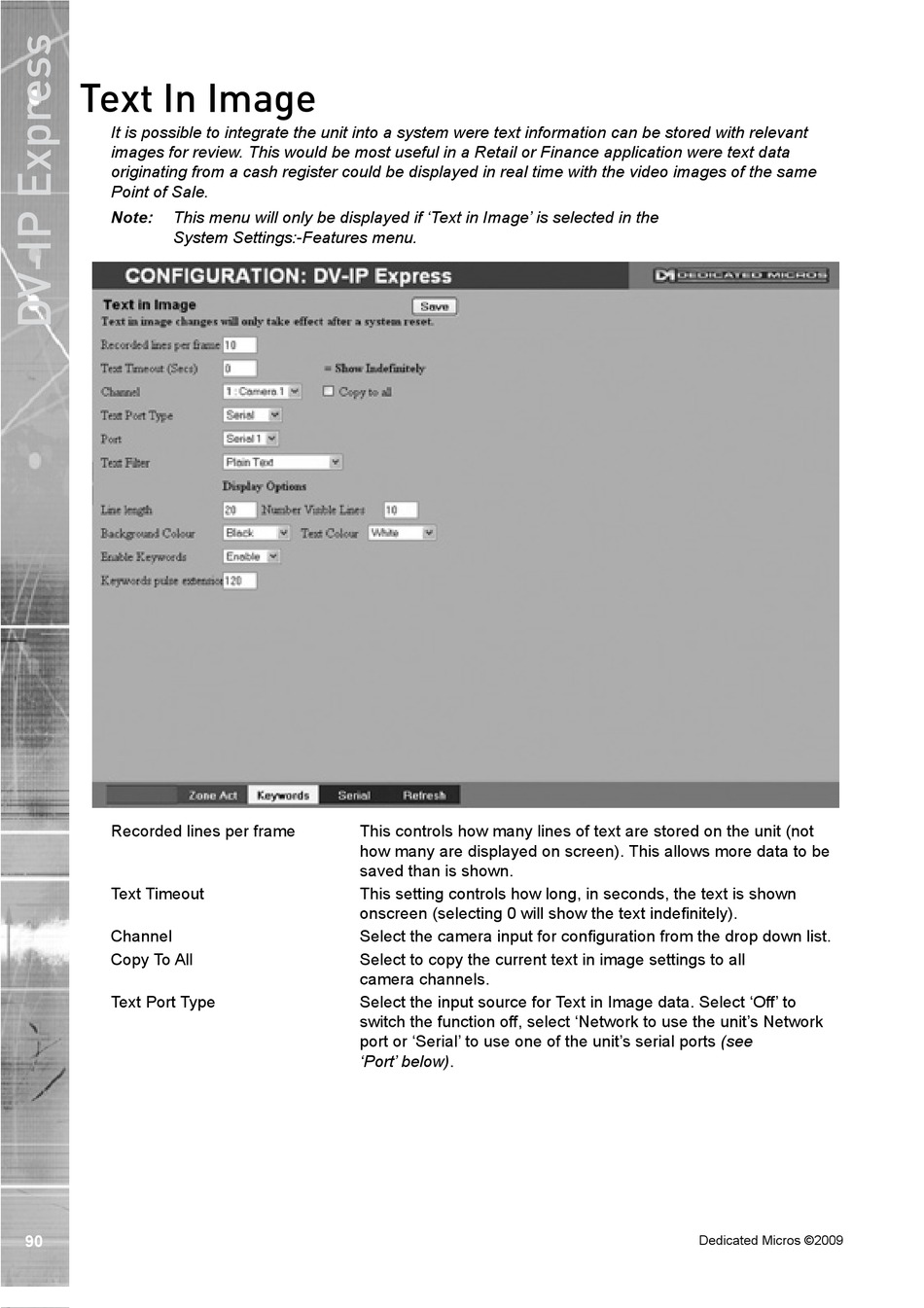

Text In Image

It is possible to integrate the unit into a system were text information can be stored with relevant
images for review. This would be most useful in a Retail or Finance application were text data
originating from a cash register could be displayed in real time with the video images of the same
Point of Sale.
Note: This menu will only be displayed if 'Text in Image' is selected in the
System Settings:-Features menu.
Recorded lines per frame
Te�t Timeout
Channel
Copy To All
Te�t �ort Type
0
This controls how many lines of te�t are stored on the unit (not
how many are displayed on screen). This allows more data to be
sa�ed than is shown.
This setting controls how long, in seconds, the te�t is shown
onscreen (selecting 0 will show the te�t indefinitely).
Select the camera input for configuration from the drop down list.
Select to copy the current text in image settings to all
camera channels.
Select the input source for Te�t in �mage data. Select 'Off' to
switch the function off, select 'Network to use the unit's Network
port or 'Serial' to use one of the unit's serial ports (see
'Port' below).
