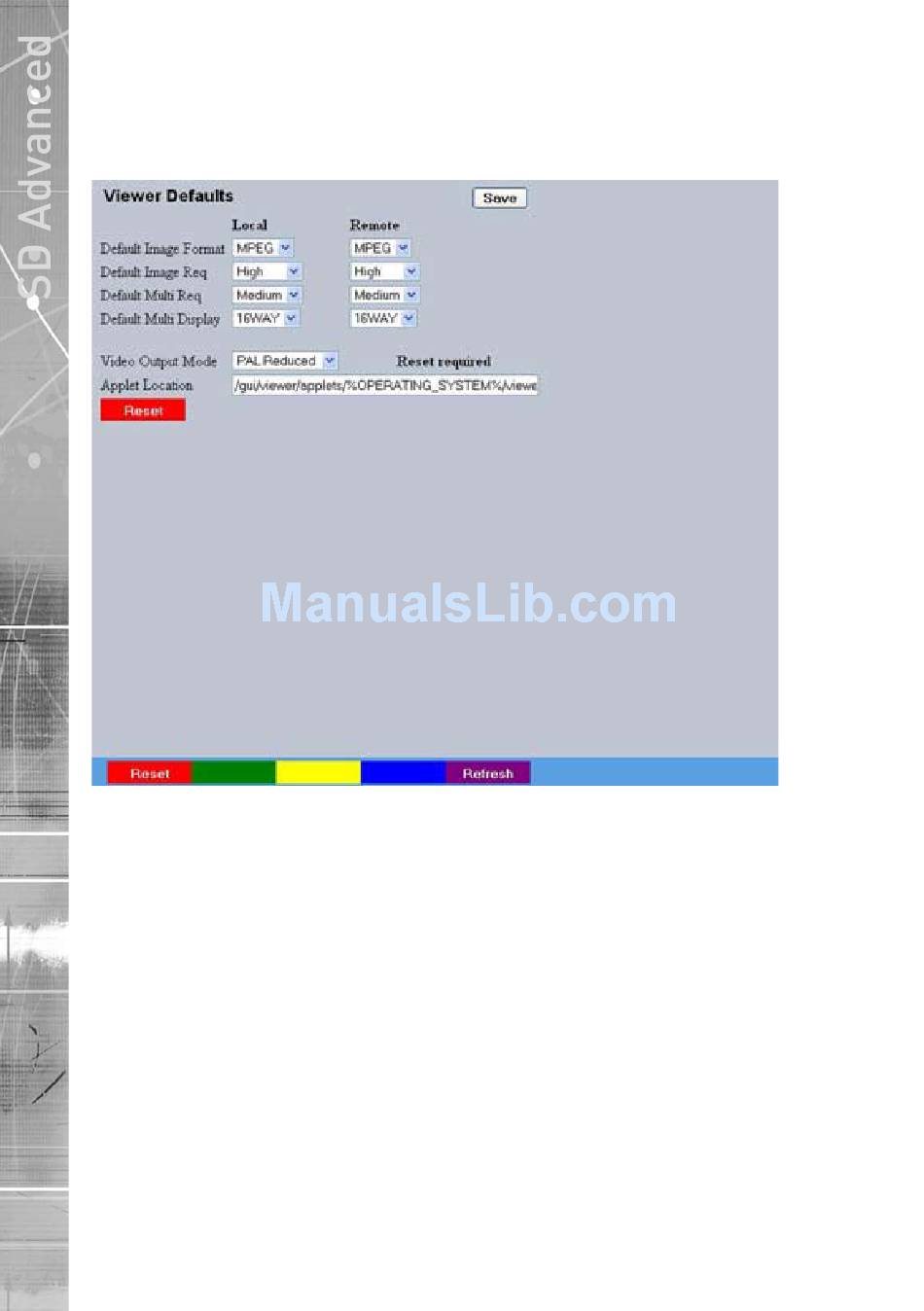

Viewer Defaults

This menu allows configuration of settings for the Viewer function. Refer to 'Operating The Viewer'
for more information regarding this feature.
Default settings can be configured for accessing the Viewer function via a local monitor and also for
accessing remotely via a network connection.
Default Image Format
Default Image Req
Default Multi Req
Default Multi Display

Images from connected cameras can be displayed in either JPEG
or MPEG format.
Images displayed full screen in the Viewer menus can be shown
in either High Medium or Low resolution.
Images displayed in multiscreen in the Viewer menus can be
displayed in either High Medium or Low resolution.
This controls how the unit will display the multiscreen option when
selected via the Viewer menus. The default setting is 16 way.
Select from: Full
Quad
6 way (6 cameras displayed per monitor)
7 way (7 cameras displayed per monitor)
9 way (9 cameras displayed per monitor)
10 way (10 cameras displayed per monitor)
13 way (13 cameras displayed per monitor)
16 way (16 cameras displayed per monitor)
PinP (Picture in Picture)
