6.2.17 How to Replace the Drive Roller
How to detach the drive roller
(1) Detach the right and left side covers (see Subsection 6.1.1 and Subsection 6.1.2).
(2) Detach the front guide (see Subsection 6.1.5 or 6.1.6).
(3) Detach the rear guide (see Subsection 6.1.7).

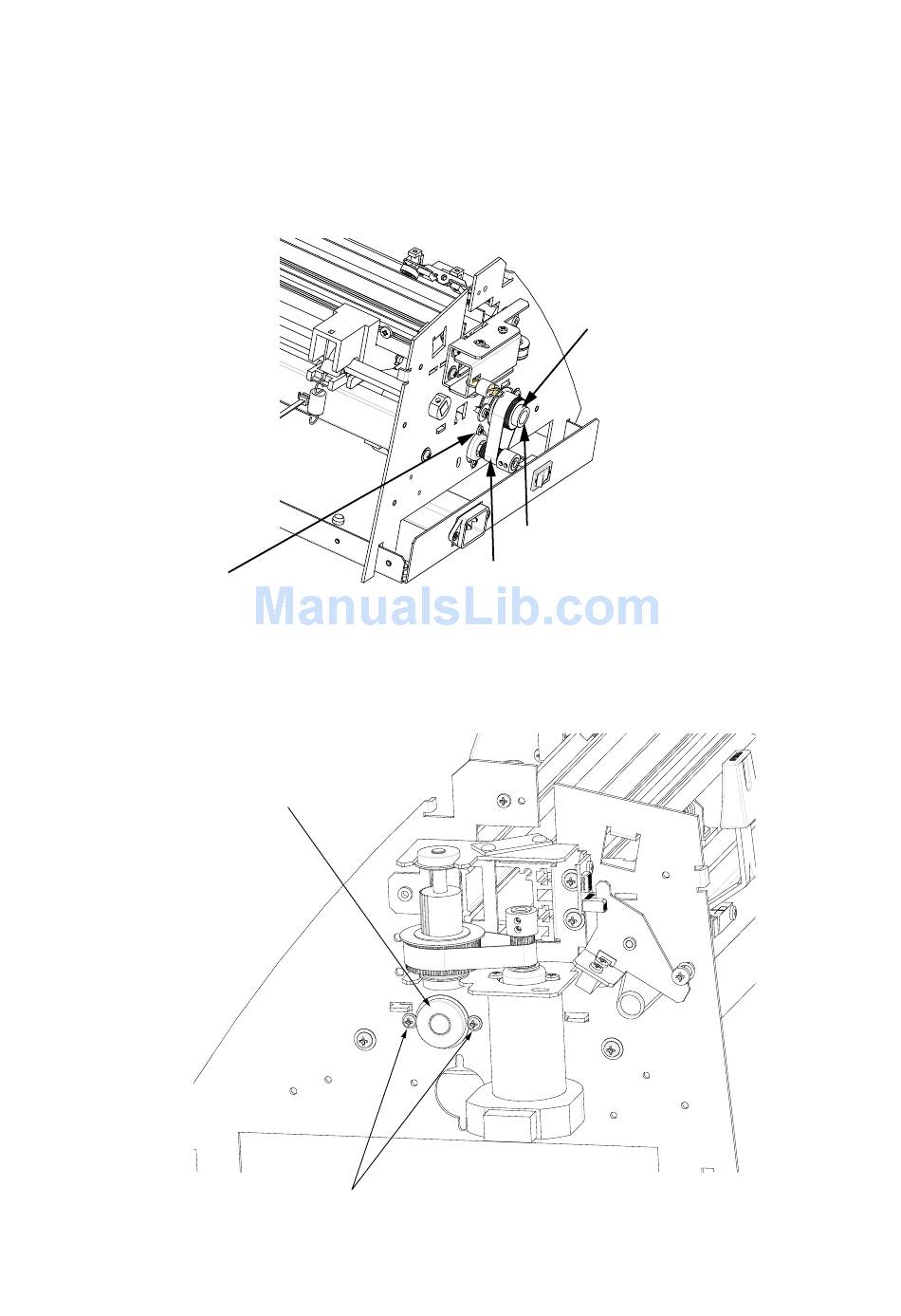

(4) Loosen the two M3L6 binding head screws holding the X-motor.
M3L6 binding head screw
(5) Push up the X-motor from inside the left side plate then remove the X drive belt from the X-drive pulley.
(6) Loosen the two M3L4WP set screws holding the X-drive pulley and detach the X-drive pulley from the
drive roller.
(7) Remove the two M3L6 binding screws holding the X-drive roller bearing with a flange.
X-drive roller bearing
(8) Slide out the X-drive roller from the unit. There is a bearing stopper flange and a bush on the left side
plate; don't miss those parts when removing the X-drive roller.
CE5000-UM-251-9370
X-drive belt
M3L6 binding head screw
6-34
6. DISASSEMBLY AND REASSEMBLY
M3L4WP set screw
X-drive pulley
