Mounting the Intercom
88
Dimensions
A.2 Dimensions

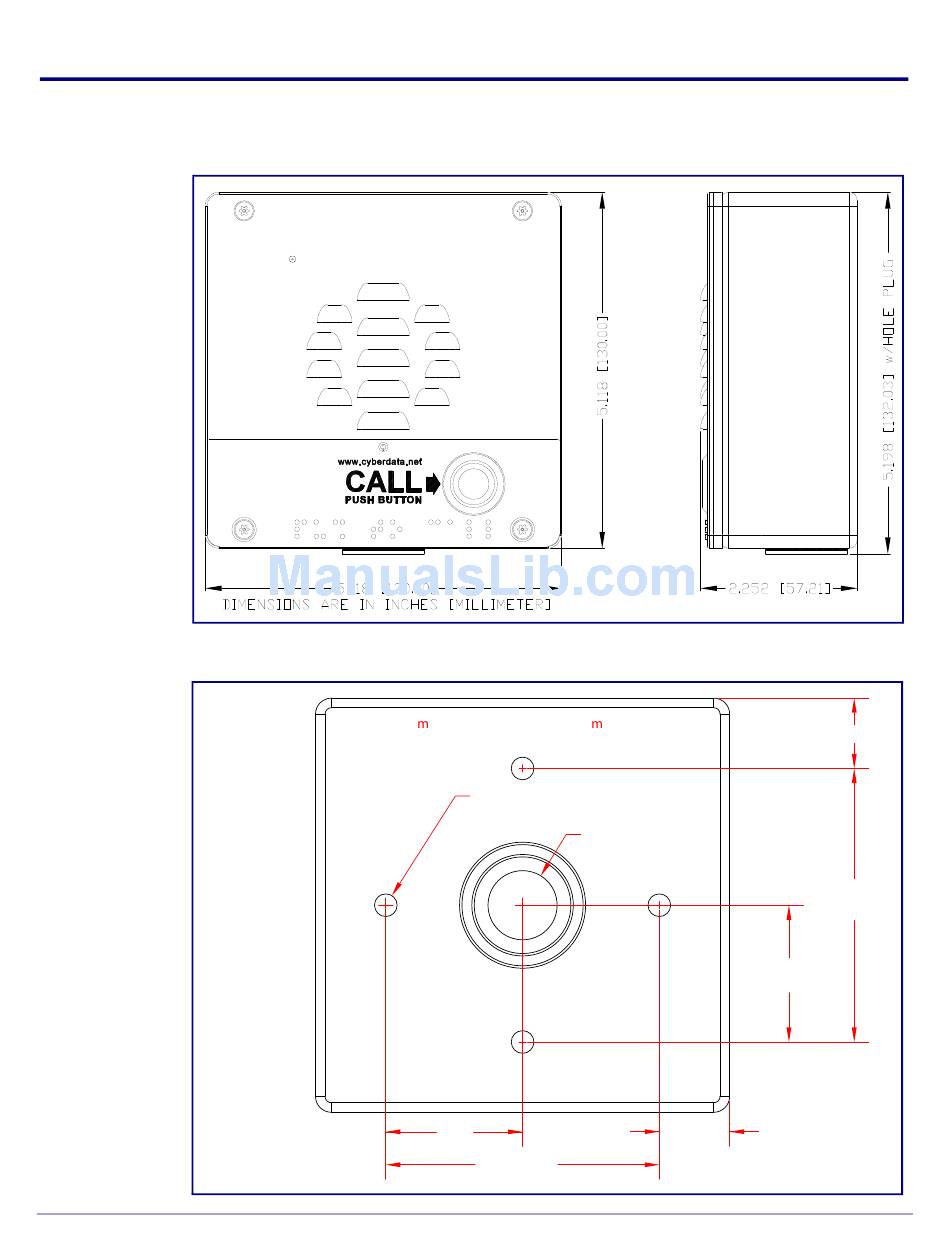

Figure A-1. Unit Dimensions—Front and Side View
Figure A-2. Unit Dimensions—Rear View with Mounting Hole Locations
Di ensions are in Inches [Milli eter]
0.869 [22.07]
ø0.280 [ø7.11]
(4 Places)
ø0.854 [ø21.69]
3.380
[85.85]
1.690
[42.93]
1.690
0.869 [22.07]
[42.93]
3.380 [85.85]
Operations Guide
930796N
CyberData Corporation
