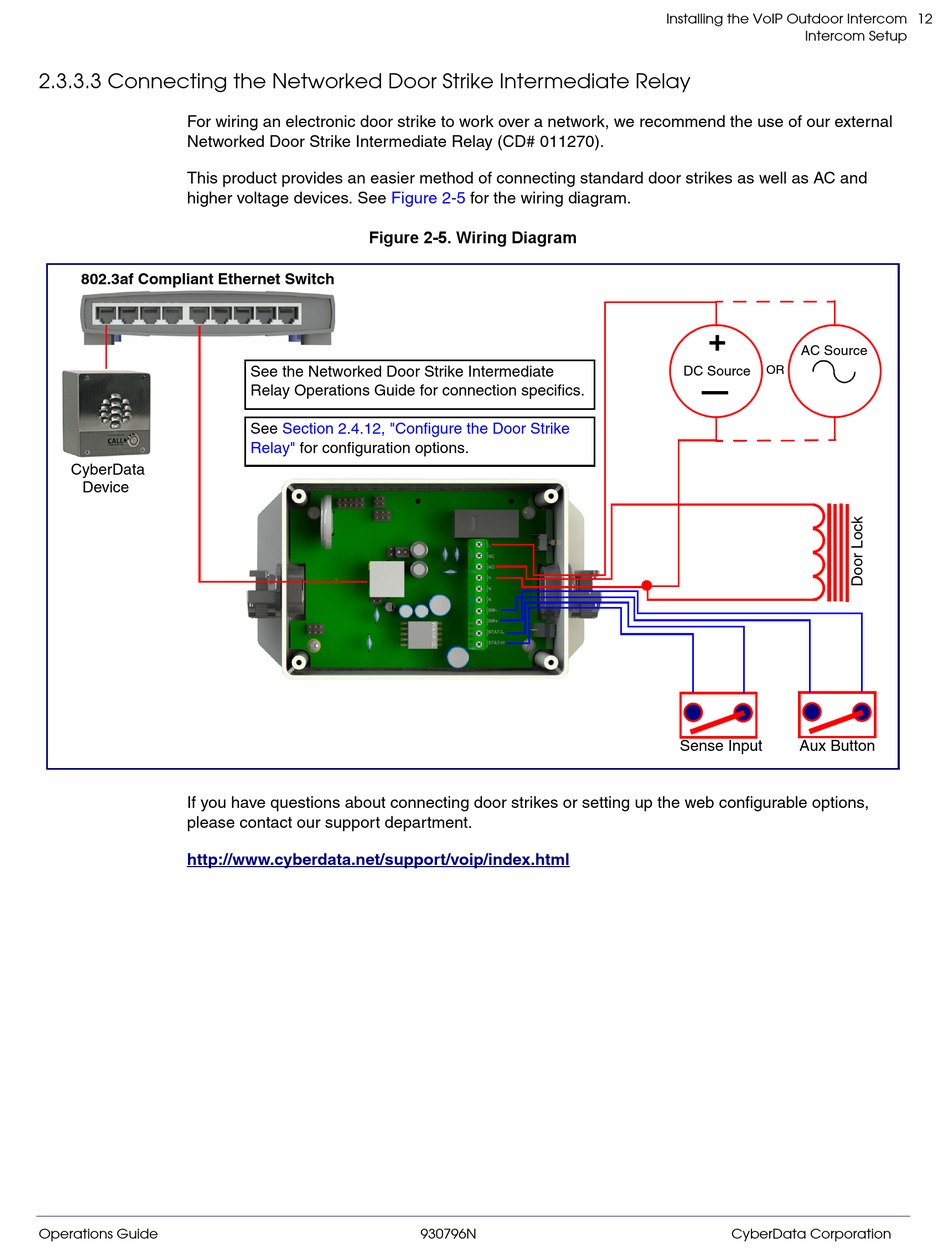

2.3.3.3 Connecting the Networked Door Strike Intermediate Relay
For wiring an electronic door strike to work over a network, we recommend the use of our external
Networked Door Strike Intermediate Relay (CD# 011270).
This product provides an easier method of connecting standard door strikes as well as AC and
higher voltage devices. See
802.3af Compliant Ethernet Switch
CyberData
Device
If you have questions about connecting door strikes or setting up the web configurable options,
please contact our support department.
http://www.cyberdata.net/support/voip/index.html
Operations Guide
Figure 2-5
Figure 2-5. Wiring Diagram
See the Networked Door Strike Intermediate 
Relay Operations Guide for connection specifics.
See Section 2.4.12, "Configure the Door Strike
Relay" for configuration options.
930796N
for the wiring diagram.
Installing the VoIP Outdoor Intercom
Intercom Setup
+
AC Source
DC Source OR
Sense Input Aux Button
